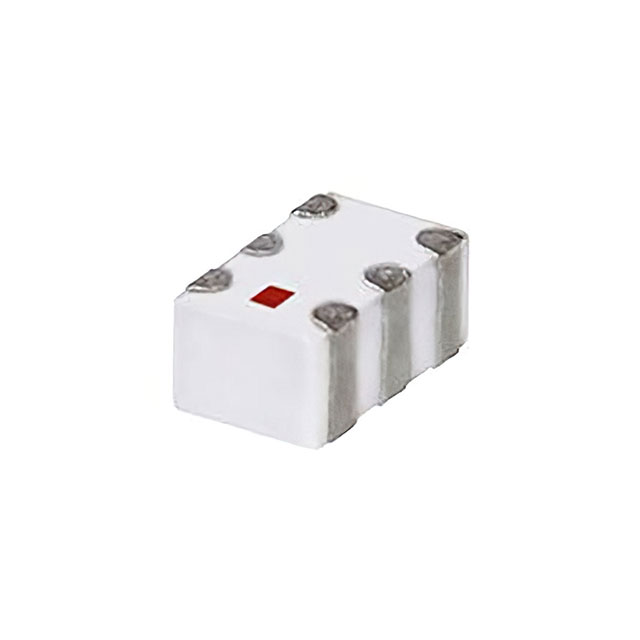

TCW2 Series

Catalog

1:2 LTCC TRANSFORMER, 700 - 2800

Part	Mounting Type	Phase Difference	Insertion Loss (Max) [Max]	Return Loss (Min) [Min]	Frequency Range [Max]	Frequency Range [Min]	Package / Case	Package / Case	Impedance - Unbalanced/Balanced [custom]	Impedance - Unbalanced/Balanced [custom]	Impedance - Unbalanced/Balanced [custom]	Insertion Loss (Max)
Mini-Circuits TCW2-282+	Surface Mount	13 °	2 dB	10.83 dB	2.8 GHz	700 MHz	6 PC Pad	0603 (1608 Metric)	1:2

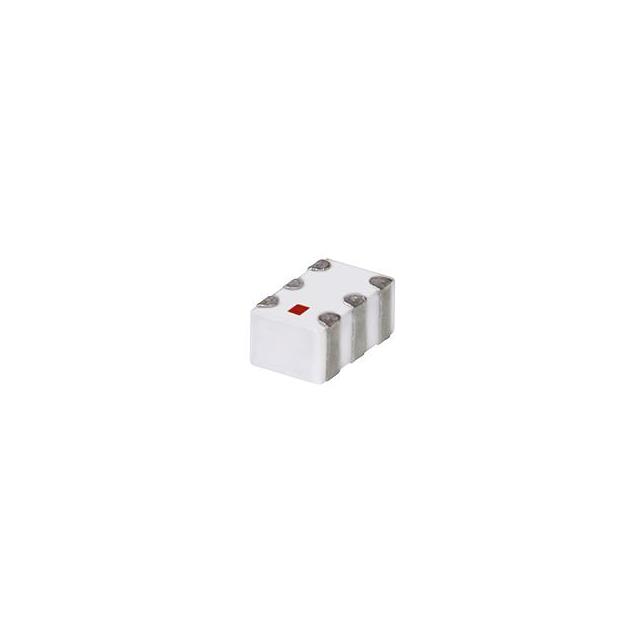

Mini-Circuits TCW2-2700+	Surface Mount	19 °	1.7 dB	9.5 dB	2.7 GHz	500 MHz	6 PC Pad	0603 (1608 Metric)	1:2
Mini-Circuits TCW2-63+	Surface Mount	4 °	2 dB	12.76 dB	5.875 GHz	4.9 GHz	6 PC Pad	0603 (1608 Metric)	1:2

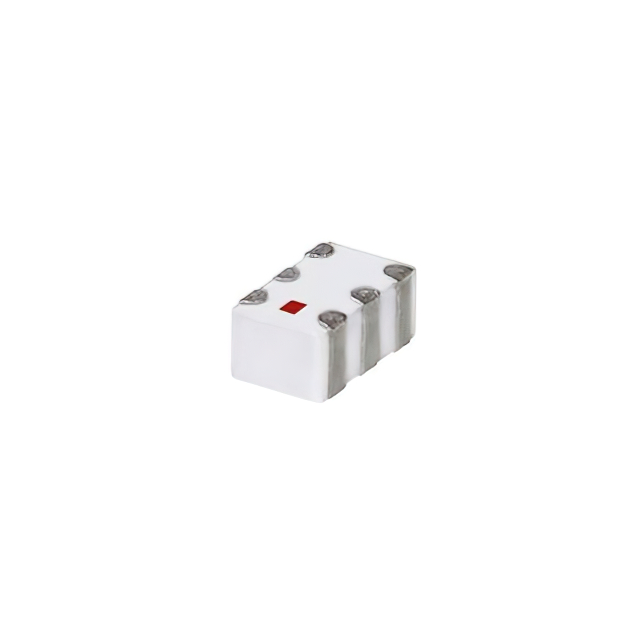

Mini-Circuits TCW2-7200+	Surface Mount	8 °	1.5 dB	9.5 dB	7.2 GHz	5.5 GHz	6 PC Pad	0603 (1608 Metric)		100 Ohm	50 Ohm
Mini-Circuits TCW2-722+	Surface Mount	15 °	1.9 dB	12 dB	7.125 GHz	2.4 GHz	6 PC Pad	0603 (1608 Metric)	1:2
Mini-Circuits TCW2-392+	Surface Mount	5 °			3.9 GHz	3.3 GHz	6 PC Pad	0603 (1608 Metric)	1:2			1.3 dB
