IRSM505 Series

Manufacturer: INFINEON

Catalog

IC HALF BRIDGE DRIVER 1.2A 23DIP

Part	Current - Peak Output	Package / Case	Mounting Type	Current - Output / Channel	Rds On (Typ)	Fault Protection	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Supplier Device Package	Output Configuration	Voltage - Load [Max]	Interface	Load Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Features	Current - Peak Output [Max]

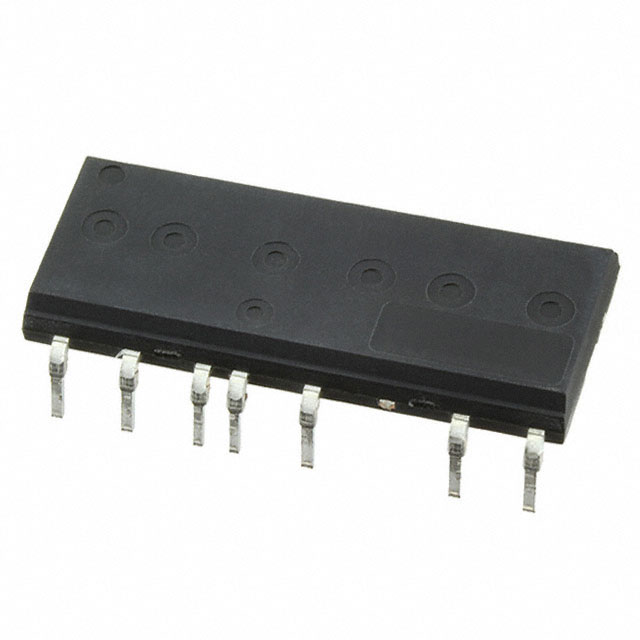

INFINEON IRSM505-015DA	9 A	23-DIP Module	Through Hole	1.2 A	5 Ohm	UVLO	-40 °C	150 °C	UMOS	23-DIP	Half Bridge (3)	400 V	Logic	Inductive	16.5 V	13.5 V	AC Motors	Bootstrap Circuit
INFINEON IRSM505-025DA		32-PowerDIP Module 23 Leads	Through Hole	1.5 A	3 Ohm	UVLO	-40 °C	150 °C	UMOS	23-DIP	Half Bridge (3)	400 V	Logic	Inductive	16.5 V	13.5 V	AC Motors	Bootstrap Circuit	11 A

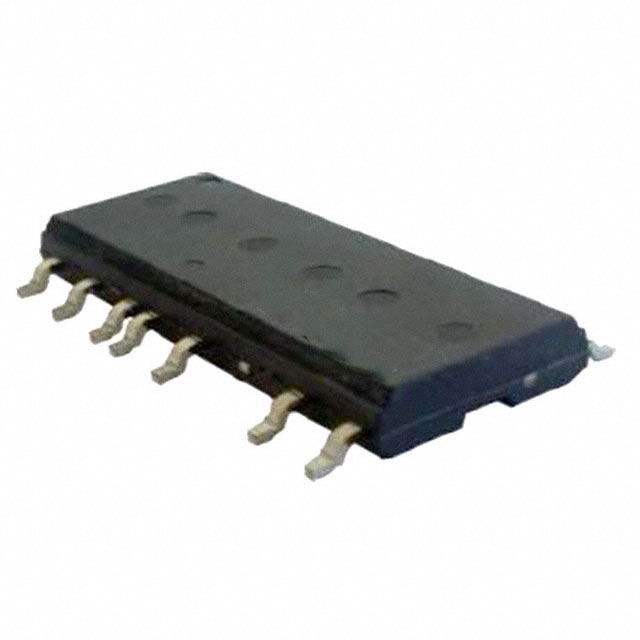

INFINEON IRSM505-015PA	9 A	23-PowerSMD Module	Surface Mount	1.2 A	5 Ohm	UVLO	-40 °C	150 °C	UMOS	23-SOP	Half Bridge (3)	400 V	Logic	Inductive	16.5 V	13.5 V	AC Motors	Bootstrap Circuit
INFINEON IRSM505-025PA		23-PowerSMD Module	Surface Mount	1.5 A	3 Ohm	UVLO	-40 °C	150 °C	UMOS	23-SOP	Half Bridge (3)	400 V	Logic	Inductive	16.5 V	13.5 V	AC Motors	Bootstrap Circuit	11 A
INFINEON IRSM505-025DA		32-PowerDIP Module 23 Leads	Through Hole	1.5 A	3 Ohm	UVLO	-40 °C	150 °C	UMOS	23-DIP	Half Bridge (3)	400 V	Logic	Inductive	16.5 V	13.5 V	AC Motors	Bootstrap Circuit	11 A
INFINEON IRSM505-024PA	7 A	32-PowerSMD Module 23 Leads	Surface Mount	1.6 A	1.8 Ohm	UVLO	-40 °C	150 °C	UMOS	23-SOP	Half Bridge (3)	200 V	Logic	Inductive	16.5 V	13.5 V	AC Motors	Bootstrap Circuit
INFINEON IRSM505-035DA	15 A	32-PowerDIP Module 23 Leads	Through Hole	2.1 A	1.8 Ohm	UVLO	-40 °C	150 °C	UMOS	23-DIP	Half Bridge (3)	400 V	Logic	Inductive	16.5 V	13.5 V	AC Motors	Bootstrap Circuit
INFINEON IRSM505-055DA2	15 A	32-PowerDIP Module 23 Leads	Through Hole	2.4 A	1.3 Ohm	UVLO	-40 °C	150 °C	UMOS	23-DIP	Half Bridge (3)	400 V	Logic	Inductive	16.5 V	13.5 V	AC Motors	Bootstrap Circuit
INFINEON IRSM505-035PAALMA1		23-PowerSMD Module	Surface Mount	2.1 A	1.8 Ohm 1.8 Ohm	UVLO	-40 °C	150 °C	MOSFET (Metal Oxide)	PG-DIP-23-901/SOP 29x12F	Half Bridge (3)	400 V	Logic PWM	Inductive	16.5 V	13.5 V	AC Motors	Bootstrap Circuit
INFINEON IRSM505-025PATR		23-PowerSMD Module	Surface Mount	1.5 A	3 Ohm	UVLO	-40 °C	150 °C	UMOS	23-SOP	Half Bridge (3)	400 V	Logic	Inductive	16.5 V	13.5 V	AC Motors	Bootstrap Circuit	11 A
