rea Series

Catalog

CAPACITOR: ELECTROLYTIC; THT; 3300UF; 50VDC; Ø18X40MM; ±20%; REA

Part	Voltage - Rated	Tolerance	Package / Case	Polarization	Lifetime @ Temp.	Ripple Current @ High Frequency	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ Low Frequency	Mounting Type	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Size / Dimension	Height - Seated (Max)	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]
KYOCERA AVX REA1840332M050B	50 VDC	20 %	Can Radial	Polar	5000 Hrs	2.898 A	General Purpose	42 mm	1.654 in	3.3 mF	0.709 in	18 mm	-40 C	105 ░C	2.07 A	Through Hole	0.295 in	7.5 mm

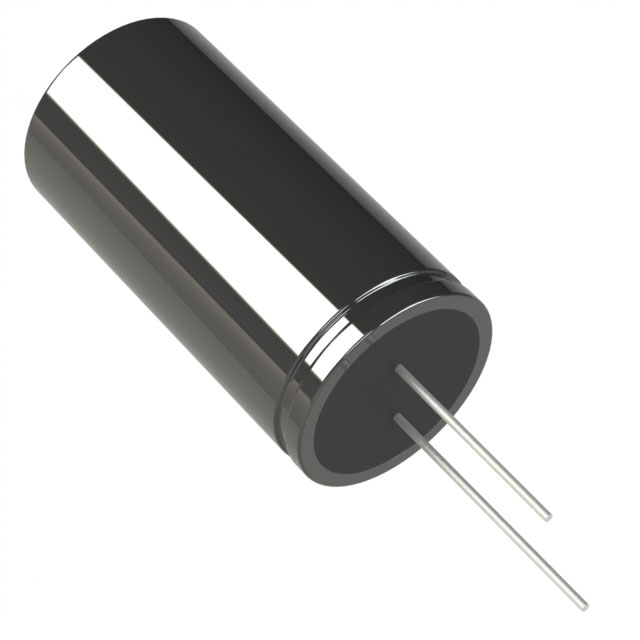

KYOCERA AVX REA1632472M016B	16 V	20 %	Can Radial	Polar	5000 Hrs	2.198 A	General Purpose		1.339 in	4700 µF	0.63 in	16 mm	-40 C	105 ░C	1.57 A	Through Hole	0.295 in	7.5 mm	34 mm
KYOCERA AVX REA1632102M063B	63 V	20 %	Can Radial	Polar	5000 Hrs	1.589 A	General Purpose		1.339 in	1000 µF	0.63 in	16 mm	-40 C	105 ░C	1.135 A	Through Hole	0.295 in	7.5 mm	34 mm
KYOCERA AVX REA1321222M010B	10 V	20 %	Can Radial	Polar	5000 Hrs	1.358 A	General Purpose	23 mm	0.906 in	2.2 mF	0.512 in		-40 C	105 ░C	970 mA	Through Hole	0.197 "	5 mm		13 mm
KYOCERA AVX REA1626472M010B	10 V	20 %	Can Radial	Polar	5000 Hrs	1.96 A	General Purpose	28 mm	1.102 in	4700 µF	0.63 in	16 mm	-40 C	105 ░C	1.4 A	Through Hole	0.295 in	7.5 mm
KYOCERA AVX REA1632103M006B	6.3 VDC	20 %	Can Radial	Polar	5000 Hrs		General Purpose		1.339 in	10000 µF	0.63 in	16 mm	-40 C	105 ░C	1.79 A	Through Hole	0.295 in	7.5 mm	34 mm
KYOCERA AVX REA1835103M010B	10 V	20 %	Can Radial	Polar	5000 Hrs	2.412 A	General Purpose		1.457 in	10000 µF	0.709 in	18 mm	-40 C	105 ░C	2.01 A	Through Hole	0.295 in	7.5 mm			37 mm
KYOCERA AVX REA1840472M035B	35 V	20 %	Can Radial	Polar	5000 Hrs	3.01 A	General Purpose	42 mm	1.654 in	4700 µF	0.709 in	18 mm	-40 C	105 ░C	2.15 A	Through Hole	0.295 in	7.5 mm
KYOCERA AVX REA1020222M006B	6.3 VDC	20 %	Can Radial	Polar	4000 Hrs	1.162 A	General Purpose			2.2 mF	0.394 in	10 mm	-40 C	105 ░C	830 mA	Through Hole	0.197 "	5 mm				0.866 in	22 mm
