187 FASTON Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TERMINALS FASTON YEL .187X.02

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Insulation	Gender	Termination	Contact Finish	Color	Terminal Type	Tab Length	Tab Length	Mounting Type	Length - Overall [x]	Length - Overall [x]	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]	Tab Thickness	Tab Thickness	Tab Width [x]	Tab Width [x]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Length - Overall	Length - Overall	Features	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]

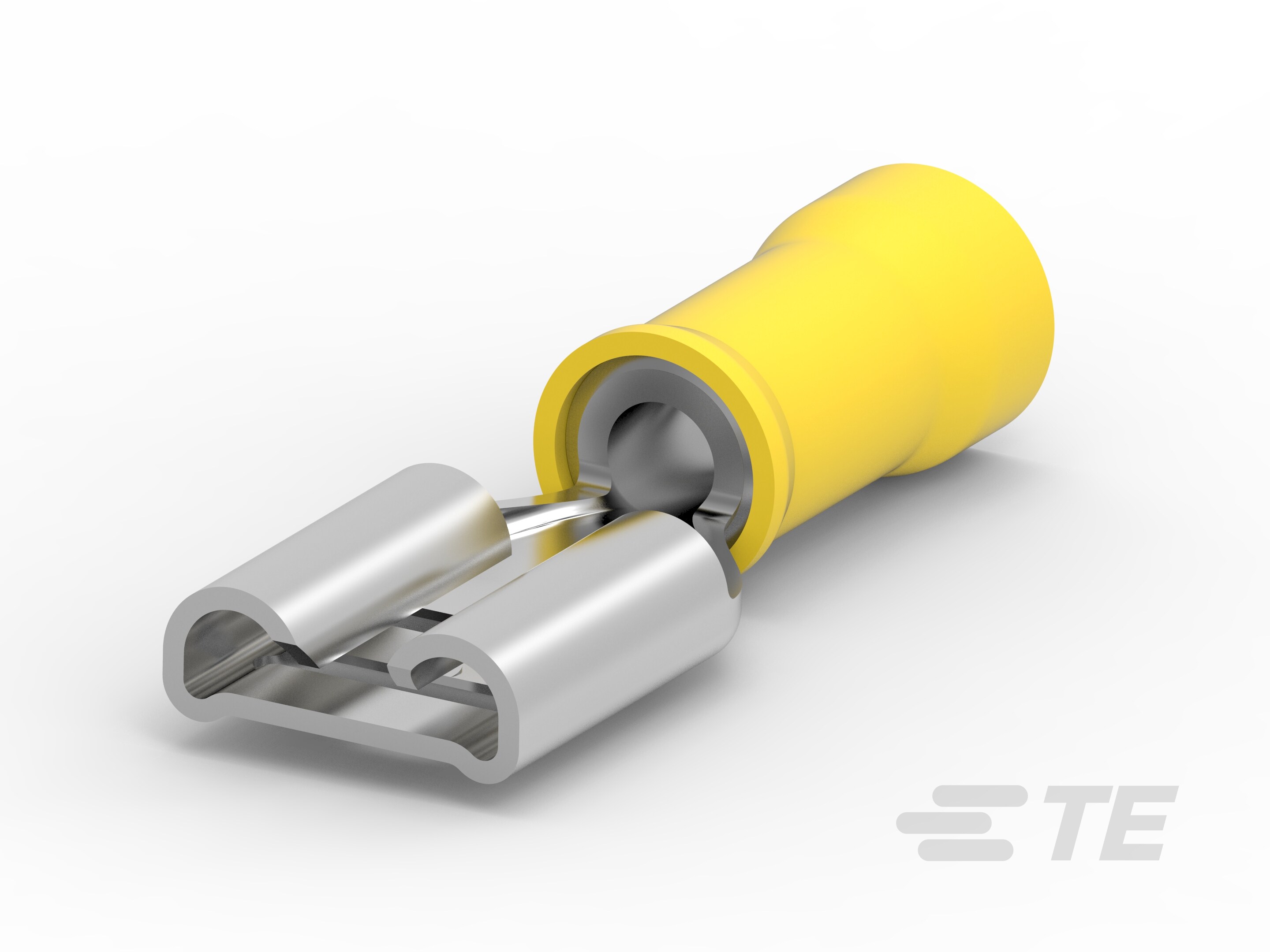

TE Connectivity AMP Connectors 641321-1	0.082 in	2.08 mm	Non-Mating End Insulated	Female	Crimp	Tin	Yellow	Standard	0.25 in	6.35 mm	Free Hanging (In-Line)	0.7 in	17.78 mm	Brass	24 AWG	26 AWG	0.02 in	0.51 mm	0.187 in	4.75 mm
TE Connectivity AMP Connectors 60487-1			Non-Insulated	Female	Crimp			Standard	0.25 in	6.35 mm	Free Hanging (In-Line)	0.59 in	14.99 mm	Brass	16 AWG	18 AWG	0.02 in	0.51 mm	0.187 in	4.75 mm
TE Connectivity AMP Connectors 520982-2			Fully Insulated	Female	Crimp	Tin	Natural	Standard			Free Hanging (In-Line)	1.085 in	27.56 mm	Brass	16 AWG	20 AWG	0.032 in	0.81 mm	0.187 in	4.75 mm	0.13 "	0.09 in	2.29 mm	3.3 mm

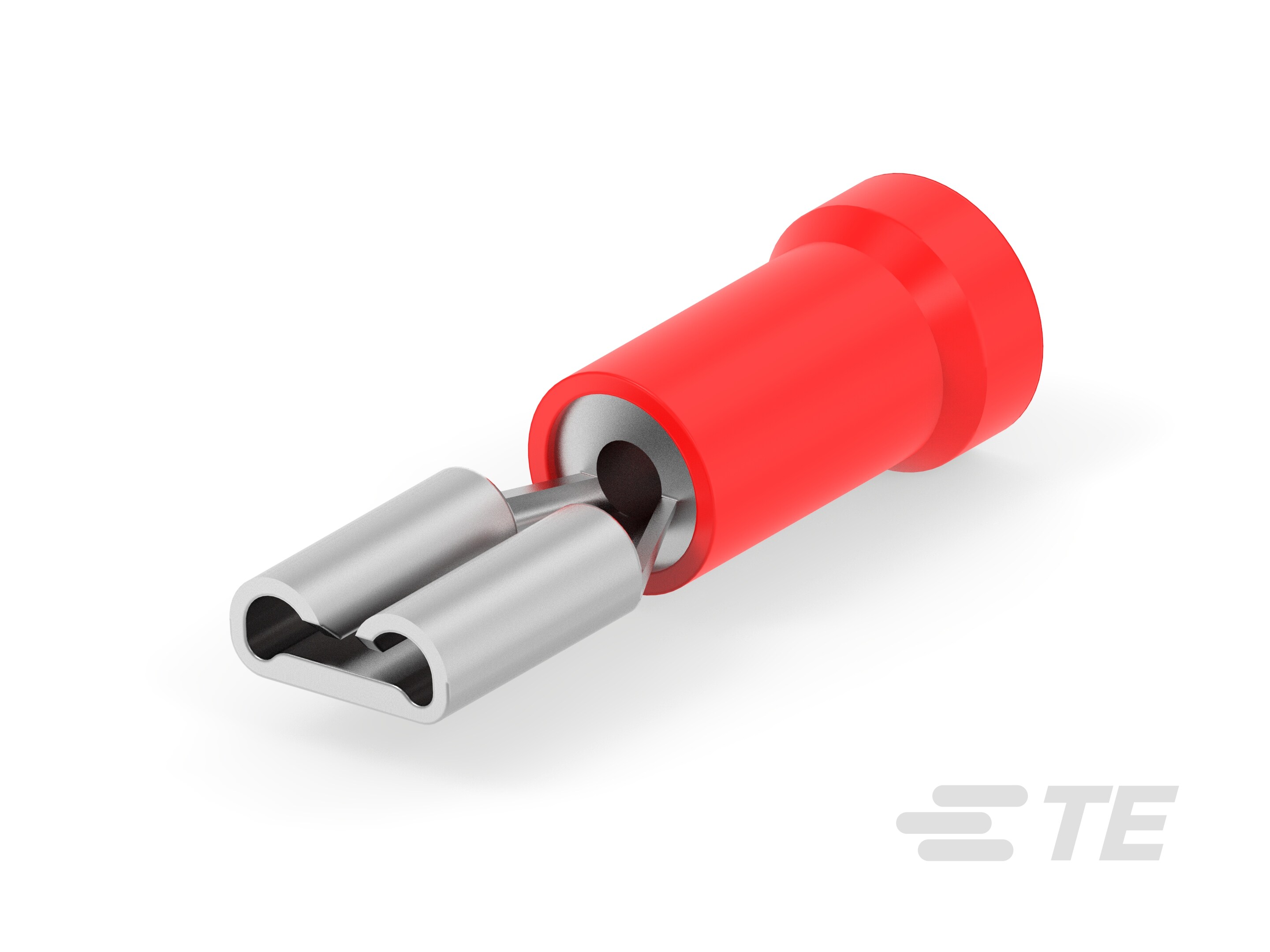

TE Connectivity AMP Connectors 5-160483-1			Non-Mating End Insulated	Female	Crimp	Tin	Red	Standard	0.25 in	6.35 mm	Free Hanging (In-Line)			Brass	16 AWG	22 AWG	0.032 in	0.81 mm	0.187 in	4.75 mm					0.822 in	20.88 mm
TE Connectivity AMP Connectors 140607			Non-Insulated	Male	Rivet Screw Stud			Angled - 45°			Board Chassis			Brass			0.032 in	0.81 mm	0.25 in	6.35 mm							2 Tabs

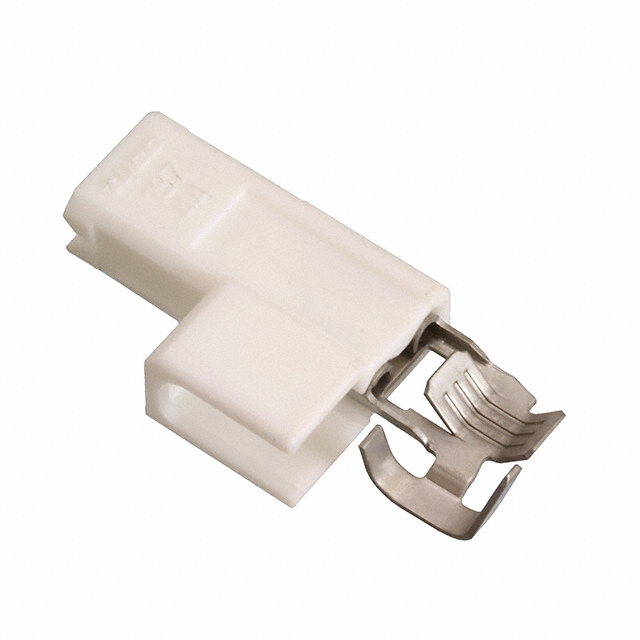

TE Connectivity AMP Connectors 521599-2			Fully Insulated	Female	Crimp	Tin	Natural	Angled - 90° Flag			Free Hanging (In-Line) Right Angle			Brass	14 AWG	20 AWG	0.032 in	0.81 mm	0.187 in	4.75 mm								0.15 in	3.81 mm	2.79 mm	0.11 in
TE Connectivity AMP Connectors 5-160483-1			Non-Mating End Insulated	Female	Crimp	Tin	Red	Standard	0.25 in	6.35 mm	Free Hanging (In-Line)			Brass	16 AWG	22 AWG	0.032 in	0.81 mm	0.187 in	4.75 mm	0.14 in	0.105 in	2.67 mm	3.56 mm	0.822 in	20.88 mm
TE Connectivity AMP Connectors 60529-1			Non-Insulated	Female	Crimp			Angled - 90° Flag	0.25 in	6.35 mm	Free Hanging (In-Line) Right Angle			Brass	16 AWG	20 AWG	0.032 in	0.81 mm	0.187 in	4.75 mm
TE Connectivity AMP Connectors 521600-1			Fully Insulated	Female	Crimp		Natural	Angled - 90° Flag			Free Hanging (In-Line) Right Angle			Brass	17.5 AWG	22 AWG	0.032 in	0.81 mm	0.187 in	4.75 mm

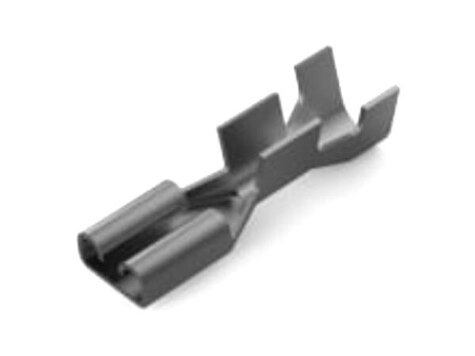

TE Connectivity AMP Connectors 1742601-1			Non-Insulated	Female	Crimp	Tin		Standard	0.25 in	6.35 mm	Free Hanging (In-Line)	0.78 in	19.81 mm	Brass	12 AWG	16 AWG	0.032 in	0.81 mm	0.187 in	4.75 mm	0.16 in	0.11 in	2.79 mm	4.06 mm
