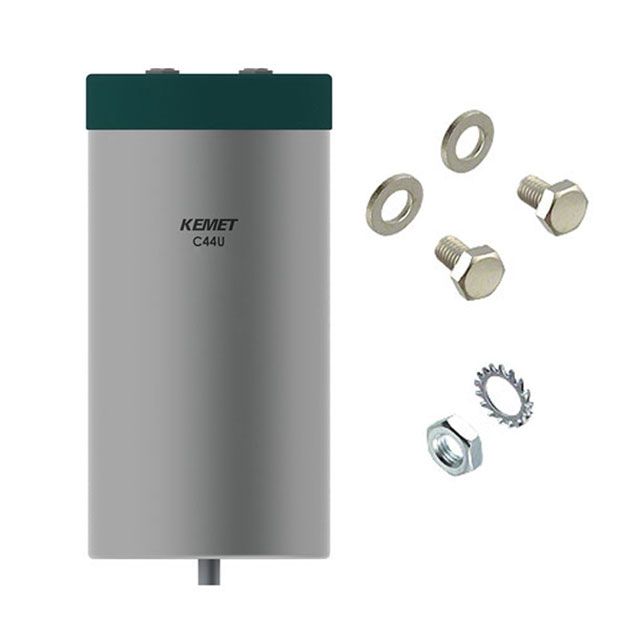

C44UHG Series

Manufacturer: KEMET

Catalog

CAP FILM 1300UF 10% 600VDC RAD

Part	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	ESR (Equivalent Series Resistance)	Termination	Mounting Type	Package / Case	Applications	Lead Spacing	Lead Spacing	Dielectric Material	Voltage Rating - DC	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Features	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)
KEMET C44UHGT7130M86K	10 %	7.165 in	182 mm	1300 µF	85 °C	-40 C	1.1 mOhms	Threaded Female	Chassis Stud Mount	Can Radial	DC Filtering DC Link	1.26 in	32 mm	Polypropylene (PP) Metallized	600 V	3.346 "	85 mm
KEMET C44UHGT7110M85K	10 %	148 mm		1100 µF	85 °C	-40 C	1.8 mOhm	Threaded Female	Chassis Stud Mount	Can Radial	DC Filtering DC Link	1.26 in	32 mm	Polypropylene (PP) Metallized	600 V	3.346 "	85 mm	5.827 in
KEMET C44UHGT6600G8TK	10 %	125 mm		600 µF	85 °C	-40 C	0.75 mOhms	Threaded Female	Chassis Stud Mount	Can Radial	DC Filtering DC Link	1.26 in	32 mm	Polypropylene (PP) Metallized	600 V	3.346 "	85 mm	4.921 "	Long Life
KEMET C44UHGT6650M81K	10 %				85 °C	-40 C	1.2 mOhm	Threaded Female	Chassis Stud Mount	Can Radial	DC Filtering DC Link	1.26 in	32 mm	Polypropylene (PP) Metallized	600 V	3.346 "	85 mm			103 mm	4.055 in
KEMET C44UHGT7100M84K	10 %			1000 µF	85 °C	-40 C	1.7 mOhm	Threaded Female	Chassis Stud Mount	Can Radial	DC Filtering DC Link	1.26 in	32 mm	Polypropylene (PP) Metallized	600 V	3.346 "	85 mm				5.433 in	138 mm
KEMET C44UHGT6900M83K	10 %	128 mm		900 µF	85 °C	-40 C	1.6 mOhm	Threaded Female	Chassis Stud Mount	Can Radial	DC Filtering DC Link	1.26 in	32 mm	Polypropylene (PP) Metallized	600 V	3.346 "	85 mm	5.039 in
