U37L Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SCREW TERMINAL

Part	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Lifetime @ Temp.	Ripple Current @ Low Frequency	Capacitance	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Ripple Current @ High Frequency	Package / Case	Polarization	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance [Min]	Tolerance [Max]
Chemi-Con E37L501CAN103MFM9U	1.252 in	31.8 mm	9 mOhm	3.504 in	89 mm	500 V	13000 Hrs	33.1 A	10000 µF	20 %	8.661 in	220 mm	General Purpose	46.4 A	Radial Can - Screw Terminals	Polar	Chassis Mount	85 °C	-40 C
Chemi-Con E37L401CSS472MEA5U	1.252 in	31.8 mm	22 mOhm	3 in	76.2 mm	400 V	13000 Hrs	14.5 A	4700 µF	20 %	4.173 in	106 mm	General Purpose	20.3 A	Radial Can - Screw Terminals	Polar	Chassis Stud Mount	85 °C	-40 C
Chemi-Con E37L401CPN472MEA5M	1.25 in	31.75 mm	22 mOhm	3 in	76.2 mm	400 V	10000 Hrs	14.5 A	4700 µF	20 %	4.173 in	106 mm	General Purpose	20.445 A	Radial Can - Screw Terminals	Polar	Chassis Mount	85 °C	-40 C

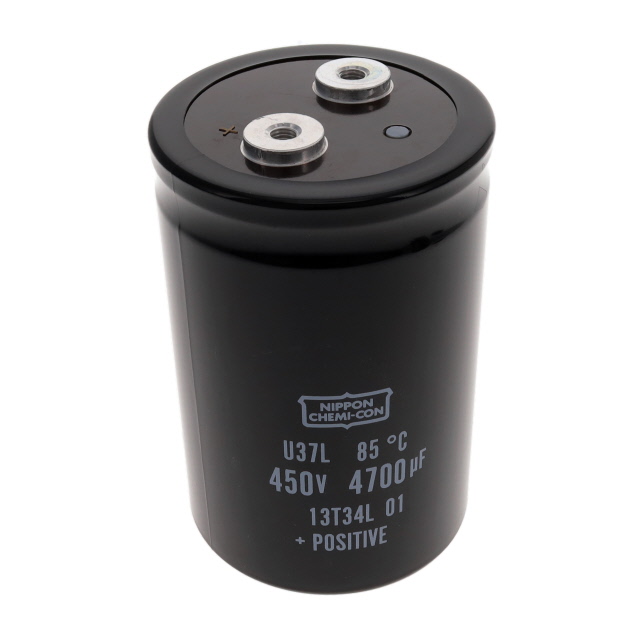

Chemi-Con E37L451CPN472MEB7U	1.252 in	31.8 mm	22 mOhm	3 in	76.2 mm	450 V	10000 Hrs	15.1 A	4700 µF	20 %			General Purpose	21.291 A	Radial Can - Screw Terminals	Polar	Chassis Mount	85 °C	-40 C	118 mm	4.646 in
Chemi-Con E37L401CLN452QF95U	1.252 in	31.8 mm		3.504 in	89 mm	400 V	13000 Hrs		4.5 mF				General Purpose		Radial Can - Screw Terminals	Polar	Chassis Mount	85 °C	-40 C		96 mm	3.78 in	-10 %	30 %
Chemi-Con E37L351CPN822MFA5M	1.25 in	31.75 mm	13 mOhm	3.504 in	89 mm	350 V	10000 Hrs	21 A		20 %	4.173 in	106 mm	General Purpose	32.853 A	Radial Can - Screw Terminals	Polar	Chassis Mount	85 °C	-40 C
Chemi-Con E37L401CGN602MDE34	1.126 "	28.6 mm		2.5 in	63.5 mm	400 V	13000 Hrs		6 mF	20 %	5.63 in	143 mm	General Purpose		Radial Can - Screw Terminals	Polar	Chassis Mount	85 °C	-40 C
