071226 Series

Manufacturer: Molex

Catalog

CONN FFC VERT 18POS 1MM PCB

Part	Mating Cycles	FFC, FCB Thickness	Contact Material	Mounting Type	Housing Color	Cable End Type	Actuator Color	Pitch [x]	Pitch [x]	Locking Feature	Termination	Actuator Material	Number of Positions	Flat Flex Type	Contact Finish	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Connector/Contact Type	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Voltage Rating

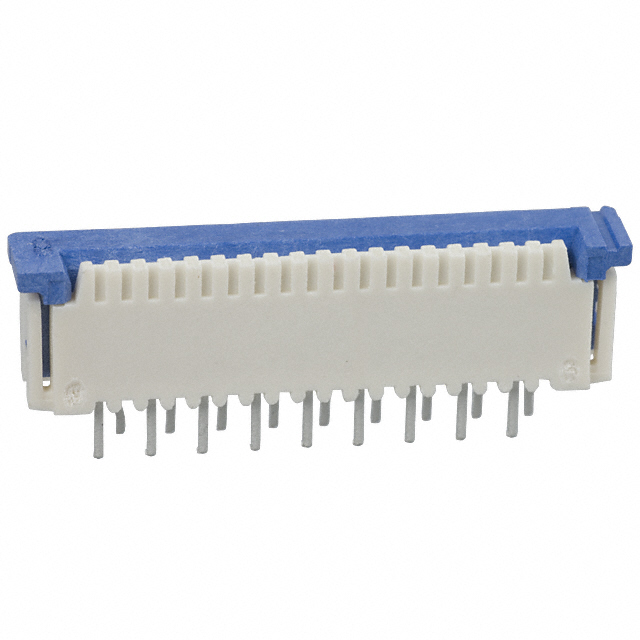

Molex 0712261825	5	0.3 mm	Phosphor Bronze	Through Hole	Natural	Tapered	Blue	0.039 in	1 mm	Slide Lock	Kinked Pin	Liquid Crystal Polymer (LCP) Glass Filled	18	FFC	Tin	UL94 V-0	-20 C	80 C	Polyamide (PA) Nylon Glass Filled	Contacts Vertical - 1 Sided	196.9 µin	5 µm	6 mm	0.236 in	125 VDC

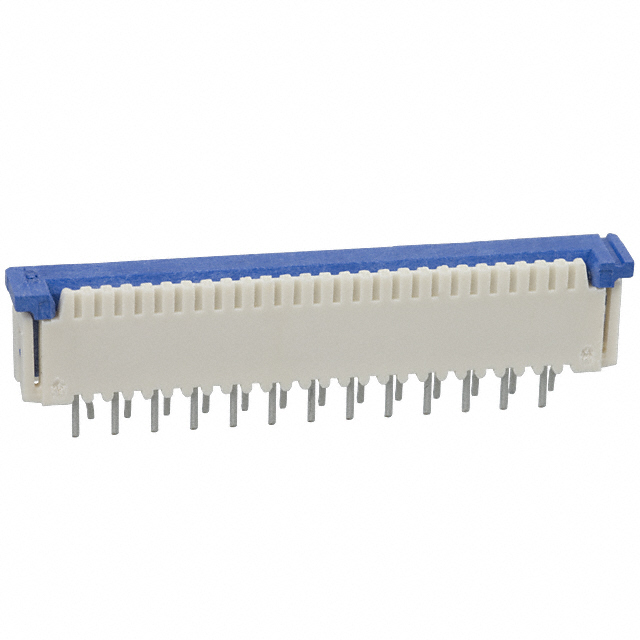

Molex 0712262625	5	0.3 mm	Phosphor Bronze	Through Hole	Natural	Tapered	Blue	0.039 in	1 mm	Slide Lock	Kinked Pin	Liquid Crystal Polymer (LCP) Glass Filled	26	FFC	Tin	UL94 V-0	-20 C	80 C	Polyamide (PA) Nylon Glass Filled	Contacts Vertical - 1 Sided	196.9 µin	5 µm	6 mm	0.236 in	125 VDC

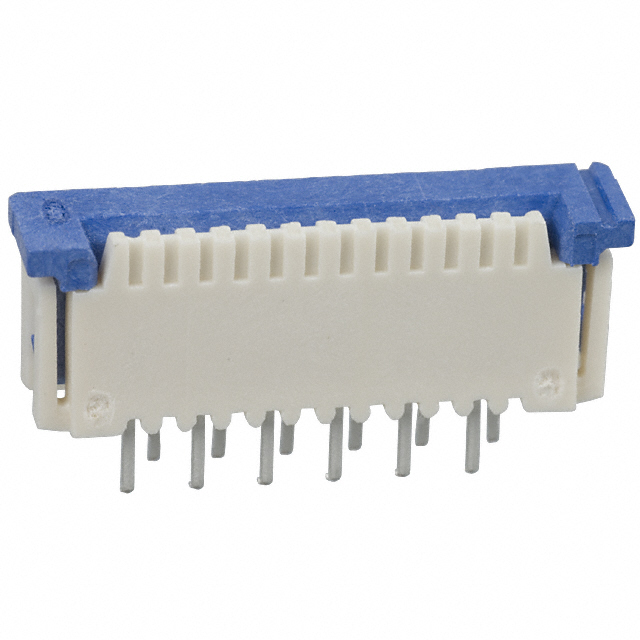

Molex 0712261225	5	0.3 mm	Phosphor Bronze	Through Hole	Natural	Tapered	Blue	0.039 in	1 mm	Slide Lock	Kinked Pin	Liquid Crystal Polymer (LCP) Glass Filled	12	FFC	Tin	UL94 V-0	-20 C	80 C	Polyamide (PA) Nylon Glass Filled	Contacts Vertical - 1 Sided	196.9 µin	5 µm	6 mm	0.236 in	125 VDC

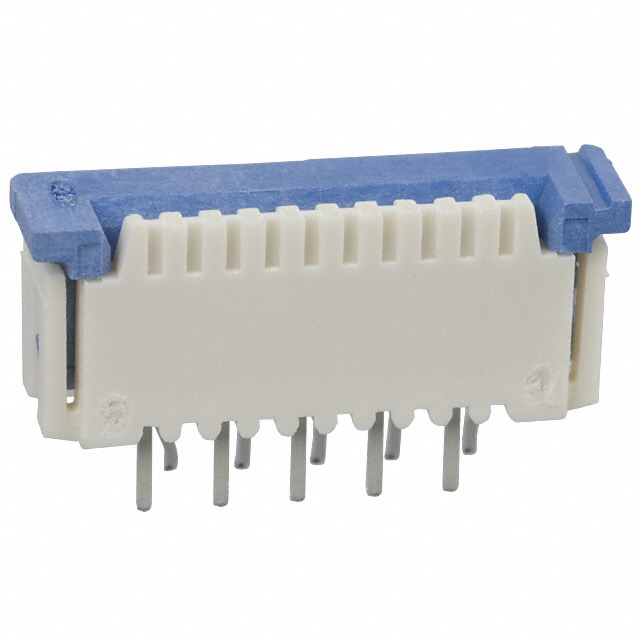

Molex 0712261025	5	0.3 mm	Phosphor Bronze	Through Hole	Natural	Tapered	Blue	0.039 in	1 mm	Slide Lock	Kinked Pin	Liquid Crystal Polymer (LCP) Glass Filled	10	FFC	Tin	UL94 V-0	-20 C	80 C	Polyamide (PA) Nylon Glass Filled	Contacts Vertical - 1 Sided	196.9 µin	5 µm	6 mm	0.236 in	125 VDC

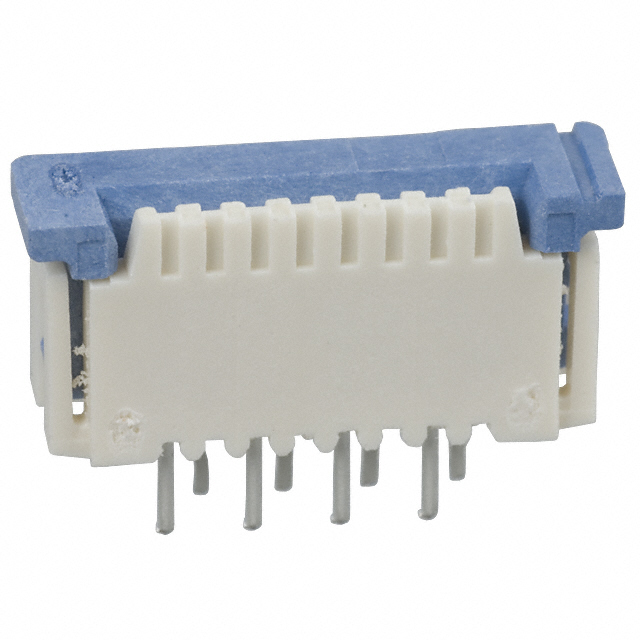

Molex 0712260825	5	0.3 mm	Phosphor Bronze	Through Hole	Natural	Tapered	Blue	0.039 in	1 mm	Slide Lock	Kinked Pin	Liquid Crystal Polymer (LCP) Glass Filled	8	FFC	Tin	UL94 V-0	-20 C	80 C	Polyamide (PA) Nylon Glass Filled	Contacts Vertical - 1 Sided	196.9 µin	5 µm	6 mm	0.236 in	125 VDC

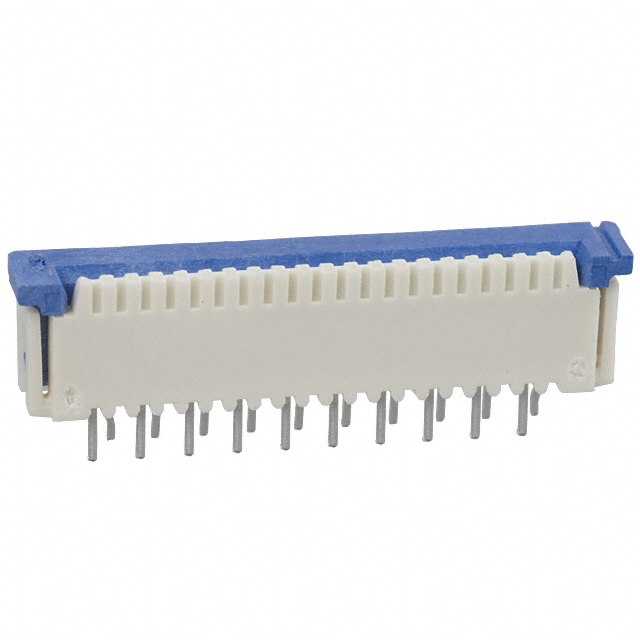

Molex 0712262025	5	0.3 mm	Phosphor Bronze	Through Hole	Natural	Tapered	Blue	0.039 in	1 mm	Slide Lock	Kinked Pin	Liquid Crystal Polymer (LCP) Glass Filled	20	FFC	Tin	UL94 V-0	-20 C	80 C	Polyamide (PA) Nylon Glass Filled	Contacts Vertical - 1 Sided	196.9 µin	5 µm	6 mm	0.236 in	125 VDC
Molex 0712261635
Molex 0712261035

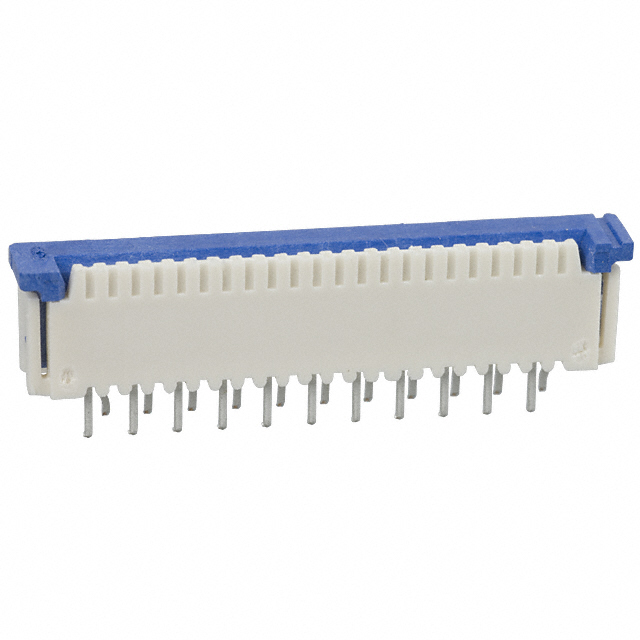

Molex 0712262225	5	0.3 mm	Phosphor Bronze	Through Hole	Natural	Tapered	Blue	0.039 in	1 mm	Slide Lock	Kinked Pin	Liquid Crystal Polymer (LCP) Glass Filled	22 positions	FFC	Tin	UL94 V-0	-20 C	80 C	Polyamide (PA) Nylon Glass Filled	Contacts Vertical - 1 Sided	196.9 µin	5 µm	6 mm	0.236 in	125 VDC
