AV044746 Series
Manufacturer: APEM Inc.
Beta
⌘K

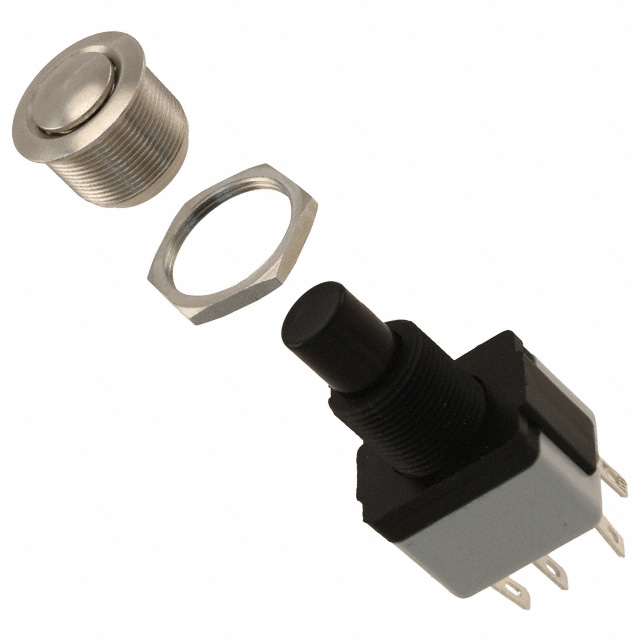

SWITCH PUSHBUTTON DPDT 6A 125V
| Part | Electrical Life | Mechanical Life | Voltage Rating - AC | Actuator Type | Panel Cutout Dimensions [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Ingress Protection | Circuit | Actuator Marking | Switch Function | Termination Style | Color - Actuator/Cap | Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 APEM Inc. | 10000 Cycles | 100000 Cycles | 125 V | Button Round | 22.2 mm | 55 °C | -20 ░C | 6 A | IP54 - Dust Protected Water Resistant | DPDT | No Marking | On-On | Solder Quick Connect - 0.110" (2.8mm) | Silver | Anti-Vandal | Panel Mount Front |
