Power Inductors - SMD 22nH 40A
Power Inductors - SMD 22nH 40A
| Part | Type | Current - Saturation (Isat) | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Mounting Type | Inductance | Material - Core | Tolerance | Inductance Frequency - Test | Height - Seated (Max) | Height - Seated (Max) [Max] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | DC Resistance (DCR) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

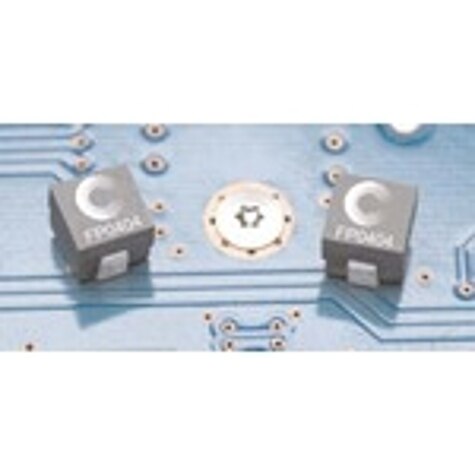

 Eaton - Electronics Division | Drum Core Wirewound | 40 A | Unshielded | 125 °C | -40 C | 40 A | Surface Mount | 22 nH | Ferrite | 15 % | 100 kHz | 4 mm | 0.157 in | 0.157 " | 4 mm | 0.157 in | 4 mm | 0.32 mOhm | Nonstandard |
