V2D2AH01 Series

Catalog

SWITCH ROCKER SPST-NO 20A 12V

Part	Illumination Voltage (Nominal)	Electrical Life	Ingress Protection	Color - Actuator/Cap	Mounting Type	Current Rating (Amps)	Circuit	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Switch Function	Actuator Type	Voltage Rating - DC	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Illumination Type, Color	Approval Agency	Termination Style
Carling Technologies V2D2AH01-1KZ00-000	12 VDC	100000 Cycles	IP66/IP68	Black	Panel Mount Snap-In	20 A	SPST-NO	No Marking	85 °C	-40 °C	100000 Cycles	Off-Mom	Concave (Standard V) - Illuminated	12 V	21.08 mm	36.83 mm	Green LED	CSA UL VDE	Quick Connect - 0.250" (6.3mm)
Carling Technologies V2D2AH01-69ZUL-300	12 VDC	100000 Cycles	IP66/IP68	Black	Panel Mount Snap-In	20 A	SPST-NO	Standby - High Beam Vertical	85 °C	-40 °C	100000 Cycles	Off-Mom	Convex (Reverse V) - Illuminated	12 V	21.08 mm	36.83 mm	Green LED	CSA UL VDE	Quick Connect - 0.250" (6.3mm)

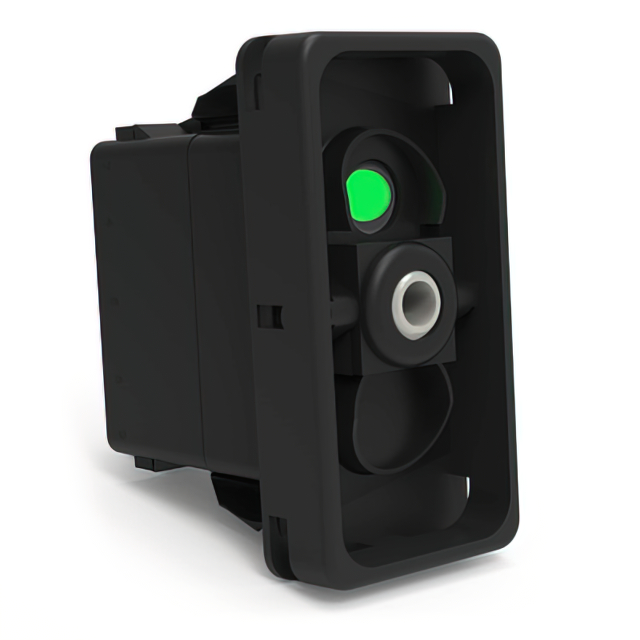

Carling Technologies V2D2AH01-00000-000	12 VDC	100000 Cycles	IP66/IP68		Panel Mount Snap-In	20 A	SPST-NO	Varies by Cap	85 °C	-40 °C	100000 Cycles	Off-Mom	Actuator Arm Cap Required - Illuminated	12 V	21.08 mm	36.83 mm	Green LED	CSA UL VDE	Quick Connect - 0.250" (6.3mm)
