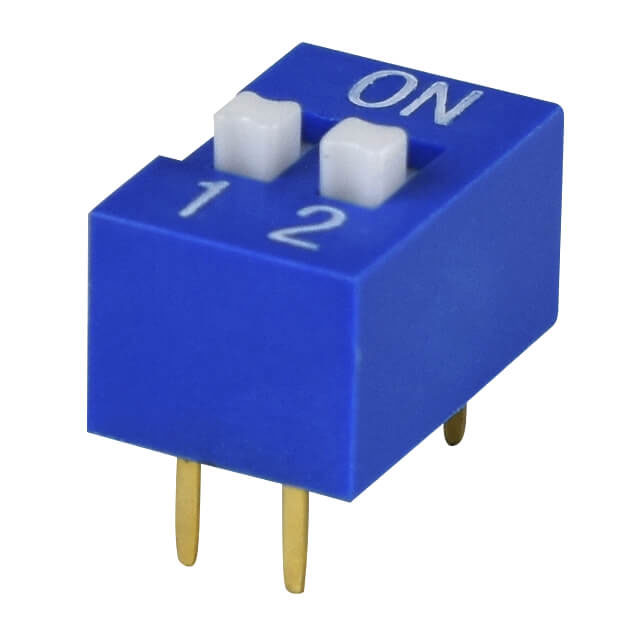

DS01-254 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Actuator Level	Circuit	Current Rating (Amps)	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Height Above Board [z]	Height Above Board [z]	Actuator Type	Termination Style	Pitch	Pitch	Contact Material	Mounting Type	Voltage Rating	Length	Length	Body Material	Electrical Life	Length [x]	Length [x]
Same Sky (Formerly CUI Devices) DS01-254-S-07BE	Raised	SPST	25 mA	Gold	85 °C	-40 C	7	0.264 in	6.7 mm	Slide (Standard)	PC Pin	2.54 mm	0.1 "	Copper Alloy	Through Hole	24 VDC
Same Sky (Formerly CUI Devices) DS01-254-S-02BE	Raised	SPST	25 mA	Gold	85 °C	-40 C	2	0.264 in	6.7 mm	Slide (Standard)	PC Pin	2.54 mm	0.1 "	Copper Alloy	Through Hole	24 VDC
Same Sky (Formerly CUI Devices) DS01-254-L-06BE	Raised	SPST	25 mA	Gold	85 °C	-40 C	6	0.264 in	6.7 mm	Slide (Standard)	PC Pin	2.54 mm	0.1 "	Copper Alloy	Through Hole	24 VDC
Same Sky (Formerly CUI Devices) DS01-254-L-12BE	Raised	SPST	25 mA	Gold	85 °C	-40 C	12	0.264 in	6.7 mm	Slide (Standard)	PC Pin	2.54 mm	0.1 "	Copper Alloy	Through Hole	24 VDC	31.9 mm	1.256 in	Polybutylene Terephthalate (PBT)	2000 Steps
Same Sky (Formerly CUI Devices) DS01-254-L-07BE	Raised	SPST	25 mA	Gold	85 °C	-40 C	7	0.264 in	6.7 mm	Slide (Standard)	PC Pin	2.54 mm	0.1 "	Copper Alloy	Through Hole	24 VDC
Same Sky (Formerly CUI Devices) DS01-254-S-07BE	Raised	SPST	25 mA	Gold	85 °C	-40 C	7	0.264 in	6.7 mm	Slide (Standard)	PC Pin	2.54 mm	0.1 "	Copper Alloy	Through Hole	24 VDC	19.2 mm	0.756 in	Polybutylene Terephthalate (PBT)	2000 Steps
Same Sky (Formerly CUI Devices) DS01-254-S-08BE	Raised	SPST	25 mA	Gold	85 °C	-40 C	8	0.264 in	6.7 mm	Slide (Standard)	PC Pin	2.54 mm	0.1 "	Copper Alloy	Through Hole	24 VDC			Polybutylene Terephthalate (PBT)	2000 Steps	0.856 in	21.74 mm
Same Sky (Formerly CUI Devices) DS01-254-S-01BE	Raised	SPST	25 mA	Gold	85 °C	-40 C	1	0.264 in	6.7 mm	Slide (Standard)	PC Pin	2.54 mm	0.1 "	Copper Alloy	Through Hole	24 VDC	3.96 mm	0.156 in	Polybutylene Terephthalate (PBT)	2000 Steps
Same Sky (Formerly CUI Devices) DS01-254-S-06BE	Raised	SPST	25 mA	Gold	85 °C	-40 C	6	0.264 in	6.7 mm	Slide (Standard)	PC Pin	2.54 mm	0.1 "	Copper Alloy	Through Hole	24 VDC			Polybutylene Terephthalate (PBT)	2000 Steps	0.656 in	16.66 mm
Same Sky (Formerly CUI Devices) DS01-254-S-02BE	Raised	SPST	25 mA	Gold	85 °C	-40 C	2	0.264 in	6.7 mm	Slide (Standard)	PC Pin	2.54 mm	0.1 "	Copper Alloy	Through Hole	24 VDC			Polybutylene Terephthalate (PBT)	2000 Steps	0.256 in	6.5 mm
