SSA Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

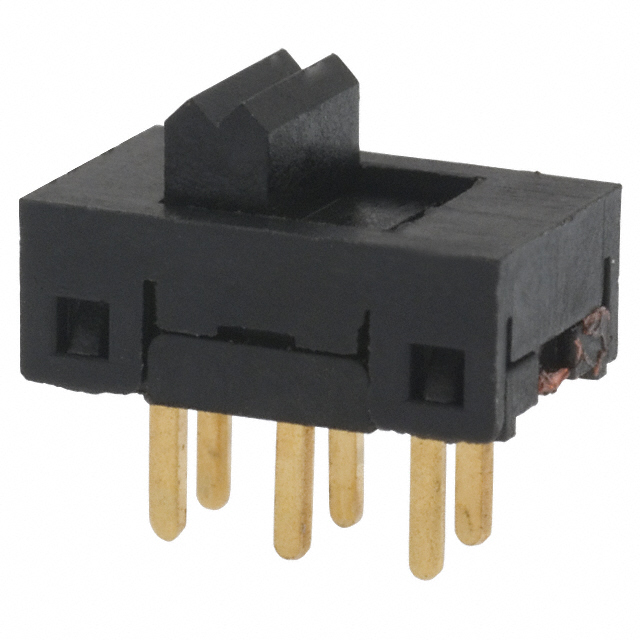

SWITCH SLIDE DPDT 0.4VA 20V
| Part | Operating Force | Mechanical Life | Actuator Material | Electrical Life | Switch Travel | Circuit | Contact Material | Current Rating (Amps) | Switch Function | Voltage Rating - DC | Actuator Type | Contact Timing | Voltage Rating - AC | Actuator Length [x] | Termination Style | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.25 kgf | 10000 Steps | Polyamide (PA) Nylon | 10000 Cycles | 2.5 mm | DPDT | Copper Alloy | 0.4 VA | On-On | 20 V | Standard | Non-Shorting (BBM) | 20 V | 2 mm | PC Pin | Through Hole | -20 ░C | 70 °C | Gold | Epoxy Sealed Terminals |
