V23132 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

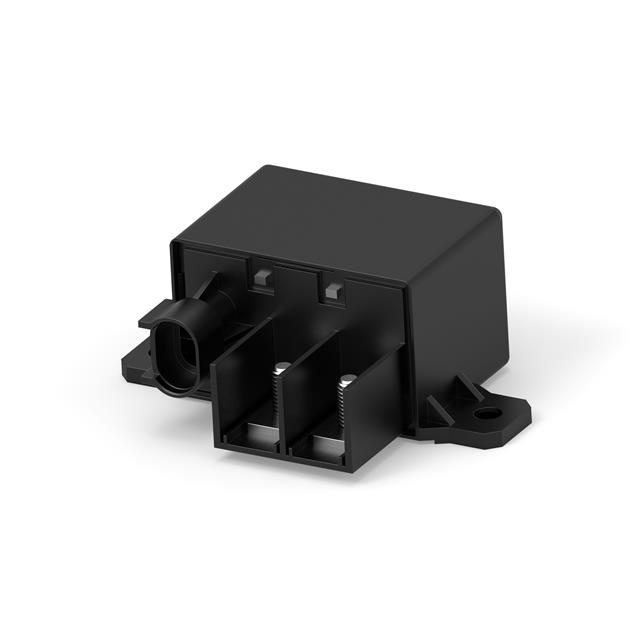

ELECTROMECHANICAL RELAY 24VDC 141OHM 120A SPST-NO-DM( (71MM)) FLANGE HIGH CURRENT RELAY
| Part | Coil Resistance | Contact Rating (Current) | Switching Voltage | Contact Material | Operate Time | Must Release Voltage | Must Operate Voltage | Mounting Type | Contact Form | Relay Type | Coil Voltage | Coil Current | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 141 Ohms | 130 A | 24 VDC | Silver Tin Oxide (AgSnO) | 25 ms | 2.4 VDC | 14.4 VDC | Chassis Mount | SPST-NO (DM) (1 Form X) | General Purpose | 24 VDC | 170.2 mA | Screw Terminal | 125 °C | -40 C | Non Latching | 8 ms |
