95278 Series

Catalog

CONN HEADER SMD 4POS 2.54MM

...

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Shrouding	Material Flammability Rating	Contact Finish - Post	Contact Shape	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Current Rating (Amps)	Contact Material	Termination	Contact Finish - Mating	Contact Type	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Connector Type	Pitch - Mating	Pitch - Mating	Fastening Type	Features	Number of Positions

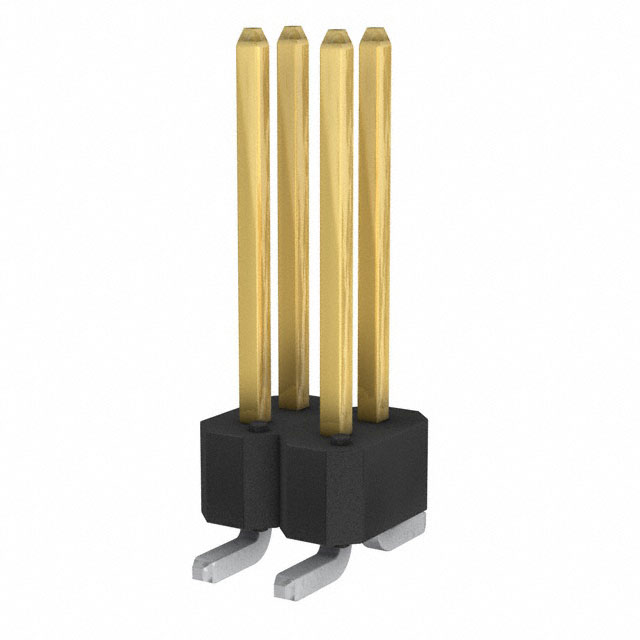

Amphenol ICC (FCI) 95278-106-04LF	2.54 mm	0.1 in	Surface Mount	125 °C	-65 ░C	Black	Unshrouded	UL94 V-0	Tin	Square	2	2 çm	78.7 çin	4	Thermoplastic	30 Áin	0.76 Ám	All	3 A	Phosphor Bronze	Solder	Gold GXT™	Male Pin	0.1 in	2.54 mm	0.409 in	10.4 mm	Breakaway Header	0.1 in	2.54 mm	Push-Pull
Amphenol ICC (FCI) 95278-801-42LF	2.54 mm	0.1 in	Surface Mount			Black	Unshrouded	UL94 V-0	Tin	Square	2	2 çm	78.7 çin	42	Thermoplastic	15 µin	0.38 µm	All		Phosphor Bronze	Solder	Gold GXT™	Male Pin	0.1 in	2.54 mm	0.232 in	5.9 mm	Header	0.1 in	2.54 mm	Push-Pull
Amphenol ICC (FCI) 95278-801B50	2.54 mm	0.1 in	Surface Mount			Black	Unshrouded	UL94 V-0	Tin-Lead	Square	2	3.81 Ám	150 Áin	50	Thermoplastic	15 µin	0.38 µm	All		Phosphor Bronze	Solder	Gold GXT™	Male Pin	0.1 in	2.54 mm	0.232 in	5.9 mm	Breakaway Header	0.1 in	2.54 mm	Push-Pull	Pick and Place

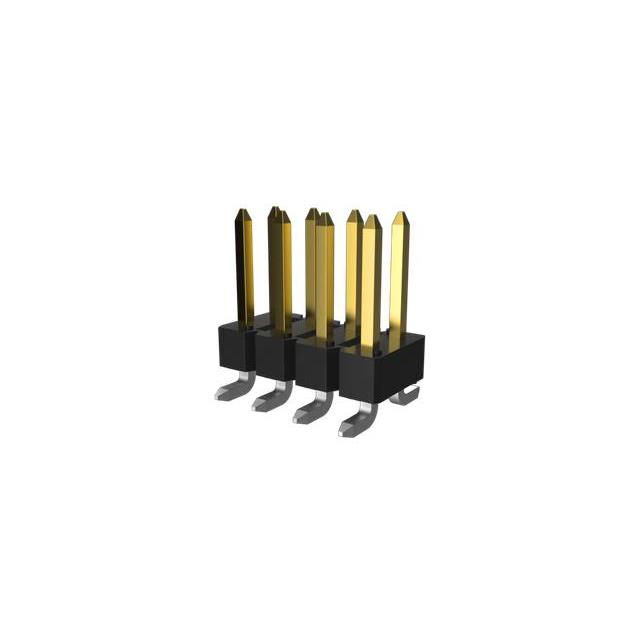

Amphenol ICC (FCI) 95278-501B04LF	2.54 mm	0.1 in	Surface Mount	125 °C	-65 ░C	Black	Unshrouded	UL94 V-0	Tin	Square	2	2 çm	78.7 çin	4	Thermoplastic	10 çin	0.25 çm	All	3 A	Phosphor Bronze	Solder	Gold GXT™	Male Pin	0.1 in	2.54 mm	0.232 in	5.9 mm	Breakaway Header	0.1 in	2.54 mm	Push-Pull	Pick and Place
Amphenol ICC (FCI) 95278-102A14LF	2.54 mm	0.1 in	Surface Mount	125 °C	-65 ░C	Black	Unshrouded	UL94 V-0	Tin	Square	2	2 çm	78.7 çin	14	Thermoplastic	30 Áin	0.76 Ám	All	3 A	Phosphor Bronze	Solder	Gold GXT™	Male Pin	0.1 in	2.54 mm	0.315 in	8 mm	Breakaway Header	0.1 in	2.54 mm	Push-Pull	Pick and Place
Amphenol ICC (FCI) 95278-802B34LF	2.54 mm	0.1 in	Surface Mount	125 °C	-65 ░C	Black	Unshrouded	UL94 V-0	Tin	Square	2	2 çm	78.7 çin	34	Thermoplastic	15 µin	0.38 µm	All	3 A	Phosphor Bronze	Solder	Gold GXT™	Male Pin	0.1 in	2.54 mm	0.315 in	8 mm	Breakaway Header	0.1 in	2.54 mm	Push-Pull	Pick and Place

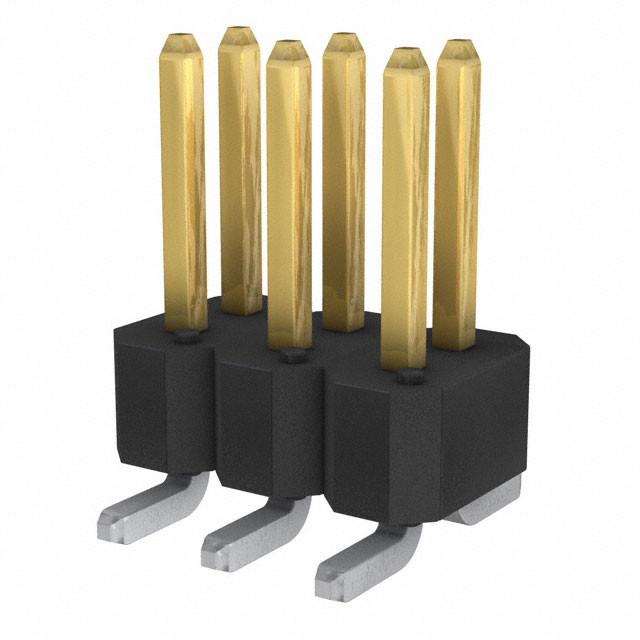

Amphenol ICC (FCI) 95278-101T06	2.54 mm	0.1 in	Surface Mount			Black	Unshrouded	UL94 V-0	Tin-Lead	Square	2	3.81 Ám	150 Áin	6	Thermoplastic	30 Áin	0.76 Ám	All		Phosphor Bronze	Solder	Gold GXT™	Male Pin	0.1 in	2.54 mm	0.232 in	5.9 mm	Breakaway Header	0.1 in	2.54 mm	Push-Pull
Amphenol ICC (FCI) 95278-102B16LF	2.54 mm	0.1 in	Surface Mount	125 °C	-65 ░C	Black	Unshrouded	UL94 V-0	Tin	Square	2	2 çm	78.7 çin		Thermoplastic	30 Áin	0.76 Ám	All	3 A	Phosphor Bronze	Solder	Gold GXT™	Male Pin	0.1 in	2.54 mm	0.315 in	8 mm	Breakaway Header	0.1 in	2.54 mm	Push-Pull	Pick and Place	16
Amphenol ICC (FCI) 95278-102A16LF	2.54 mm	0.1 in	Surface Mount	125 °C	-65 ░C	Black	Unshrouded	UL94 V-0	Tin	Square	2	2 çm	78.7 çin		Thermoplastic	30 Áin	0.76 Ám	All	3 A	Phosphor Bronze	Solder	Gold GXT™	Male Pin	0.1 in	2.54 mm	0.315 in	8 mm	Breakaway Header	0.1 in	2.54 mm	Push-Pull	Pick and Place	16
Amphenol ICC (FCI) 95278-102B50LF	2.54 mm	0.1 in	Surface Mount	125 °C	-65 ░C	Black	Unshrouded	UL94 V-0	Tin	Square	2	2 çm	78.7 çin	50	Thermoplastic	30 Áin	0.76 Ám	All	3 A	Phosphor Bronze	Solder	Gold GXT™	Male Pin	0.1 in	2.54 mm	0.315 in	8 mm	Breakaway Header	0.1 in	2.54 mm	Push-Pull	Pick and Place
