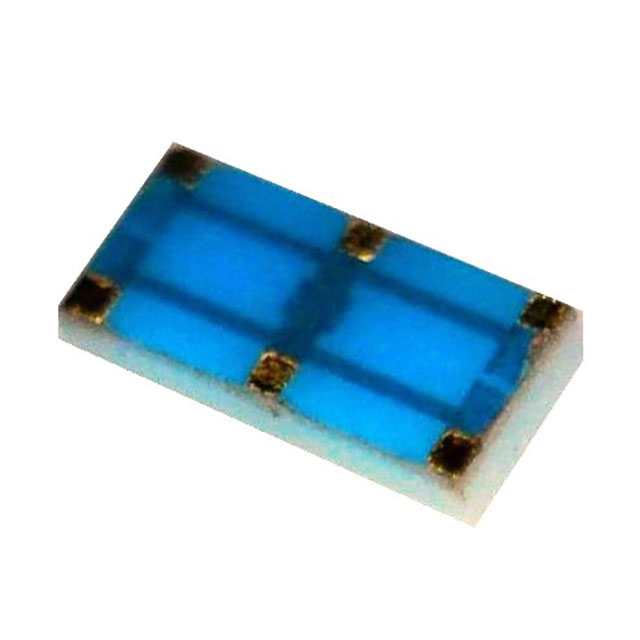

ATS1005 Series

Manufacturer: Susumu

Catalog

ATTENUATORS HIGH FREQUENCY CHIP ATTENUATOR, 3DB, 50O, 32MW, 0402 SIZE, DC TO 50GHZ

Part	Attenuation Value	Power (Watts)	Package / Case	Impedance	Frequency Range [Max]
Susumu ATS1005-3DB-FD-T1	3 dB	32 mW	0402 (1005 Metric)	50 Ohms	50 GHz
Susumu ATS1005-4DB-FD-T05	4 dB	32 mW	0402 (1005 Metric)	50 Ohms	50 GHz
Susumu ATS1005-5DB-FD-T05	5 dB	32 mW	0402 (1005 Metric)	50 Ohms	50 GHz
Susumu ATS1005-7DB-FD-T05		32 mW	0402 (1005 Metric)	50 Ohms	50 GHz
Susumu ATS1005-3DB-FD-T05	3 dB	32 mW	0402 (1005 Metric)	50 Ohms	50 GHz
Susumu ATS1005-2DB-FD-T1	2 dB	32 mW	0402 (1005 Metric)	50 Ohms	50 GHz
Susumu ATS1005-10DB-FD-T05	10 dB	32 mW	0402 (1005 Metric)	50 Ohms	50 GHz
Susumu ATS1005-2DB-FD-T05	2 dB	32 mW	0402 (1005 Metric)	50 Ohms	50 GHz
Susumu ATS1005-5DB-FD-T1	5 dB	32 mW	0402 (1005 Metric)	50 Ohms	50 GHz
Susumu ATS1005-1DB-FD-T05	1 dB	32 mW	0402 (1005 Metric)	50 Ohms	50 GHz
