EDZ960 Series

Catalog

TERM BLOCK PLUG 14POS STR 7.62MM

Part	Wire Strip Length	Torque - Screw	Torque - Screw	Housing Material	Wire Gauge or Range - mm˛	Contact Material	Material Flammability Rating	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Type	Number of Positions	Termination Style	Color	Wire Gauge or Range - mm²	Mounting Type	Voltage - UL	Positions Per Level	Positions Per Level [custom]
On Shore Technology Inc. EDZ960/14	6 mm	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	2.5 mm˛	Copper Tin Alloy	UL94 V-0	1	-30 ░C	105 ░C	0.3 in	7.62 mm	28 AWG	12 AWG	Plug Female Sockets	14	Screw	Green	2.5 mm²	Free Hanging (In-Line)	300 V	14
On Shore Technology Inc. EDZ960/10	6 mm	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	2.5 mm˛	Copper Tin Alloy	UL94 V-0	1	-30 ░C	105 ░C	0.3 in	7.62 mm	28 AWG	12 AWG	Plug Female Sockets	10	Screw	Green	2.5 mm²	Free Hanging (In-Line)	300 V	10

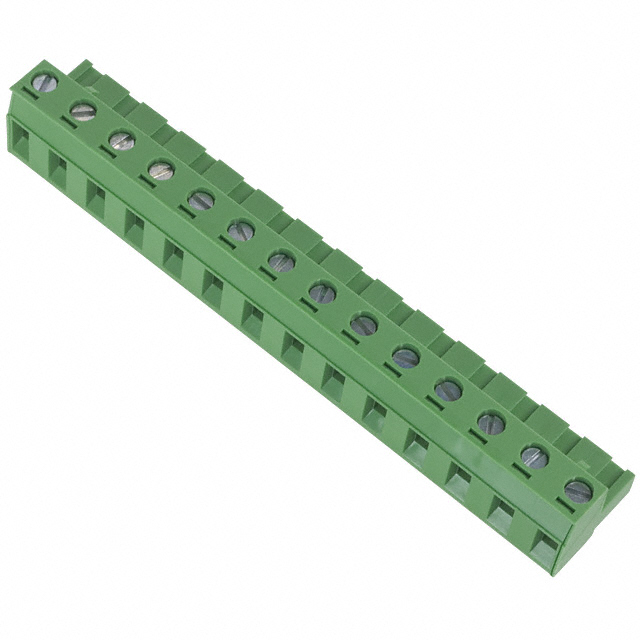

On Shore Technology Inc. EDZ960/12	6 mm	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	2.5 mm˛	Copper Tin Alloy	UL94 V-0	1	-30 ░C	105 ░C	0.3 in	7.62 mm	28 AWG	12 AWG	Plug Female Sockets	12	Screw	Green	2.5 mm²	Free Hanging (In-Line)	300 V	12
On Shore Technology Inc. EDZ960/7	6 mm	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	2.5 mm˛	Copper Tin Alloy	UL94 V-0	1	-30 ░C	105 ░C	0.3 in	7.62 mm	28 AWG	12 AWG	Plug Female Sockets	7	Screw	Green	2.5 mm²	Free Hanging (In-Line)	300 V		7
On Shore Technology Inc. EDZ960/4	6 mm	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	2.5 mm˛	Copper Tin Alloy	UL94 V-0	1	-30 ░C	105 ░C	0.3 in	7.62 mm	28 AWG	12 AWG	Plug Female Sockets	4	Screw	Green	2.5 mm²	Free Hanging (In-Line)	300 V	4

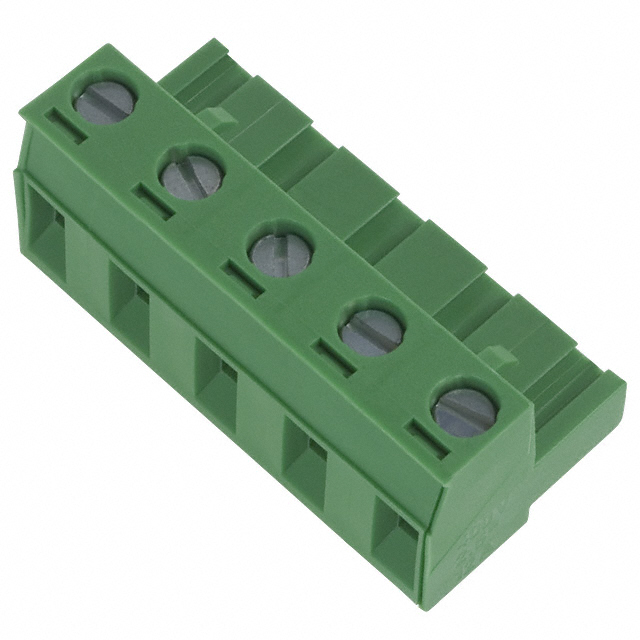

On Shore Technology Inc. EDZ960/5	6 mm	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	2.5 mm˛	Copper Tin Alloy	UL94 V-0	1	-30 ░C	105 ░C	0.3 in	7.62 mm	28 AWG	12 AWG	Plug Female Sockets	5	Screw	Green	2.5 mm²	Free Hanging (In-Line)	300 V	5
On Shore Technology Inc. EDZ960/9	6 mm	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	2.5 mm˛	Copper Tin Alloy	UL94 V-0	1	-30 ░C	105 ░C	0.3 in	7.62 mm	28 AWG	12 AWG	Plug Female Sockets	9	Screw	Green	2.5 mm²	Free Hanging (In-Line)	300 V	9
On Shore Technology Inc. EDZ960/16	6 mm	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon		Copper Tin Alloy	UL94 V-0	1	-30 ░C	105 ░C	0.3 in	7.62 mm	28 AWG	12 AWG	Plug Female Sockets	16	Screw	Green	2.5 mm²	Free Hanging (In-Line)	300 V	16
On Shore Technology Inc. EDZ960/3	6 mm	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	2.5 mm˛	Copper Tin Alloy	UL94 V-0	1	-30 ░C	105 ░C	0.3 in	7.62 mm	28 AWG	12 AWG	Plug Female Sockets		Screw	Green	2.5 mm²	Free Hanging (In-Line)	300 V	3
On Shore Technology Inc. EDZ960/2	6 mm	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon		Copper Tin Alloy	UL94 V-0	1	-30 ░C	105 ░C	0.3 in	7.62 mm	28 AWG	12 AWG	Plug Female Sockets	2	Screw	Green	2.5 mm²	Free Hanging (In-Line)	300 V	2
