R12571 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

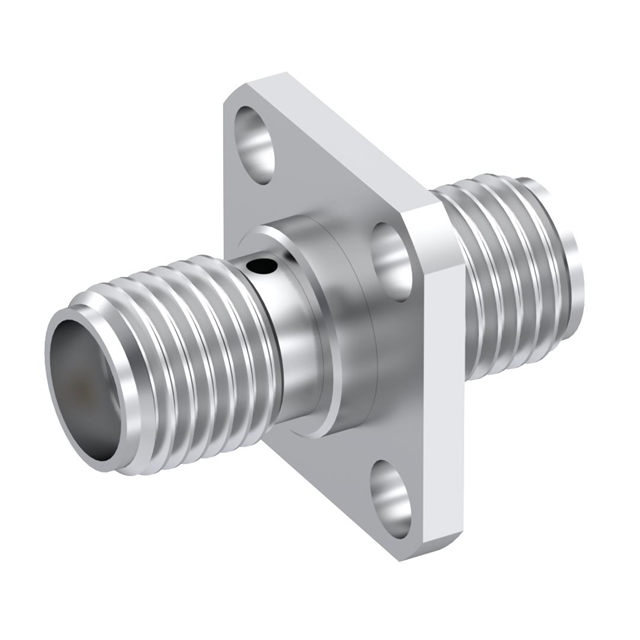

SMA / FEMALE-FEMALE SQUARE FLANG
| Part | Dielectric Material | Body Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Material | Convert To (Adapter End) | Center Gender | Mounting Feature | Adapter Series | Mounting Type | Style | Convert From (Adapter End) | Frequency - Max [Max] | Adapter Type | Center Contact Plating | Conversion Type | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Stainless Steel | 500 | -65 ░C | 165 °C | Beryllium Copper | SMA Jack Female Socket | Female to Female | Flange | SMA to SMA | Panel Mount | Straight | Female Socket SMA Jack | 18 GHz | Jack to Jack | Gold | Same Series | 50 Ohms |
