39H Series

Catalog

POWER INDUCTOR (SMD), 1.8 ΜH, 13.5 A, UNSHIELDED, 15.3 A, 3900 SERIES

Part	Package / Case	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Shielding	Inductance	Current Rating (Amps)	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Current - Saturation (Isat)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	DC Resistance (DCR)
Murata Electronics 39H182C	Nonstandard	100 kHz	3.9 mOhm	Unshielded	1.8 µH	13.5 A	20 %	0.228 "	5.8 mm	Wirewound	15.3 A	12.9 mm	0.508 in	12.9 mm	0.508 in	125 °C	-40 C	Surface Mount
Murata Electronics 39H562C	Nonstandard	100 kHz	11.4 mOhm	Unshielded	5.6 µH	8.2 A	20 %	0.228 "	5.8 mm	Wirewound	8.8 A	12.9 mm	0.508 in	12.9 mm	0.508 in	125 °C	-40 C	Surface Mount
Murata Electronics 39H722C	Nonstandard	100 kHz		Unshielded	7.2 µH	6.6 A	20 %	0.228 "	5.8 mm	Wirewound	7.8 A	12.9 mm	0.508 in	12.9 mm	0.508 in	125 °C	-40 C	Surface Mount	13.5 mOhm
Murata Electronics 39H471C	Nonstandard	100 kHz	1.9 mOhm	Unshielded	470 nH	19.5 A	30 %	0.228 "	5.8 mm	Wirewound	28.8 A	12.9 mm	0.508 in	12.9 mm	0.508 in	125 °C	-40 C	Surface Mount

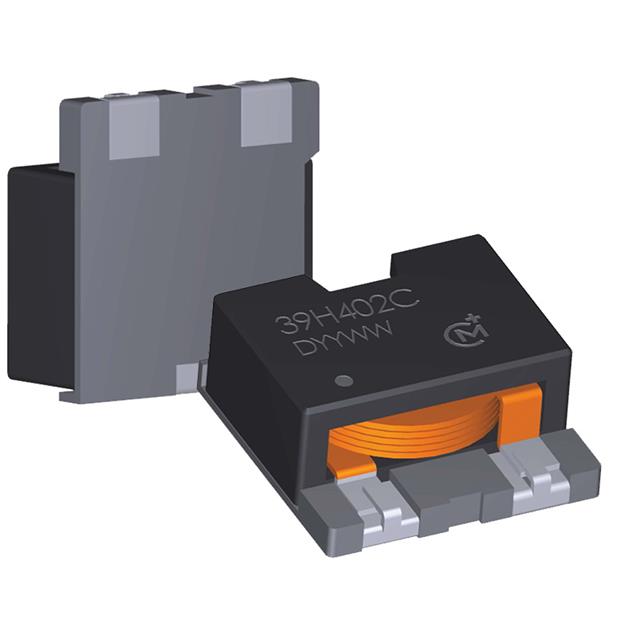

Murata Electronics 39H102C	Nonstandard	100 kHz	2.5 mOhm	Unshielded	1 µH	17.5 A	20 %	0.228 "	5.8 mm	Wirewound	20 A	12.9 mm	0.508 in	12.9 mm	0.508 in	125 °C	-40 C	Surface Mount
Murata Electronics 39H402C	Nonstandard	100 kHz	8 mOhm	Unshielded	4 µH	9.7 A	20 %	0.228 "	5.8 mm	Wirewound	10.3 A	12.9 mm	0.508 in	12.9 mm	0.508 in	125 °C	-40 C	Surface Mount
Murata Electronics 39H282C	Nonstandard	100 kHz	5.4 mOhm	Unshielded	2.8 µH	11 A	20 %	0.228 "	5.8 mm	Wirewound	12.3 A	12.9 mm	0.508 in	12.9 mm	0.508 in	125 °C	-40 C	Surface Mount
