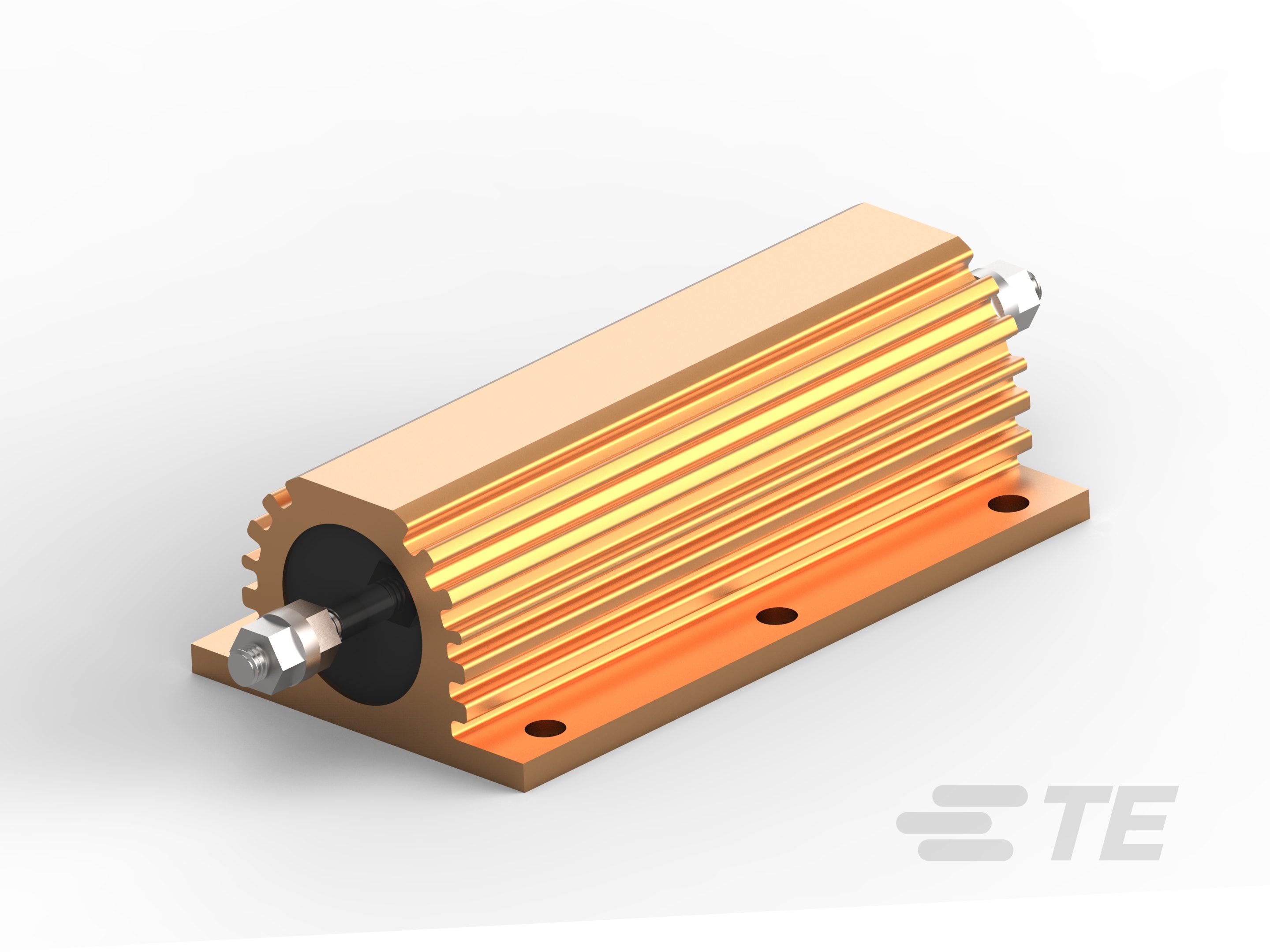

CGS HS Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

RES CHAS MNT 180 OHMS 5% 350W

...

Part	Power (Watts)	Features	Composition	Coating, Housing Type	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Resistance	Lead Style	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Feature	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
TE Connectivity AMP Connectors HSHC350180RJ	350 W	High Voltage	Wirewound	Aluminum	5 %	200 °C	-55 C	25 ppm/°C	2.874 in	147 mm	73 mm	5.787 "	180 Ohms	Terminal Screw Type	Axial Box	42 mm	1.654 in	Flanges
TE Connectivity AMP Connectors HSHC500120RJ	500 W	High Voltage	Wirewound	Aluminum	5 %	200 °C	-55 C	25 ppm/°C	2.874 in	204 mm		8.031 in	120 Ohms	Terminal Screw Type	Axial Box	42 mm	1.654 in	Flanges	73 mm
TE Connectivity AMP Connectors HSA502R4J	50 W		Wirewound	Aluminum	5 %	200 °C	-55 C	50 ppm/░C	1.181 in	51 mm		2.008 "	2.4 Ohms	Solder Lugs	Axial Box		0.669 "	Flanges	30 mm	17 mm
TE Connectivity AMP Connectors HSHC50039RJ	500 W	High Voltage	Wirewound	Aluminum	5 %	200 °C	-55 C	50 ppm/░C	2.874 in	204 mm		8.031 in	39 Ohms	Terminal Screw Type	Axial Box	42 mm	1.654 in	Flanges	73 mm
TE Connectivity AMP Connectors HSC150S18RJ	150 W	High Voltage	Wirewound	Aluminum	5 %	200 °C	-55 C	50 ppm/░C	1.89 in	98 mm		3.858 "	18 Ohms	Terminal Screw Type	Axial Box			Flanges	48 mm	24 mm	0.945 "
TE Connectivity AMP Connectors HSHC3503K9J	350 W	High Voltage	Wirewound	Aluminum	5 %	200 °C	-55 C	25 ppm/°C	2.874 in	147 mm	73 mm	5.787 "	3.9 kOhms	Terminal Screw Type	Axial Box	42 mm	1.654 in	Flanges
TE Connectivity AMP Connectors HSHC4503R3J	450 W	High Voltage	Wirewound	Aluminum	5 %	200 °C	-55 C	50 ppm/░C	2.874 in	185 mm		7.283 "	3.3 Ohms	Terminal Screw Type	Axial Box	42 mm	1.654 in	Flanges	73 mm
TE Connectivity AMP Connectors HSC200R13J	200 Watts		Wirewound	Aluminum	5 %	200 °C	-55 C	50 ppm/░C	2.874 in	90 mm		3.543 in	0.13 Ohms	Terminal Screw Type	Axial Box	42 mm	1.654 in	Flanges	73 mm
TE Connectivity AMP Connectors HSHC40056RJ	400 W	High Voltage	Wirewound	Aluminum	5 %	200 °C	-55 C	50 ppm/░C	2.874 in	166 mm	73 mm	6.535 in	56 Ohms	Terminal Screw Type	Axial Box	42 mm	1.654 in	Flanges
TE Connectivity AMP Connectors HSC25010RJ	250 W		Wirewound	Aluminum	5 %	200 °C	-55 C	50 ppm/░C	2.874 in	109 mm		4.291 in	10 Ohms	Terminal Screw Type	Axial Box	42 mm	1.654 in	Flanges	73 mm
