APX-I Series
Manufacturer: OptiFuse
Beta
⌘K
FUSE AUTO 20A 32VDC BLADE MAX
| Part | Approval Agency | Package / Case | Breaking Capacity @ Rated Voltage | Mounting Type | Color | Voltage Rating - DC | Current Rating (Amps) | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Fuse Type | Response Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

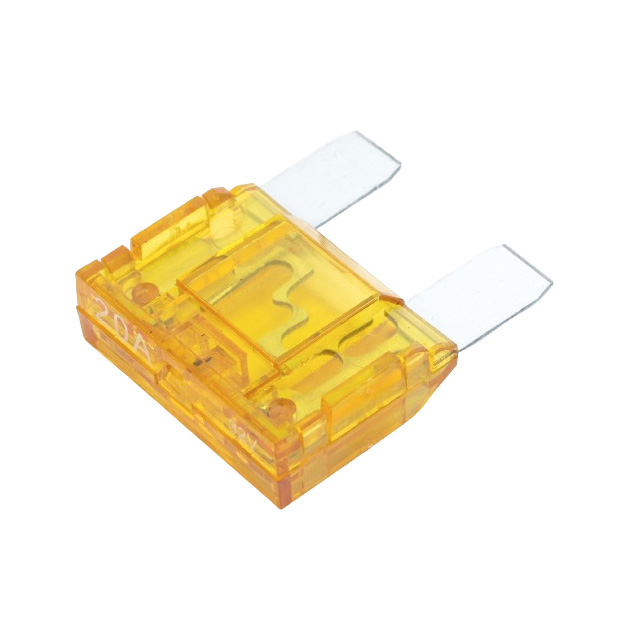

 OptiFuse | ISO SAE | Blade Max | 1 kA | Requires Holder | Yellow | 32 V | 20 A | 0.862 in | 29.5 mm | 1.161 " | 0.358 in | 21.9 mm | 9.1 mm | Automotive | Fast Blow |

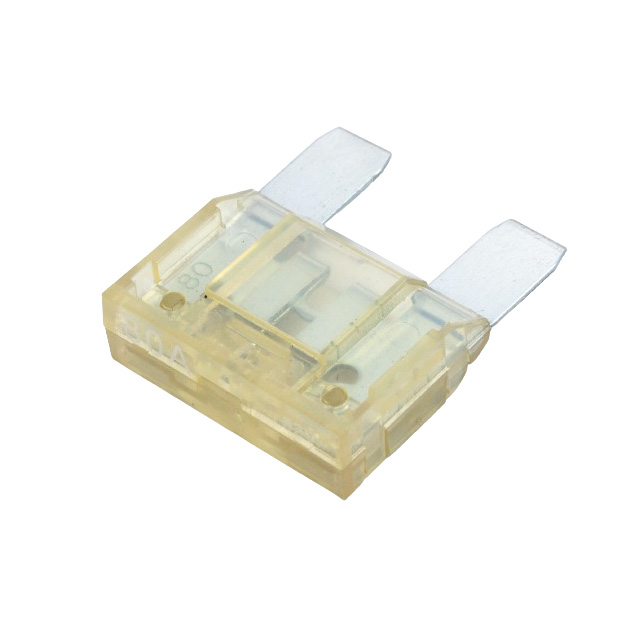

 OptiFuse | ISO SAE | Blade Max | 1 kA | Requires Holder | Clear | 32 V | 80 A | 0.862 in | 29.5 mm | 1.161 " | 0.358 in | 21.9 mm | 9.1 mm | Automotive | Fast Blow |

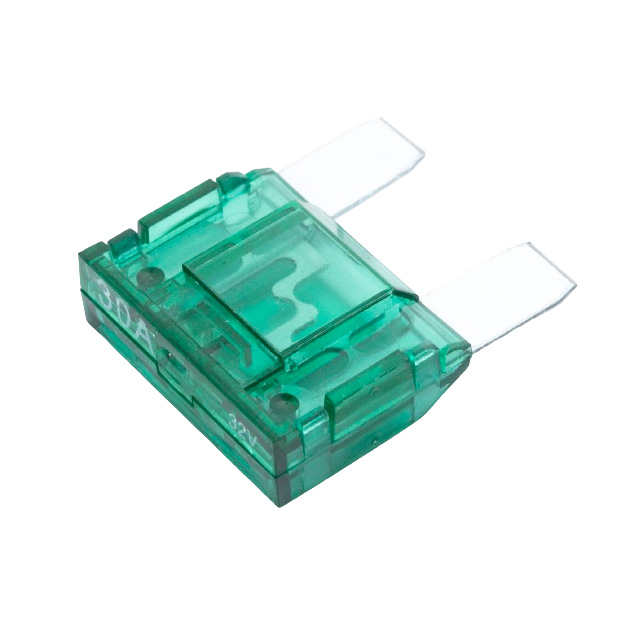

 OptiFuse | ISO SAE | Blade Max | 1 kA | Requires Holder | Green | 32 V | 30 A | 0.862 in | 29.5 mm | 1.161 " | 0.358 in | 21.9 mm | 9.1 mm | Automotive | Fast Blow |

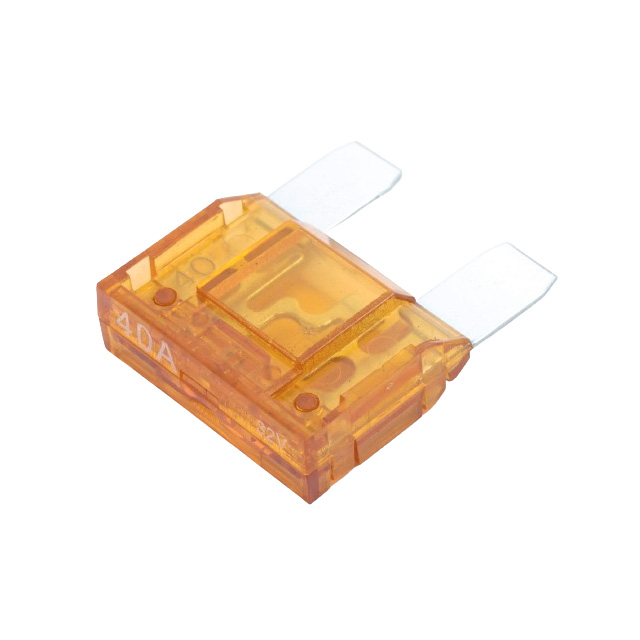

 OptiFuse | ISO SAE | Blade Max | 1 kA | Requires Holder | 32 V | 40 A | 0.862 in | 29.5 mm | 1.161 " | 0.358 in | 21.9 mm | 9.1 mm | Automotive | Fast Blow | |

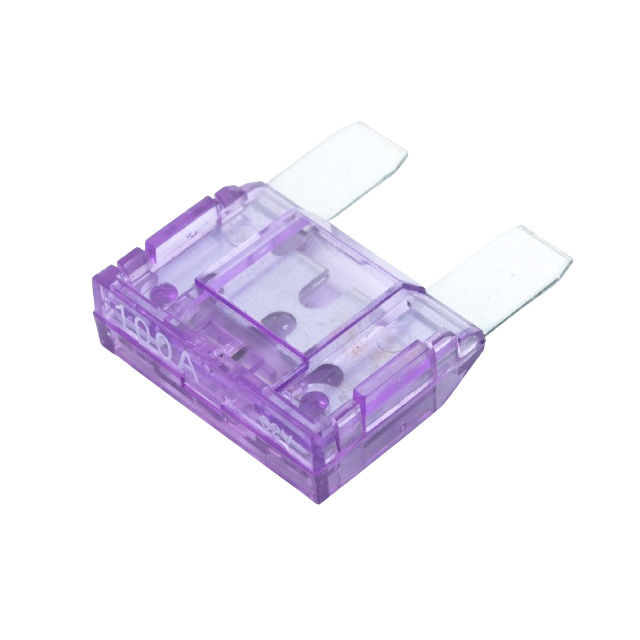

 OptiFuse | ISO SAE | Blade Max | 1 kA | Requires Holder | Violet | 32 V | 100 A | 0.862 in | 29.5 mm | 1.161 " | 0.358 in | 21.9 mm | 9.1 mm | Automotive | Fast Blow |

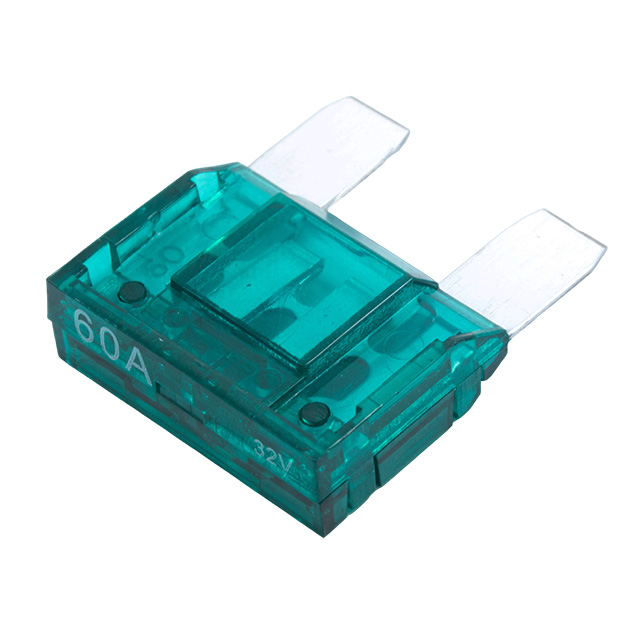

 OptiFuse | ISO SAE | Blade Max | 1 kA | Requires Holder | Blue | 32 V | 60 A | 0.862 in | 29.5 mm | 1.161 " | 0.358 in | 21.9 mm | 9.1 mm | Automotive | Fast Blow |
