45850 Series
Manufacturer: Laird Thermal Systems, Inc.
Beta
⌘K

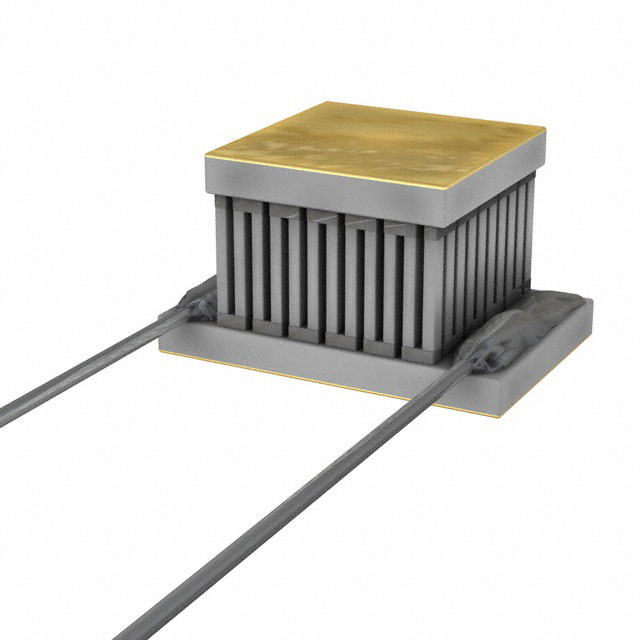

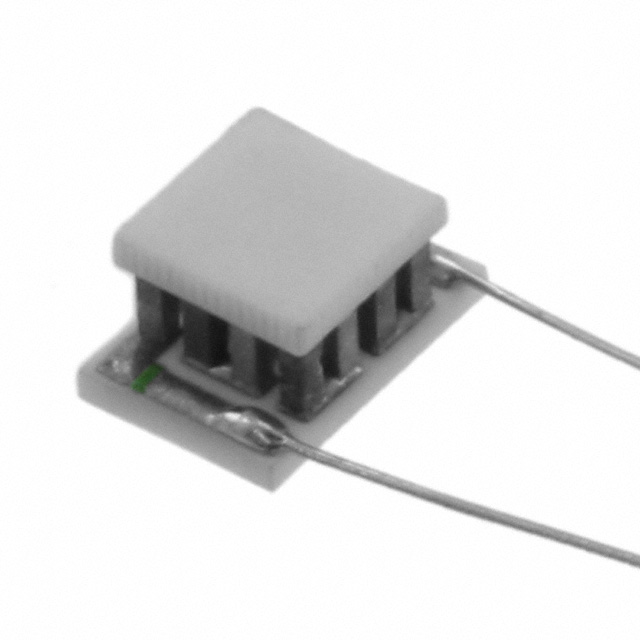

PELTIER OT08,08,F0,0303,11,W2.25
| Part | Voltage - Max [Max] | Qmax @ Th | Number of Stages | Size / Dimension [y] | Size / Dimension [x] | Features | Current - Max [Max] | Delta Tmax @ Th | Operating Temperature | Height [z] | Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Laird Thermal Systems, Inc. | 1 V | 0.4 W | 1 | 3.4 mm | 5 mm | Lapped Lead Wires Non-Sealed | 800 mA | 67 °C | 80 °C | 2.65 mm | 1.04 Ohms |
 Laird Thermal Systems, Inc. | 1 V | 0.4 W | 1 | 3.4 mm | 3.4 mm | Lead Wires Non-Sealed | 800 mA | 67 °C | 80 °C | 2.79 mm | 1.18 Ohms |
