MIN7.5BP Series

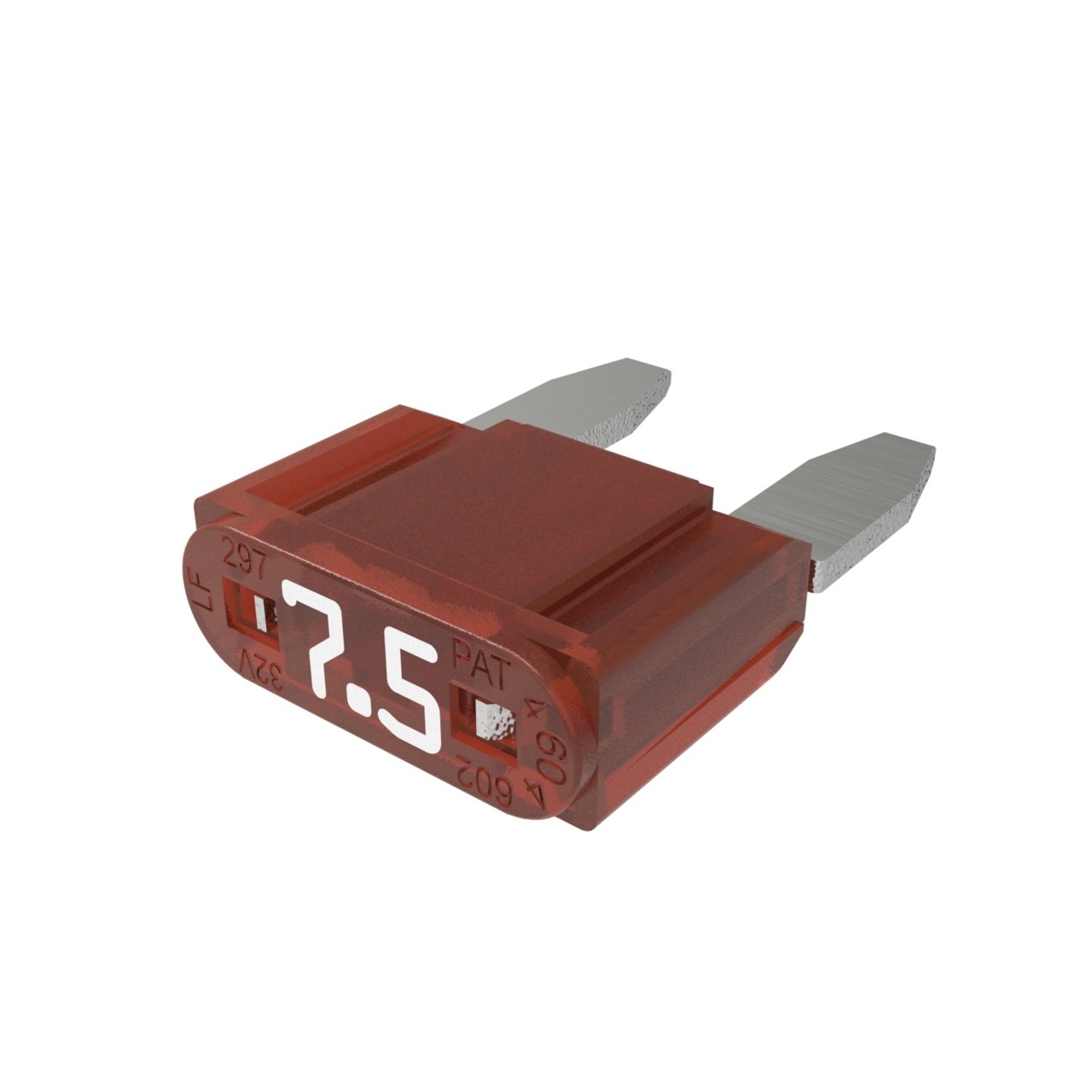

Fuse - Mini Blade 32V 7.5A 5-pc card

Catalog

Fuse - Mini Blade 32V 7.5A 5-pc card

Part	Approval Agency	Voltage Rating - AC	Voltage Rating - DC	Current Rating (Amps)	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Color	Fuse Type	Response Time	Package / Case
Littelfuse/Commercial Vehicle Products 0MIN07.5VP	SAE	32 V	32 V	7.5 A	Requires Holder	3.8 mm	0.429 "	8.8 mm	0.15 "	0.346 inches	10.9 mm	Brown	Automotive	Fast Blow	Blade Miniature

Fuse - Mini Blade 32V 7.5A 5-pc card

• Brown housing indicates 7.5 A rating

• Tin-plated zinc alloy terminals

• Net weight 0.57 g ±5 %

• UL Listed

• Complies with SAE J2077 and ISO 8820-3

Use this 7.5 A MINI® 32V automotive blade fuse to replace a blown MINI fuse of the same rating.
