M2022LL Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE DPDT 0.4VA 28V

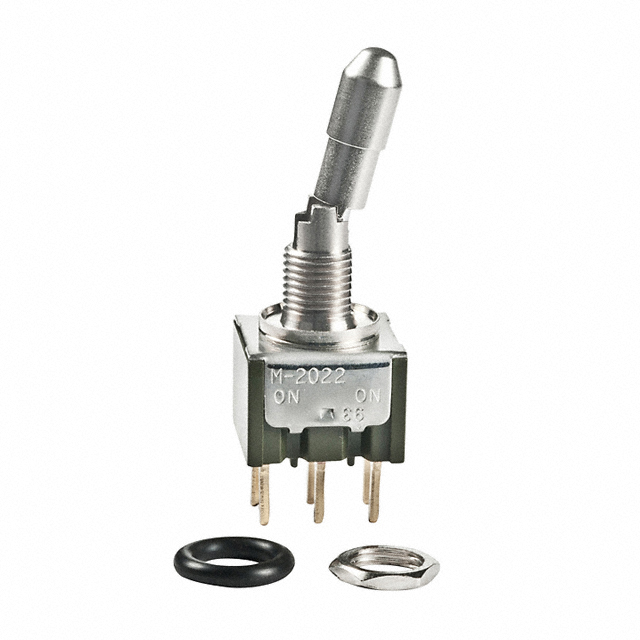

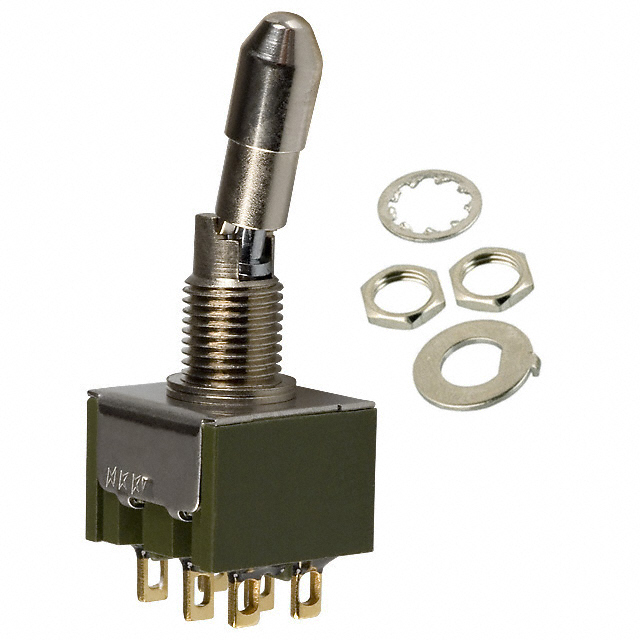

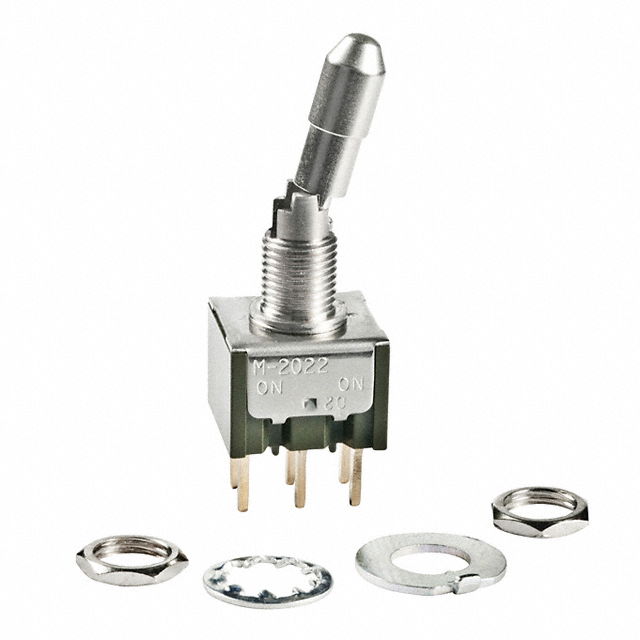

| Part | Electrical Life | Actuator Material | Illumination | Circuit | Switch Function | Bushing Thread | Features | Ingress Protection | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Length [x] | Voltage Rating - AC | Mounting Type | Current Rating (Amps) | Voltage Rating - DC | Panel Cutout Dimensions [diameter] | Termination Style | Bushing Thread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 50000 Cycles | Brass Chrome Plated | Non-Illuminated | DPDT | On-On | 1/4-40 | Epoxy Sealed Terminals | IP67 - Dust Tight Waterproof | Locking Lever | 85 °C | -30 ░C | 16.5 mm | 28 V | Panel Mount | 0.4 VA | 28 V | 6.5 mm | PC Pin | |
 NKK Switches | 25000 Steps | Brass Chrome Plated | Non-Illuminated | DPDT | On-On | 1/4-40 | Epoxy Sealed Terminals | Locking Lever | 85 °C | -30 ░C | 16.5 mm | 125 V | Panel Mount | 4 A 6 A | 30 V | 6.5 mm | Wire Wrap | ||

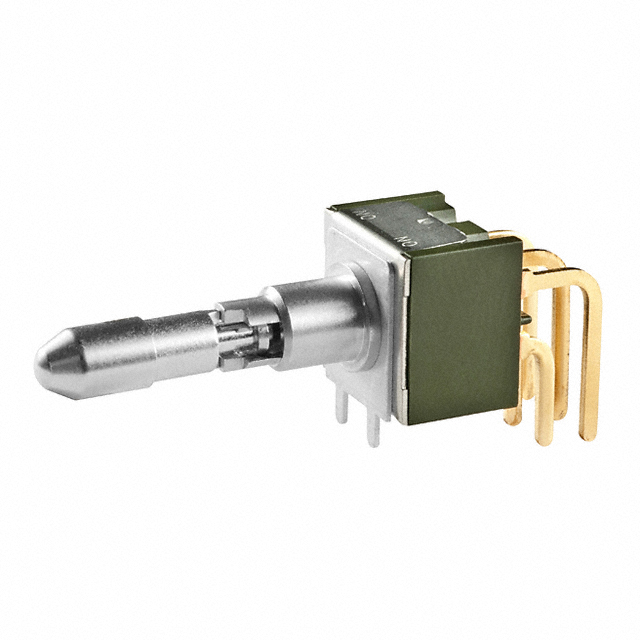

 NKK Switches | 25000 Steps | Brass Chrome Plated | Non-Illuminated | DPDT | On-On | Unthreaded | Epoxy Sealed Terminals | Locking Lever | 85 °C | -30 ░C | 16.5 mm | 125 V | Right Angle Through Hole | 4 A 6 A | 30 V | PC Pin | |||

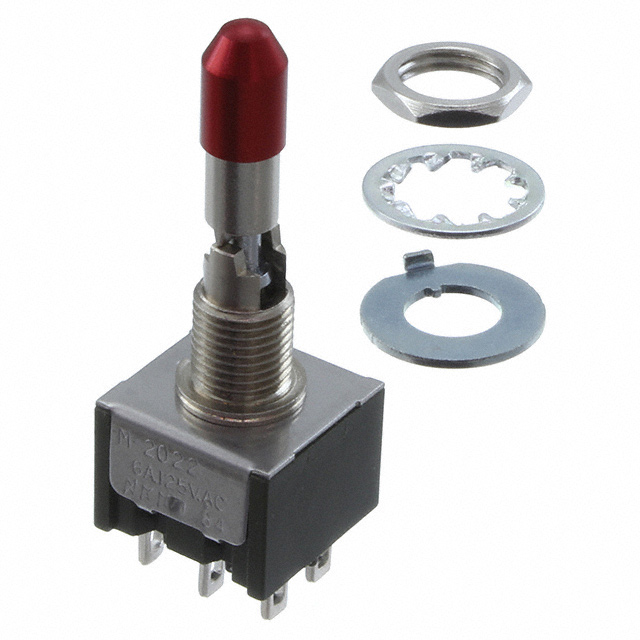

 NKK Switches | 25000 Steps | Brass Chrome Plated | Non-Illuminated | DPDT | On-On | 1/4-40 | Red Cap | Locking Lever | 85 °C | -30 ░C | 16.5 mm | 125 V | Panel Mount | 4 A 6 A | 30 V | 6.5 mm | Solder Lug | ||
 NKK Switches | 25000 Steps | Brass Chrome Plated | Non-Illuminated | DPDT | On-On | M6 | Epoxy Sealed Terminals | Locking Lever | 85 °C | -30 ░C | 16.5 mm | 28 V | Panel Mount | 0.4 VA | 28 V | 6.5 mm | Solder Lug | 0.75 | |
NKK Switches | 25000 Steps | Brass Chrome Plated | Non-Illuminated | DPDT | On-On | 1/4-40 | Gray Cap | Locking Lever | 85 °C | -30 ░C | 16.5 mm | 125 V | Panel Mount | 4 A 6 A | 30 V | 6.5 mm | Solder Lug | ||
NKK Switches | 50000 Cycles | Brass Chrome Plated | Non-Illuminated | DPDT | On-On | Unthreaded | Epoxy Sealed Terminals | Locking Lever | 85 °C | -30 ░C | 16.5 mm | 28 V | Through Hole | 0.4 VA | 28 V | PC Pin | |||
 NKK Switches | 50000 Cycles | Brass Chrome Plated | Non-Illuminated | DPDT | On-On | 1/4-40 | Epoxy Sealed Terminals | Locking Lever | 85 °C | -30 ░C | 16.5 mm | 28 V | Panel Mount | 0.4 VA | 28 V | 6.5 mm | PC Pin | ||
NKK Switches | 25000 Steps | Brass Chrome Plated | Non-Illuminated | DPDT | On-On | M6 | Locking Lever | 85 °C | -30 ░C | 5.1 mm | 125 V | Panel Mount | 4 A 6 A | 30 V | 6.5 mm | Quick Connect - 0.062" (1.5mm) | 0.75 | ||
NKK Switches | 25000 Steps | Brass Chrome Plated | Non-Illuminated | DPDT | On-On | M6 | Epoxy Sealed Terminals | Locking Lever | 85 °C | -30 ░C | 16.5 mm | 125 V | Panel Mount | 4 A 6 A | 30 V | 6.5 mm | PC Pin | 0.75 |
