001531 Series

Manufacturer: Molex

Catalog

CONN RCPT HSG 15POS 4.80MM

Part	Note	Number of Rows [custom]	Pitch	Pitch	Row Spacing	Row Spacing	Fastening Type	Connector Type	Mounting Type	Number of Positions	Contact Termination	Contact Type	Applications	Pitch - Mating	Pitch - Mating	Style	Insulation Height [custom]	Insulation Height [custom]	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Contact Shape	Material Flammability Rating	Features	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Finish - Post	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Material	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows
Molex 0015311152	Contacts Not Included	3	0.189 in	4.8 mm	4.8 mm	0.189 in	Latch Lock	Receptacle	Free Hanging (In-Line)	15	Crimp	Female Socket
Molex 0015311153	Contacts Not Included	3	0.189 in	4.8 mm	4.8 mm	0.189 in	Locking Ramp	Plug	Panel Mount	15	Crimp	Male Pin

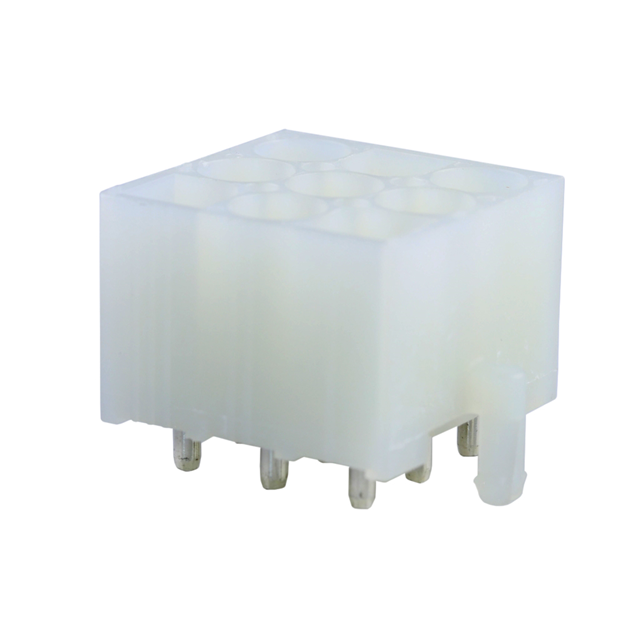

Molex 0015312096		3					Locking Ramp	Header	Through Hole	9		Male Pin	General Purpose Telecommunications	0.264 in	6.71 mm	Board to Cable/Wire	0.591 in	15 mm	6.71 mm	0.264 in	Natural	Circular	UL94 V-2	Board Lock	0.138 in	3.5 mm	All	Tin	Nylon 6/6 Polyamide (PA66)	120 µin	3.05 µm	Shrouded - 4 Wall	Brass	Solder

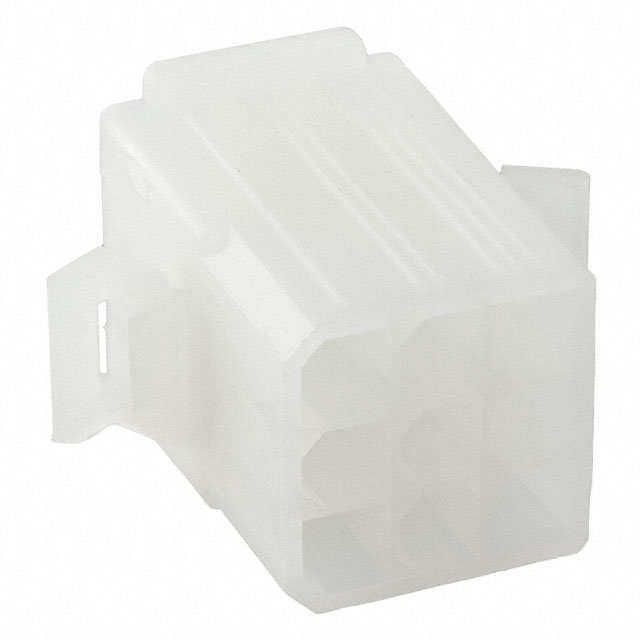

Molex 0015311091	Contacts Not Included	3	0.189 in	4.8 mm	4.8 mm	0.189 in	Locking Ramp	Plug	Panel Mount Snap-In	9	Crimp	Male Pin																	Nylon 6/6 Polyamide (PA66)						-40 C	105 ░C

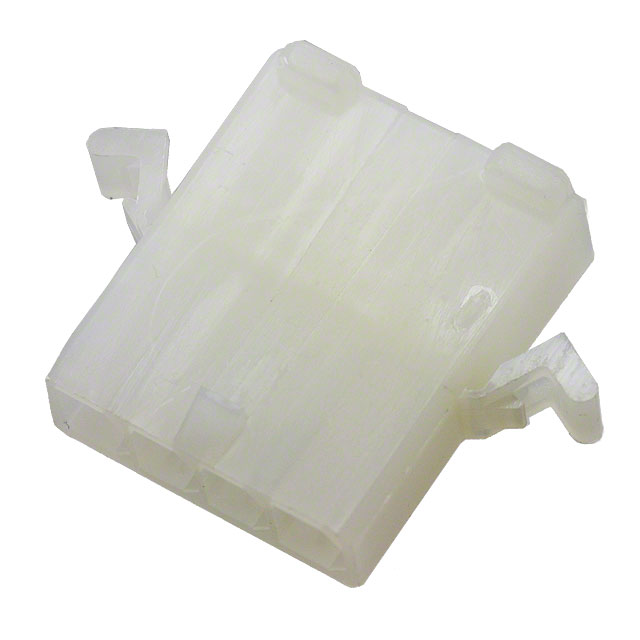

Molex 0015311041	Contacts Not Included		0.189 in	4.8 mm			Locking Ramp	Plug	Panel Mount Snap-In	4	Crimp	Male Pin																	Nylon 6/6 Polyamide (PA66)						-40 C	105 ░C	1

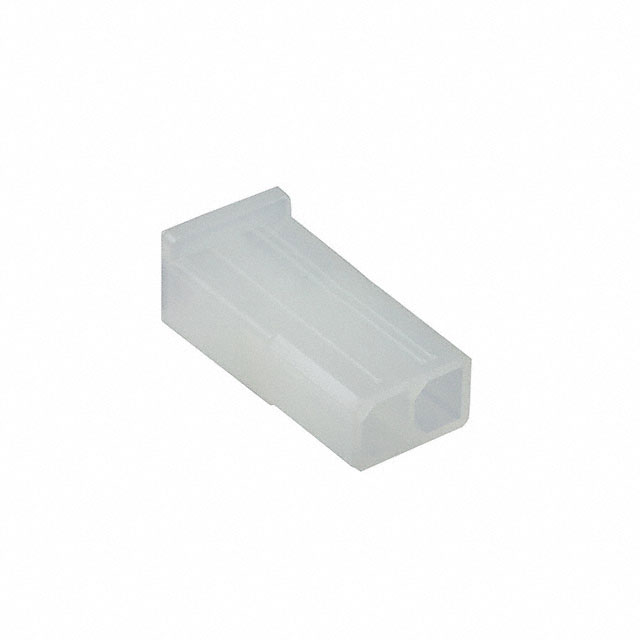

Molex 0015311023	Contacts Not Included		0.189 in	4.8 mm			Locking Ramp	Plug	Panel Mount	2	Crimp	Male Pin																	Nylon 6/6 Polyamide (PA66)						-40 C	105 ░C	1
Molex 0015311043	Contacts Not Included		0.189 in	4.8 mm			Locking Ramp	Plug	Panel Mount	4	Crimp	Male Pin																	Nylon 6/6 Polyamide (PA66)						-40 C	105 ░C	1

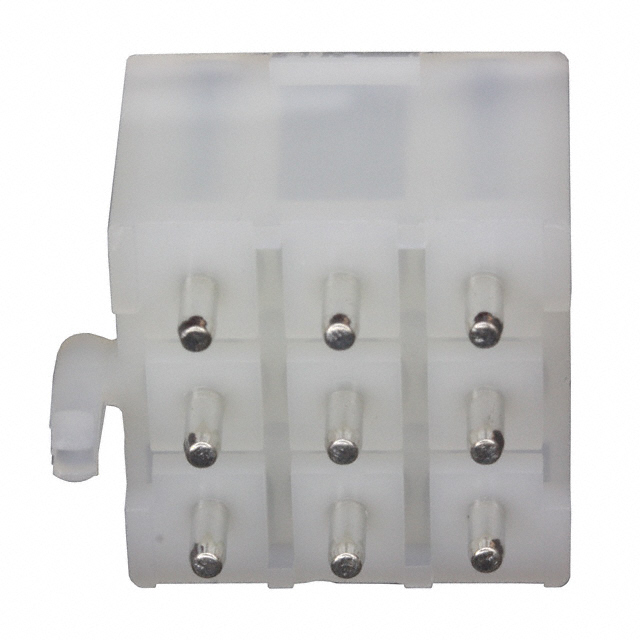

Molex 0015311096		3					Locking Ramp	Header	Through Hole	9		Male Pin	General Purpose Telecommunications	0.264 in	6.71 mm	Board to Cable/Wire	0.591 in	15 mm	6.71 mm	0.264 in	Natural	Circular	UL94 V-2	Board Lock	0.138 in	3.5 mm	All	Tin	Nylon 6/6 Polyamide (PA66)	120 µin	3.05 µm	Shrouded - 4 Wall	Brass	Solder

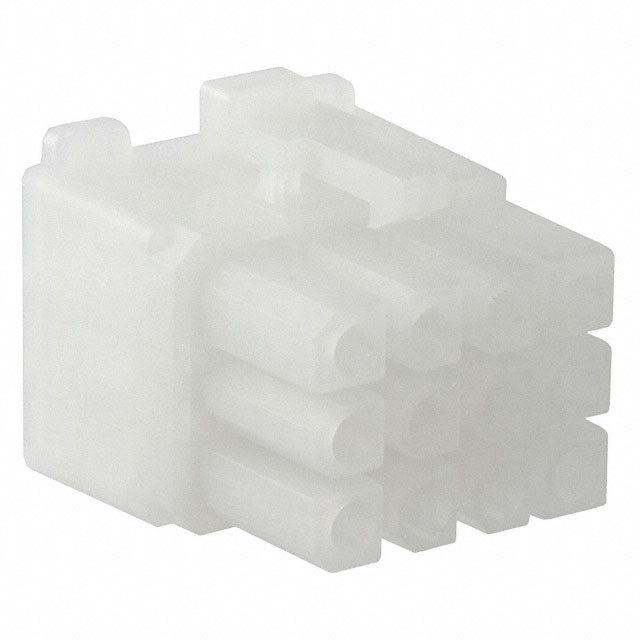

Molex 0015311122	Contacts Not Included	3	0.189 in	4.8 mm	4.8 mm	0.189 in	Latch Lock	Receptacle	Free Hanging (In-Line)	12	Crimp	Female Socket																	Nylon 6/6 Polyamide (PA66)						-40 C	105 ░C

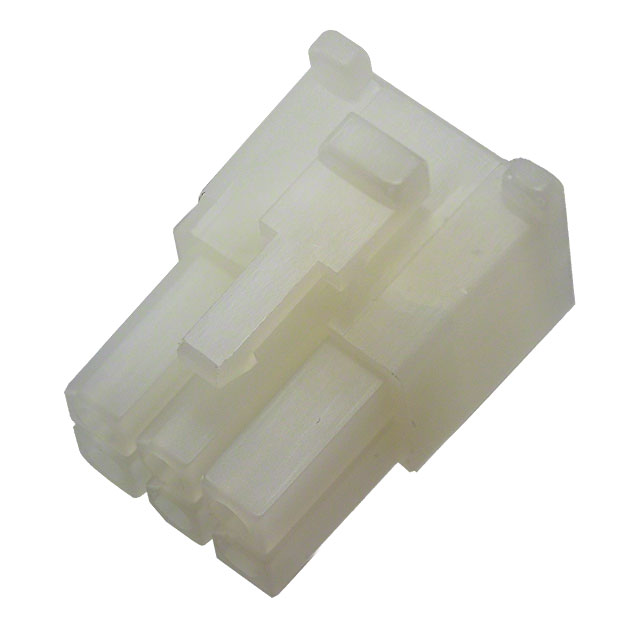

Molex 0015311062	Contacts Not Included	2	0.189 in	4.8 mm	4.8 mm	0.189 in	Latch Lock	Receptacle	Free Hanging (In-Line)	6	Crimp	Female Socket																	Nylon 6/6 Polyamide (PA66)						-40 C	105 ░C
