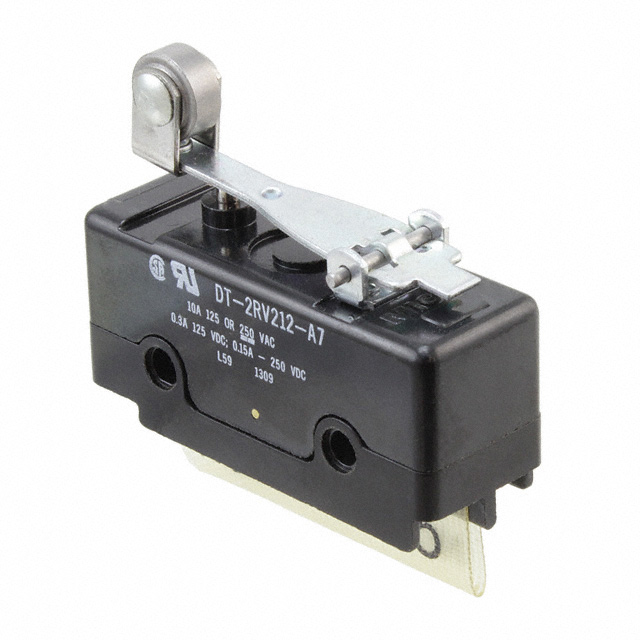

DT-2RV Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION DPDT 10A 125V
| Part | Termination Style | Operating Position | Operating Position | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Operating Force [Min] | Operating Force [Max] | Voltage Rating - DC | Pretravel | Pretravel | Actuator Type | Circuit | Differential Travel | Differential Travel | Current Rating (Amps) | Overtravel | Overtravel | Switch Function | Mounting Type | Release Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Screw Terminal | 29.4 mm | 1.156 " | 85 °C | -55 °C | 125 V | 255 gf | 425 gf | 125 VDC | 3.3 mm | 0.131 in | Lever Roller | DPDT | 2.16 mm | 0.085 in | 10 A 300 mA | 0.13 mm | 0.005 in | On-Mom | Chassis Mount | |
 Honeywell Sensing and Productivity Solutions | Screw Terminal | 85 °C | -55 °C | 125 V | 127 gf | 212 gf | 125 VDC | Lever Roller | DPDT | 14.35 mm | 0.565 " | 10 A 300 mA | 1.2 mm | 0.047 " | On-Mom | Chassis Mount | |||||
 Honeywell Sensing and Productivity Solutions | Screw Terminal | 21.8 mm | 0.859 in | 85 °C | -55 °C | 125 V | 99 gf | 170 gf | 125 VDC | 25.4 mm | 1 in | Lever Straight | DPDT | 19.2 mm | 0.755 " | 10 A 300 mA | 1.6 mm | 0.062 in | On-Mom | Chassis Mount | 28 gf |
