MDM-2 Series

Catalog

MICRO 21 F SOD JACKP A174

Part	Contact Material	Wire Gauge	Dielectric Material	Number of Positions	Contact Finish	Flange Feature	Contact Type	Shell Size, Connector Layout [y]	Shell Size, Connector Layout [x]	Connector Style	Shell Material, Finish	Connector Type	Mounting Type	Primary Material	Current Rating (Amps)	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Termination	Features	2nd Connector	Color	Type	1st Connector	Length	Length
ITT Cannon, LLC MDM-21SSM7-A174	Copper Alloy	26 AWG	Liquid Crystal Polymer (LCP)	21	Gold	Mating Side Female Screwlock (2-56)	Signal	0.043 in	0.05 in	D-Type Micro-D	Aluminum Alloy Electroless Nickel Plated	Receptacle Female Sockets	Free Hanging (In-Line)	Metal	3 A	2
ITT Cannon, LLC MDM-25PBR	Copper Alloy		Liquid Crystal Polymer (LCP)	25	Gold	Housing/Shell (Unthreaded)	Signal			D-Type Micro-D	Aluminum Yellow Chromate Plated Cadmium	Plug Male Pins	Panel Mount Right Angle Through Hole		3 A	2	-55 C	125 °C	0.1	0.05	Solder	Shielded
ITT Cannon, LLC MDM-21PBRP-TL56

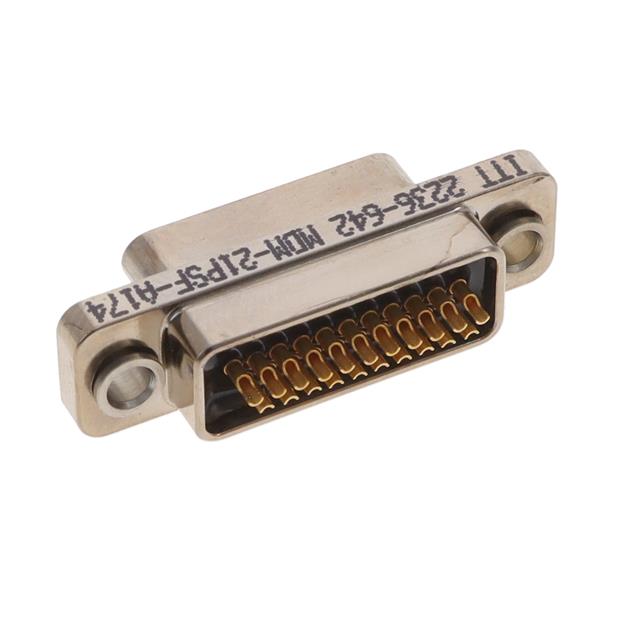

ITT Cannon, LLC MDM-21PSF-A174	Copper Alloy	26 AWG	Liquid Crystal Polymer (LCP)	21	Gold	Housing/Shell (Unthreaded)	Signal	0.043 in	0.05 in	D-Type Micro-D	Aluminum Alloy Electroless Nickel Plated	Plug Male Pins	Panel Mount	Metal	3 A	2
ITT Cannon, LLC MDM-25SH002B				25	Gold																		Individual Wire Leads	Individual Multiple	D-Type Micro-D	Receptacle Female Sockets	1 ft	304.8 mm
ITT Cannon, LLC MDM-25SH004P				25	Gold																		Individual Wire Leads	Individual Multiple	D-Type Micro-D	Receptacle Female Sockets	2 ft	609.6 mm

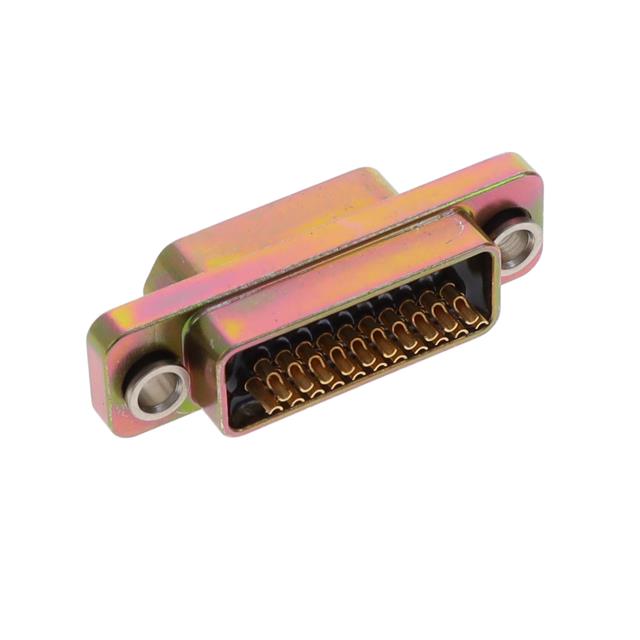

ITT Cannon, LLC MDM-21PSF	Copper Alloy		Liquid Crystal Polymer (LCP)	21	Gold	Housing/Shell (Unthreaded)	Signal	0.043 in	0.05 in	D-Type Micro-D	Aluminum Yellow Chromate Plated Cadmium	Plug Male Pins	Panel Mount		3 A	2	-55 C	125 °C				Shielded
ITT Cannon, LLC MDM-25PBSPTL57A174

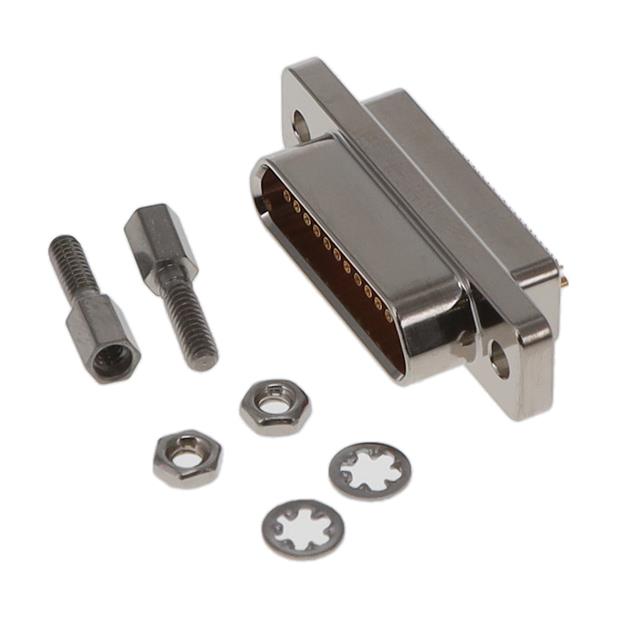

ITT Cannon, LLC MDM-25SSM7-A174	Copper Alloy	26 AWG	Liquid Crystal Polymer (LCP)	25	Gold	Mating Side Female Screwlock (2-56)	Signal	0.043 in	0.05 in	D-Type Micro-D	Aluminum Alloy Electroless Nickel Plated	Receptacle Female Sockets	Free Hanging (In-Line)	Metal	3 A	2
ITT Cannon, LLC MDM-25SH027L-A174	Copper Alloy		Liquid Crystal Polymer (LCP)	25	Gold	2-56 Cable Side Male Jackscrew	Signal	0.043 in	0.05 in	D-Type Micro-D	Aluminum Electroless Nickel Plated	Receptacle Female Sockets	Panel Mount		3 A	2	-55 C	125 °C			Wire Leads	Shielded
