VPDD102 Series

Catalog

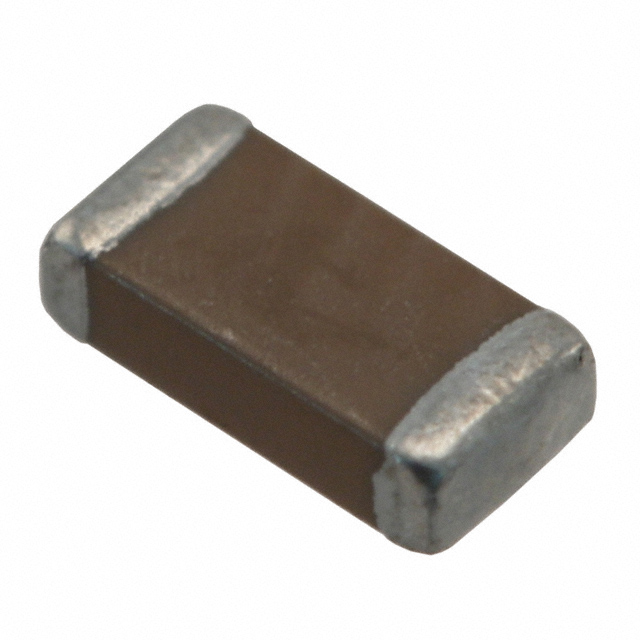

CAP CER 2200PF 1KV X7R 1206

Part	Temperature Coefficient	Tolerance	Features	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Rated	Voltage - Rated	Thickness (Max) [Max] [z]	Thickness (Max) [Max] [z]	Mounting Type	Capacitance	Applications	Operating Temperature [Min]	Operating Temperature [Max]
Johanson Technology Inc. VPDD102W222K1GF001E	X7R	10 %	High Voltage Soft Termination	1206 (3216 Metric)	1.57 mm	0.062 in	3.18 mm	0.125 "	1 kV	1000 V	0.067 "	1.7 mm	MLCC Surface Mount	2200 pF	Boardflex Sensitive SMPS Filtering	-55 C	125 °C
Johanson Technology Inc. VPDD102G101J1GV001E	C0G NP0	5 %	High Voltage	1206 (3216 Metric)	1.57 mm	0.062 in	3.18 mm	0.125 "	1 kV	1000 V	0.067 "	1.7 mm	MLCC Surface Mount	100 pF	SMPS Filtering	-55 C	125 °C
Johanson Technology Inc. VPDD102G331J1GV001E	C0G NP0	5 %	High Voltage	1206 (3216 Metric)	1.57 mm	0.062 in	3.18 mm	0.125 "	1 kV	1000 V	0.067 "	1.7 mm	MLCC Surface Mount	330 pF	SMPS Filtering	-55 C	125 °C
Johanson Technology Inc. VPDD102W222K1GV001E	X7R	10 %	High Voltage	1206 (3216 Metric)	1.57 mm	0.062 in	3.18 mm	0.125 "	1 kV	1000 V	0.067 "	1.7 mm	MLCC Surface Mount	2200 pF	SMPS Filtering	-55 C	125 °C
Johanson Technology Inc. VPDD102W101K1GV001E	X7R	10 %	High Voltage	1206 (3216 Metric)	1.57 mm	0.062 in	3.18 mm	0.125 "	1 kV	1000 V	0.067 "	1.7 mm	MLCC Surface Mount	100 pF	SMPS Filtering	-55 C	125 °C
Johanson Technology Inc. VPDD102W102K1GF001E	X7R	10 %	High Voltage Soft Termination	1206 (3216 Metric)	1.57 mm	0.062 in	3.18 mm	0.125 "	1 kV	1000 V	0.067 "	1.7 mm	MLCC Surface Mount	0.001 µF	Boardflex Sensitive SMPS Filtering	-55 C	125 °C
Johanson Technology Inc. VPDD102G470J1GV001E	C0G NP0	5 %	High Voltage	1206 (3216 Metric)	1.57 mm	0.062 in	3.18 mm	0.125 "	1 kV	1000 V	0.067 "	1.7 mm	MLCC Surface Mount	47 pF	SMPS Filtering	-55 C	125 °C
Johanson Technology Inc. VPDD102G151J1GV001E	C0G NP0	5 %	High Voltage	1206 (3216 Metric)	1.57 mm	0.062 in	3.18 mm	0.125 "	1 kV	1000 V	0.067 "	1.7 mm	MLCC Surface Mount	150 pF	SMPS Filtering	-55 C	125 °C
Johanson Technology Inc. VPDD102W102K1GV001E	X7R	10 %	High Voltage	1206 (3216 Metric)	1.57 mm	0.062 in	3.18 mm	0.125 "	1 kV	1000 V	0.067 "	1.7 mm	MLCC Surface Mount	0.001 µF	SMPS Filtering	-55 C	125 °C
