HG2-AC Series

Manufacturer: Panasonic Electronic Components

Catalog

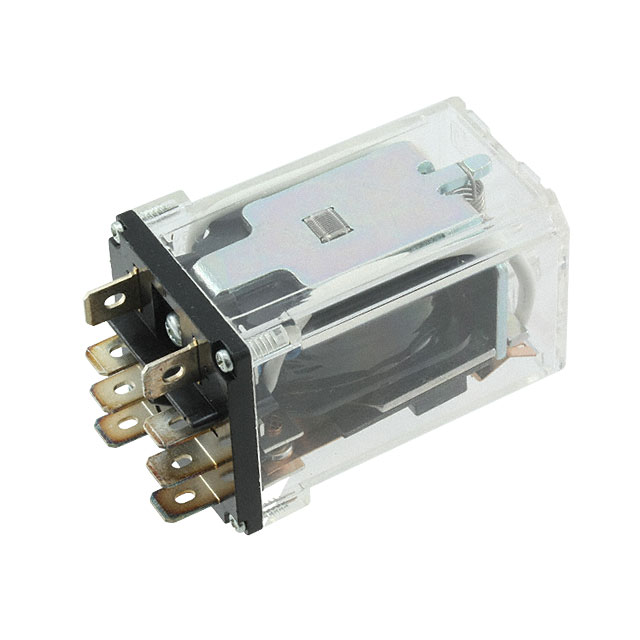

RELAY GEN PURPOSE DPDT 20A 115V

Part	Coil Resistance	Relay Type	Termination Style	Approval Agency	Release Time	Switching Voltage	Operate Time	Contact Form	Must Release Voltage	Contact Material	Contact Rating (Current)	Mounting Type	Coil Current	Coil Type	Operating Temperature [Min]	Operating Temperature [Max]	Must Operate Voltage	Coil Voltage
Panasonic Electronic Components HG2-AC115V-F	3674 Ohms	General Purpose	Plug In Quick Connect - 0.250" (6.3mm)	CSA UR	30 ms	250 VAC	30 ms	DPDT (2 Form C)	34.5 VAC	Silver Tin Oxide (AgSnO)	20 A	Socketable	31.3 mA	Non Latching	-50 °C	40 °C	92 VAC/DC	115 VAC
Panasonic Electronic Components HG2-AC12V	40 Ohms	General Purpose	Plug In Quick Connect - 0.250" (6.3mm)	CSA UR	15 ms	250 VAC	15 ms	DPDT (2 Form C)	3.6 VAC	Silver Alloy	20 A	Socketable	300 mA	Non Latching	-50 °C	40 °C	9.6 VAC/DC	12 VAC
Panasonic Electronic Components HG2-AC240V	16 kOhms	General Purpose	Plug In Quick Connect - 0.250" (6.3mm)	CSA UR	15 ms	250 VAC	15 ms	DPDT (2 Form C)	72 VAC/DC	Silver Alloy	20 A	Socketable	0.015 A	Non Latching	-50 °C	40 °C	192 VAC	240 VAC/DC
Panasonic Electronic Components HG2-AC24V	160 Ohms	General Purpose	Plug In Quick Connect - 0.250" (6.3mm)	CSA UR	15 ms	250 VAC	15 ms	DPDT (2 Form C)	7.2 VAC	Silver Alloy	20 A	Socketable	0.15 A	Non Latching	-50 °C	40 °C	19.2 VAC	24 VAC
Panasonic Electronic Components HG2-AC115V	3674 Ohms	General Purpose	Plug In Quick Connect - 0.250" (6.3mm)	CSA UR	15 ms	250 VAC	15 ms	DPDT (2 Form C)	34.5 VAC	Silver Alloy	20 A	Socketable	31.3 mA	Non Latching	-50 °C	40 °C	92 VAC/DC	115 VAC
Panasonic Electronic Components HG2-AC200V	11.1 kOhms	General Purpose	Plug In Quick Connect - 0.250" (6.3mm)	CSA UR	15 ms	250 VAC	15 ms	DPDT (2 Form C)	60 VAC/DC	Silver Alloy	20 A	Socketable	18 mA	Non Latching	-50 °C	40 °C	160 VAC	200 VAC
