S3B-PH-K Series

Catalog

CONN HEADER R/A 3POS 2MM

Part	Insulation Color	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Shrouding	Contact Type	Number of Rows	Insulation Material	Contact Finish - Mating	Material Flammability Rating	Fastening Type	Voltage Rating	Contact Material	Contact Length - Post [x]	Contact Length - Post	Current Rating (Amps)	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Insulation Height	Insulation Height	Contact Shape	Style	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Finish - Post
JST Sales America Inc. S3B-PH-K-S-GW	Natural	0.13 in	3.3 mm	All	Shrouded - 4 Wall	Male Pin	1	Nylon 6/6 Polyamide (PA66)	Gold	UL94 V-0	Detent Lock	100 V	Brass	0.134 "	3.4 mm	2 A	Header	85 °C	-25 °C	Press-Fit Solder	4.8 mm	0.189 in	Square	Board to Cable/Wire	0.079 "	2 mm	Right Angle Through Hole
JST Sales America Inc. S3B-PH-KL	Gray			All	Shrouded - 4 Wall	Male Pin	1	Nylon 6/6 Polyamide (PA66)		UL94 V-0	Detent Lock	100 V	Copper Alloy	0.134 "	3.4 mm	2 A	Header	85 °C	-25 °C	Press-Fit Solder	4.8 mm	0.189 in	Square	Board to Cable/Wire	0.079 "	2 mm	Right Angle Through Hole	Tin

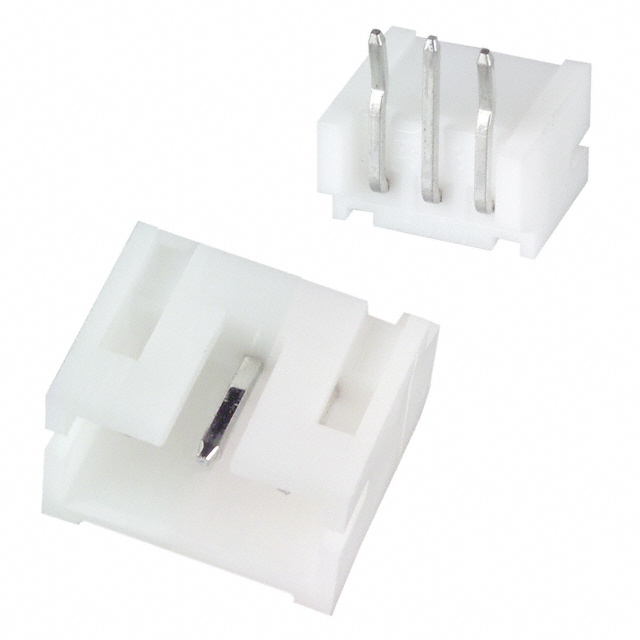

JST Sales America Inc. S3B-PH-K-S	Natural	0.13 in	3.3 mm	All	Shrouded - 4 Wall	Male Pin	1	Nylon 6/6 Polyamide (PA66)		UL94 V-0	Detent Lock	100 V	Brass	0.134 "	3.4 mm	2 A	Header	85 °C	-25 °C	Press-Fit Solder	4.8 mm	0.189 in	Square	Board to Cable/Wire	0.079 "	2 mm	Right Angle Through Hole	Tin
