A331FB Series
Manufacturer: KEMET
Beta
⌘K

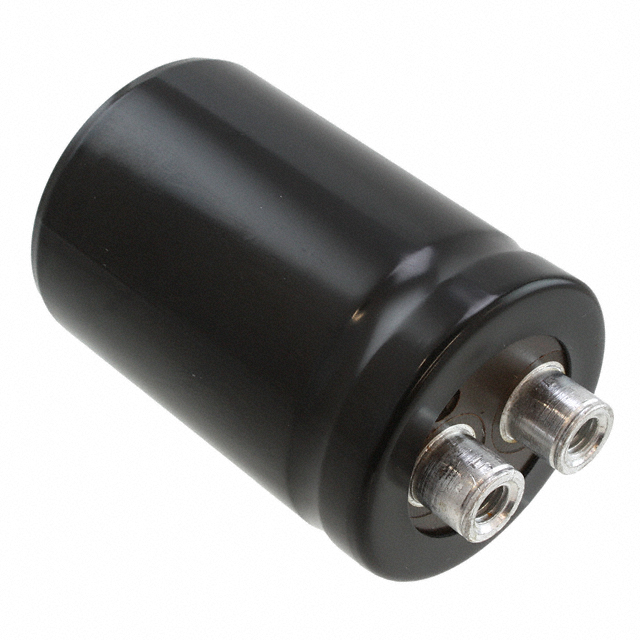

CAP ALUM 220UF 20% 400V SCREW CH
| Part | Lead Spacing | Lead Spacing | Voltage - Rated | Size / Dimension [diameter] | Size / Dimension [diameter] | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Ripple Current @ Low Frequency | Package / Case | Ripple Current @ High Frequency | Capacitance | Polarization | Applications | Tolerance | Lifetime @ Temp. | Impedance | Operating Temperature [Max] | Operating Temperature [Min] | ESR (Equivalent Series Resistance) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 0.504 in | 12.8 mm | 400 V | 1.417 in | 36 mm | Chassis Mount | 2.126 in | 54 mm | 2.1 A | Radial Can - Screw Terminals | 4.4 A | 220 µF | Polar | General Purpose | 20 % | 11000 Hrs | 387 mOhms | 85 °C | -40 C | 570 mOhm |
