SPD08 Series

Catalog

CONN EDGE DUAL FML 120POS 0.031

Part	Material - Insulation	Read Out	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions	Termination	Features	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Card Type	Color	Pitch	Pitch	Gender	Contact Finish	Number of Rows [custom]	Card Thickness	Card Thickness	Number of Positions/Bay/Row
3M Electronic Specialty SPD08-120-L-RB-TR	Glass Filled Liquid Crystal Polymer (LCP)	Dual	Copper Alloy	-55 C	125 °C	Surface Mount	120	Solder	Board Guide Latches	30 Áin	0.76 Ám	Cantilever	Non Specified - Dual Edge	Black	0.8 mm	0.031 in	Female	Gold	2	1.57 mm	0.062 in
3M Electronic Specialty SPD08-080-RB-TR	Glass Filled Liquid Crystal Polymer (LCP)	Dual	Copper Alloy	-55 C	125 °C	Surface Mount	80	Solder	Board Guide	30 Áin	0.76 Ám	Cantilever	Non Specified - Dual Edge	Black	0.8 mm	0.031 in	Female	Gold	2	1.57 mm	0.062 in

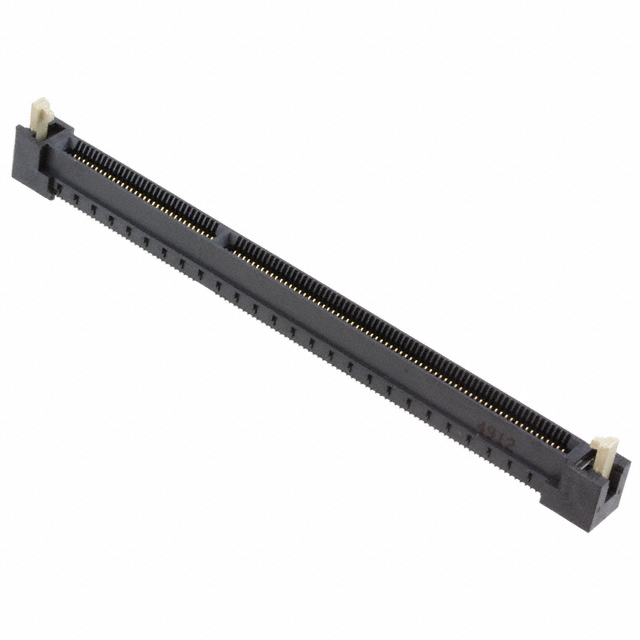

3M Electronic Specialty SPD08-200-L-RB	Glass Filled Liquid Crystal Polymer (LCP)	Dual	Copper Alloy	-55 C	125 °C	Surface Mount	200	Solder	Board Guide Latches	30 Áin	0.76 Ám	Cantilever	Non Specified - Dual Edge	Black	0.8 mm	0.031 in	Female	Gold	2	1.57 mm	0.062 in

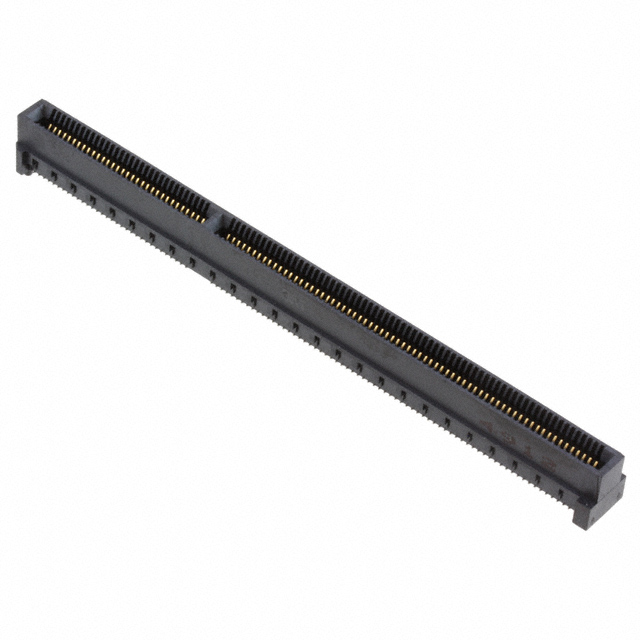

3M Electronic Specialty SPD08-200-RB-TR	Glass Filled Liquid Crystal Polymer (LCP)	Dual	Copper Alloy	-55 C	125 °C	Surface Mount	200	Solder	Board Guide	30 Áin	0.76 Ám	Cantilever	Non Specified - Dual Edge	Black	0.8 mm	0.031 in	Female	Gold	2	1.57 mm	0.062 in
3M Electronic Specialty SPD08-160-L-RB	Liquid Crystal Polymer (LCP)	Dual	Copper Alloy	-55 C	125 °C	Surface Mount	160	Solder	Latches	30 Áin	0.76 Ám		PCI Express™	Black	0.8 mm	0.031 in	Female	Gold	2	1.57 mm	0.062 in
3M Electronic Specialty SPD08-050-RB-TR	Glass Filled Liquid Crystal Polymer (LCP)	Dual	Copper Alloy	-55 C	125 °C	Surface Mount	50	Solder	Board Guide	30 Áin	0.76 Ám	Cantilever	Non Specified - Dual Edge	Black	0.8 mm	0.031 in	Female	Gold	2	1.57 mm	0.062 in
3M Electronic Specialty SPD08-060-L-RB-TR	Glass Filled Liquid Crystal Polymer (LCP)	Dual	Copper Alloy	-55 C	125 °C	Surface Mount	60	Solder	Board Guide Latches	30 Áin	0.76 Ám	Cantilever	Non Specified - Dual Edge	Black	0.8 mm	0.031 in	Female	Gold	2	1.57 mm	0.062 in	30
3M Electronic Specialty SPD08-160-RB-TR	Liquid Crystal Polymer (LCP)	Dual	Copper Alloy	-55 C	125 °C	Surface Mount	160	Solder		30 Áin	0.76 Ám		PCI Express™	Black	0.8 mm	0.031 in	Female	Gold	2	1.57 mm	0.062 in

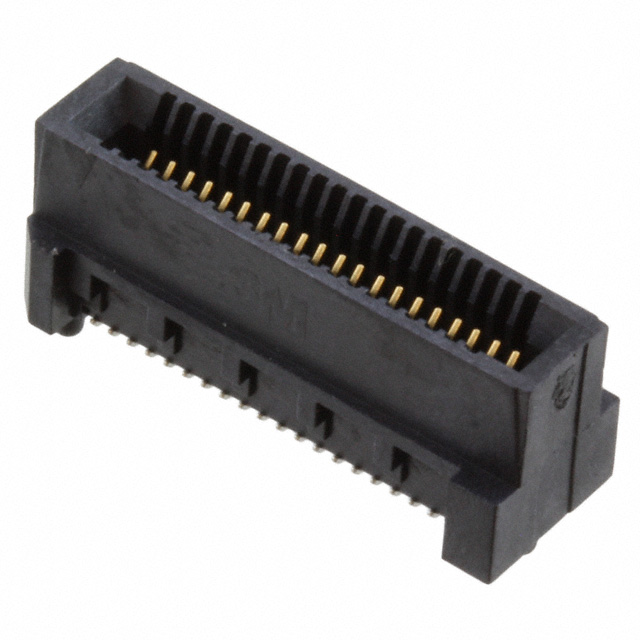

3M Electronic Specialty SPD08-040-RB-TR	Glass Filled Liquid Crystal Polymer (LCP)	Dual	Copper Alloy	-55 C	125 °C	Surface Mount	40	Solder	Board Guide	30 Áin	0.76 Ám	Cantilever	Non Specified - Dual Edge	Black	0.8 mm	0.031 in	Female	Gold	2	1.57 mm	0.062 in	20 Bay/Row
3M Electronic Specialty SPD08-200-L-RB-TR	Glass Filled Liquid Crystal Polymer (LCP)	Dual	Copper Alloy	-55 C	125 °C	Surface Mount	200	Solder	Board Guide Latches	30 Áin	0.76 Ám	Cantilever	Non Specified - Dual Edge	Black	0.8 mm	0.031 in	Female	Gold	2	1.57 mm	0.062 in
