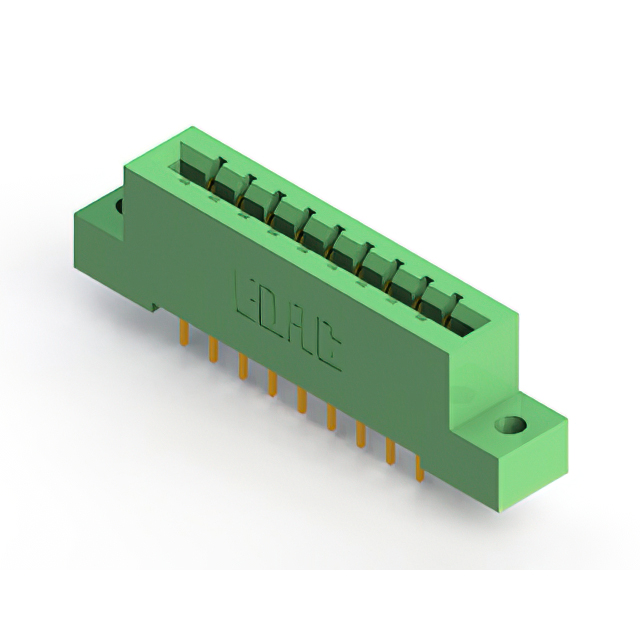

833-018 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 18POS 0.156
| Part | Termination Rows | Material - Insulation | Card Thickness [Max] | Card Thickness [Min] | Color | Read Out | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Contact Type | Termination | Card Type | Contact Material | Number of Positions | Mounting Type | Contact Finish | Pitch | Pitch | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions/Bay/Row [custom] | Gender | Flange Feature | Termination Rows [custom] | Number of Positions/Bay/Row | Number of Rows [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Single | 0.25 Ám | 10 Áin | 125 °C | -40 C | 1 | Cantilever | Wire Wrap | Non Specified - Single Edge | Copper Alloy | 18 | Through Hole | Gold | 3.96 mm | 0.156 in | 0.156 " | 3.96 mm | 18 | Female | |||||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Single | 0.25 Ám | 10 Áin | 125 °C | -40 C | 1 | Cantilever | Wire Wrap | Non Specified - Single Edge | Copper Alloy | 18 | Through Hole | Gold | 3.96 mm | 0.156 in | 18 | Female | M3 Threaded Insert Top Mount Opening | ||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Dual | 0.25 Ám | 10 Áin | 125 °C | -40 C | Cantilever | Solder | Non Specified - Dual Edge | Copper Alloy | 18 | Board Edge Straddle Mount | Gold | 3.96 mm | 0.156 in | 0.128 " | 3.25 mm | Female | Side Mount Opening Unthreaded | 2 | 9 | 2 | Card Extender | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Single | 0.25 Ám | 10 Áin | 125 °C | -40 C | 1 | Cantilever | Solder | Non Specified - Single Edge | Copper Alloy | 18 | Right Angle Through Hole | Gold | 3.96 mm | 0.156 in | 0.156 " | 3.96 mm | 18 | Female | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Dual | 0.25 Ám | 10 Áin | 125 °C | -40 C | Cantilever | Solder | Non Specified - Dual Edge | Copper Alloy | 18 | Right Angle Through Hole | Gold | 3.96 mm | 0.156 in | 0.116 " | 2.95 mm | Female | Floating Bobbin Flush Mount | 2 | 9 | 2 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Dual | 0.25 Ám | 10 Áin | 125 °C | -40 C | Cantilever | Solder | Non Specified - Dual Edge | Copper Alloy | 18 | Through Hole | Gold | 3.96 mm | 0.156 in | 0.128 " | 3.25 mm | Female | Flush Mount Top Opening Unthreaded | 2 | 9 | 2 | ||||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Single | 0.25 Ám | 10 Áin | 125 °C | -40 C | 1 | Cantilever | Solder | Non Specified - Single Edge | Copper Alloy | 18 | Right Angle Through Hole | Gold | 3.96 mm | 0.156 in | 18 | Female | Flush Mount M3 Threaded Insert Top Opening | ||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Dual | 0.25 Ám | 10 Áin | 125 °C | -40 C | Cantilever | Solder | Non Specified - Dual Edge | Copper Alloy | 18 | Board Edge Straddle Mount | Gold | 3.96 mm | 0.156 in | 0.128 " | 3.25 mm | Female | 2 | 9 | 2 | Card Extender | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Dual | 0.25 Ám | 10 Áin | 125 °C | -40 C | Cantilever | Wire Wrap | Non Specified - Dual Edge | Copper Alloy | 18 | Through Hole | Gold | 3.96 mm | 0.156 in | 0.128 " | 3.25 mm | Female | Side Mount Opening Unthreaded | 2 | 9 | 2 | ||||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Single | 0.25 Ám | 10 Áin | 125 °C | -40 C | 1 | Cantilever | Solder | Non Specified - Single Edge | Copper Alloy | 18 | Through Hole | Gold | 3.96 mm | 0.156 in | 0.128 " | 3.25 mm | 18 | Female | Side Mount Opening Unthreaded |
