MULTIGIG RT 2-R Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

MULTIGIG RT 2-R. 7RW ROHS COMPLIANT: YES

Part	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Number of Columns	Connector Usage	Connector Type	Number of Rows [custom]	Number of Positions	Termination	Connector Style	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	For Use With/Related Products	Specifications	Accessory Type	Current Rating (Amps)	Number of Positions Loaded	Contact Finish	Color	Number of Rows	Features

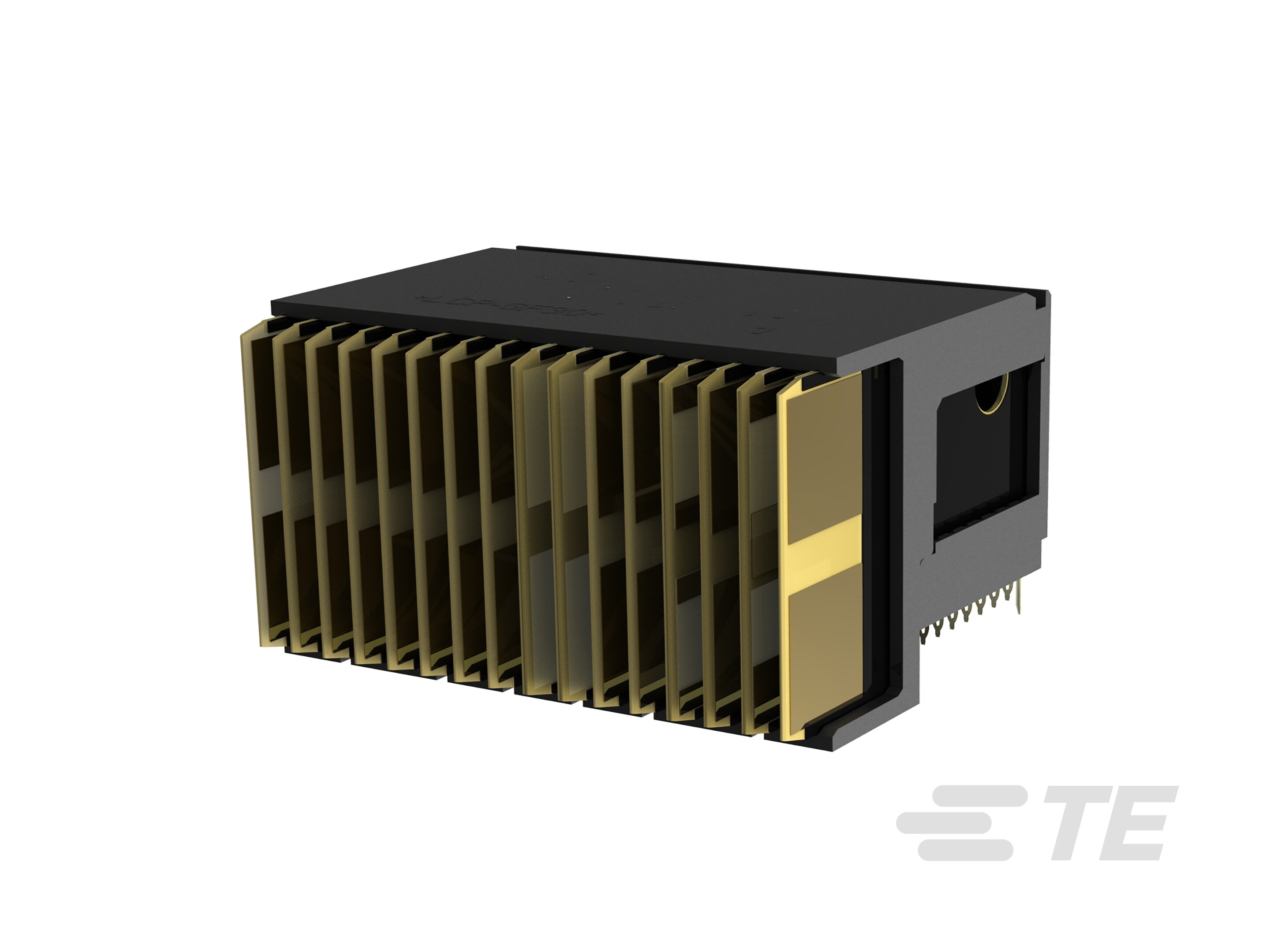

TE Connectivity AMP Connectors 2286250-1	UL94 V-0	-55 C	125 °C	1.8 mm	0.071 in	16	Backplane	Plug Male Blades	7	112	Press-Fit	MULTIG Center	Board Mount	50 µin	1.27 µm
TE Connectivity AMP Connectors 2102847-1
TE Connectivity AMP Connectors 2000676-4																MULTIGIG RT and RT 2 Series	10-32 Thread	Guide Pin
TE Connectivity AMP Connectors 2000676-6																MULTIGIG RT and RT 2 Series	10-32 Thread	Guide Pin
TE Connectivity AMP Connectors 1-2000713-5
TE Connectivity AMP Connectors 2102771-2	UL94 V-0			1.35 mm	0.053 in		Daughtercard	Plug Male Blades	7	112	Press-Fit	MULTIG Center	Board Edge Right Angle Through Hole	50 µin	1.27 µm				750 mA	All	Gold	Black
TE Connectivity AMP Connectors 2000676-8																MULTIGIG RT and RT 2 Series	M5 Thread	Guide Pin
TE Connectivity AMP Connectors 2000676-2																MULTIGIG RT and RT 2 Series	10-32 Thread	Guide Pin

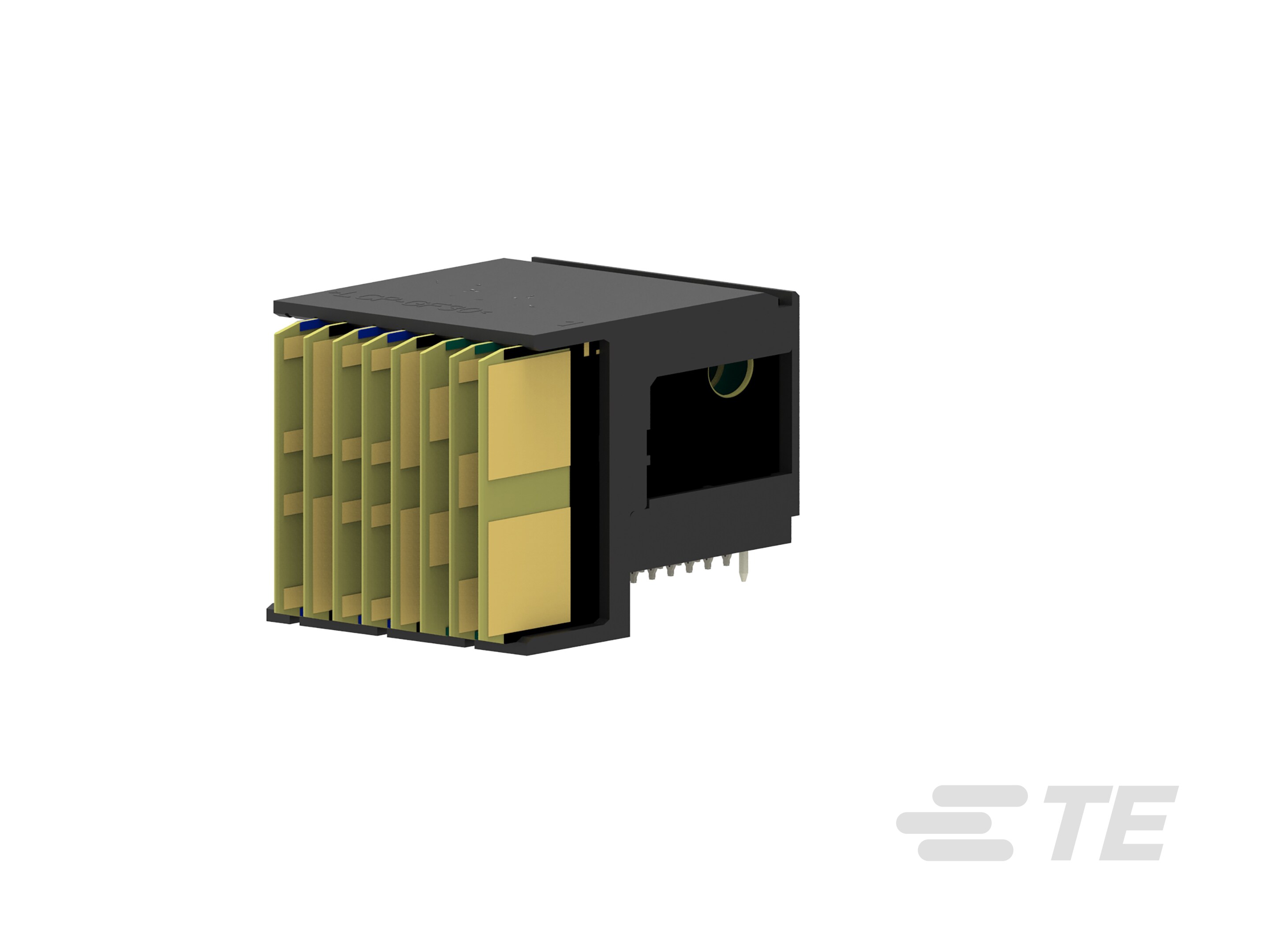

TE Connectivity AMP Connectors 2286123-1				1.8 mm	0.071 in	7	Daughtercard	Plug Male Blades		56	Press-Fit	MULTIGIG Half Left End	Board Edge Right Angle Through Hole	50 µin	1.27 µm					All	Gold	Black	8	Guide Pin

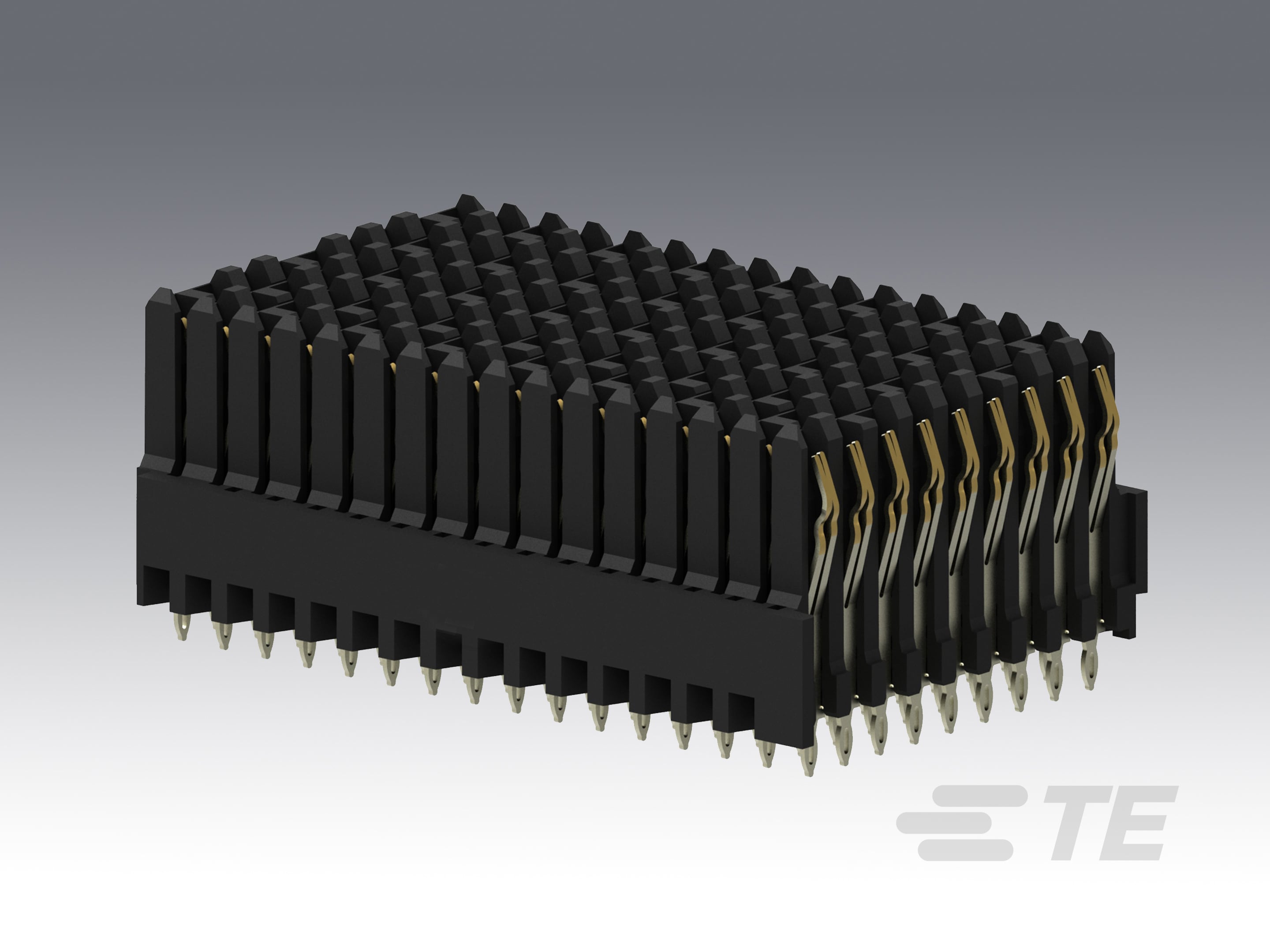

TE Connectivity AMP Connectors 2102736-1		-55 C	125 °C	1.8 mm	0.071 in	16	Backplane	Receptacle Female Sockets		144	Press-Fit	MULTIG Center	Through Hole	50 µin	1.27 µm					All	Gold	Black	9	Board Guide
