1734344 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN D-SUB HD RCPT 15P R/A SLDR

Part	Dielectric Material	Color	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Backset Spacing	Backset Spacing	Shell Material, Finish	Contact Finish	Connector Style	Contact Type	Flange Feature	Flange Feature	Termination	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Rows [custom]	Contact Finish Thickness	Connector Type	Features	Current Rating (Amps)	Number of Positions	Mounting Type	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness

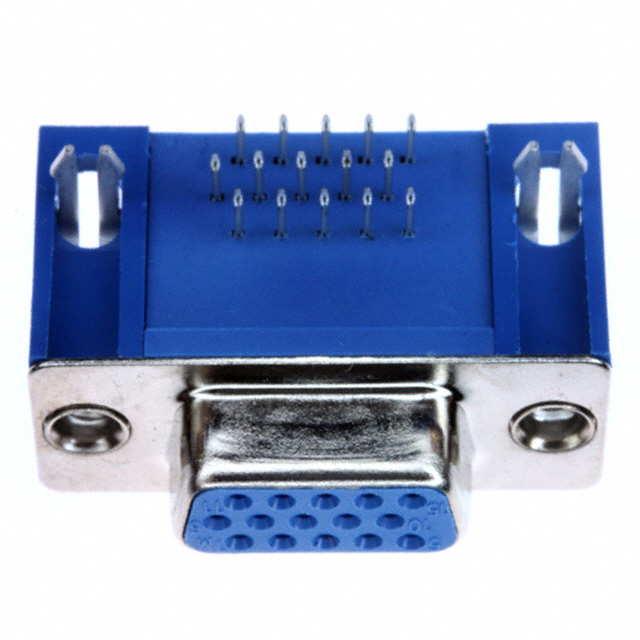

TE Connectivity AMP Connectors 1734344-1	Nylon 9T Polyamide (PA9T)	Blue	Phosphor Bronze	130 °C	-55 C	125 VDC	8.89 mm	0.35 in	Nickel Plated Steel	Gold	D-Sub High Density	Signal	Housing/Shell	4-40	Solder	(DE E) High Density	1	3	Flash	Receptacle Female Sockets	Board Lock	2 A	15	Right Angle Through Hole	UL94 V-0

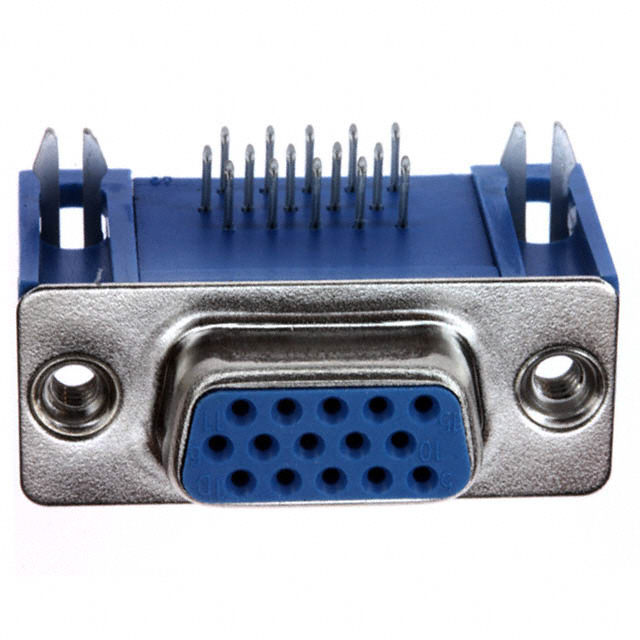

TE Connectivity AMP Connectors 1734344-3	Nylon 9T Polyamide (PA9T)	Blue	Phosphor Bronze	130 °C	-55 C	125 VDC	8.89 mm	0.35 in	Nickel Plated Steel	Gold	D-Sub High Density	Signal	Housing/Shell	4-40	Solder	(DE E) High Density	1	3		Receptacle Female Sockets	Board Lock	2 A	15	Right Angle Through Hole	UL94 V-0	0.25 Ám	10 Áin

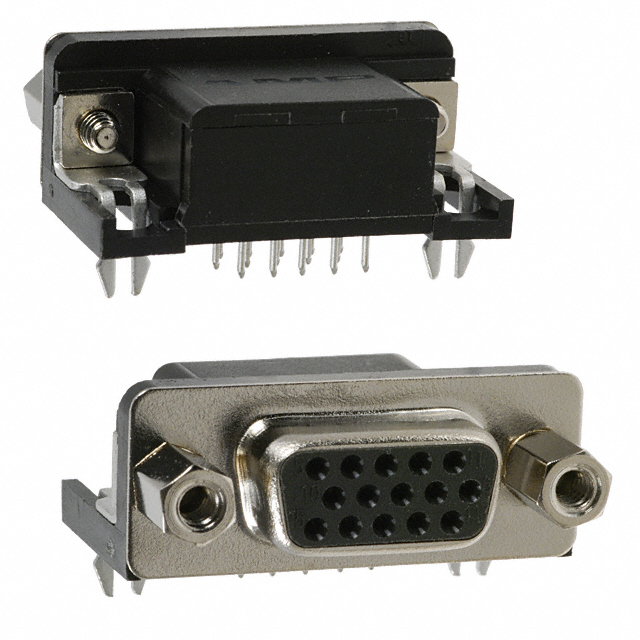

TE Connectivity AMP Connectors 1734344-5	Nylon 9T Polyamide (PA9T)	Black	Phosphor Bronze	130 °C	-55 C	125 VDC	8.89 mm	0.35 in	Nickel Plated Steel	Gold	D-Sub High Density	Signal	4-40 Mating Side Female Screwlock		Solder	(DE E) High Density	1	3		Receptacle Female Sockets	Board Lock	2 A	15	Right Angle Through Hole	UL94 V-0	0.38 µm	15 µin

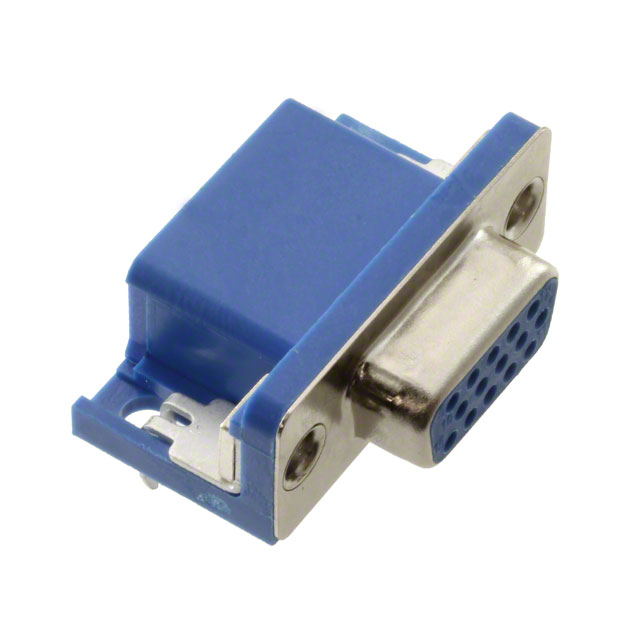

TE Connectivity AMP Connectors 2-1734344-3	Nylon 9T Polyamide (PA9T)	Blue	Phosphor Bronze	130 °C	-55 C	125 VDC	8.89 mm	0.35 in	Nickel Plated Steel	Gold	D-Sub High Density	Signal	Housing/Shell	4-40	Solder	(DE E) High Density	1	3		Receptacle Female Sockets	Board Lock	2 A	15	Right Angle Through Hole	UL94 V-0	0.76 Ám	30 Áin
