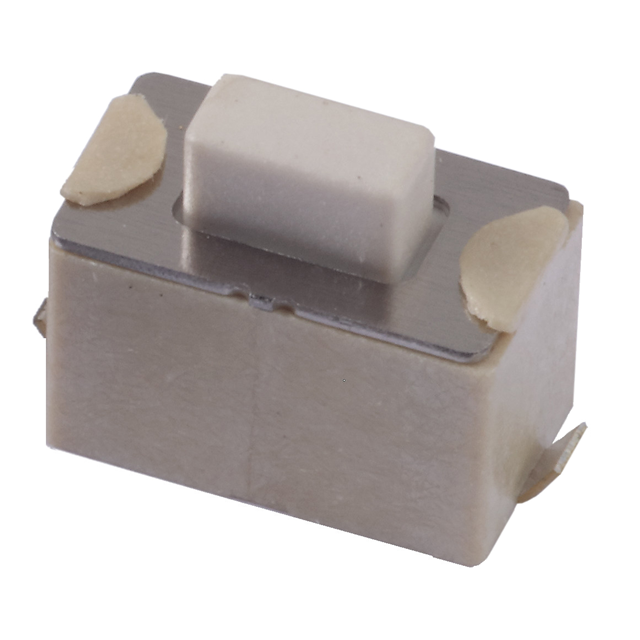

222BJV Series
Manufacturer: CTS Electrocomponents
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Switch Travel | Mechanical Life (Cycles) | Illumination | Operating Temperature (Min) | Operating Temperature (Max) | Actuator Height off PCB (Vertical) | Switch Function | Actuator Orientation | Circuit | Operating Force | Features | Actuator Type | Outline Width | Outline Length | Contact Rating (Current) | Mounting Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CTS Electrocomponents | 0.25 mm | 30000 Cycles | Non-Illuminated | -40 °C | 85 °C | 5 mm | Off-Mom | Top Actuated | SPST-NO | 260 gf | Tactile Feedback | Rectangular Button | 3.5 mm | 6 mm | 0.05 A | Surface Mount | J Lead |
