Single high-speed switching diode
Description
AI

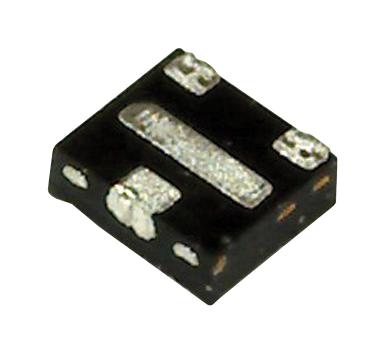

Single high-speed switching diode encapsulated in a leadless ultra small DFN1010D-3 (SOT1215) Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.
Beta
⌘K
Single high-speed switching diode
Single high-speed switching diode
| Part | Qualification | Supplier Device Package | Current - Average Rectified (Io) | Technology | Voltage - Forward (Vf) (Max) @ If | Operating Temperature - Junction [Max] | Package / Case | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Grade | Voltage - DC Reverse (Vr) (Max) [Max] | Speed | Current - Reverse Leakage @ Vr | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nexperia USA Inc. | AEC-Q101 | DFN1010D-3 | 290 mA | Standard | 1.25 V | 150 °C | 3-XDFN Exposed Pad | 1.5 pF | 4 ns | Automotive | 100 V | 200 mA 500 ns | 500 nA | Surface Mount |
