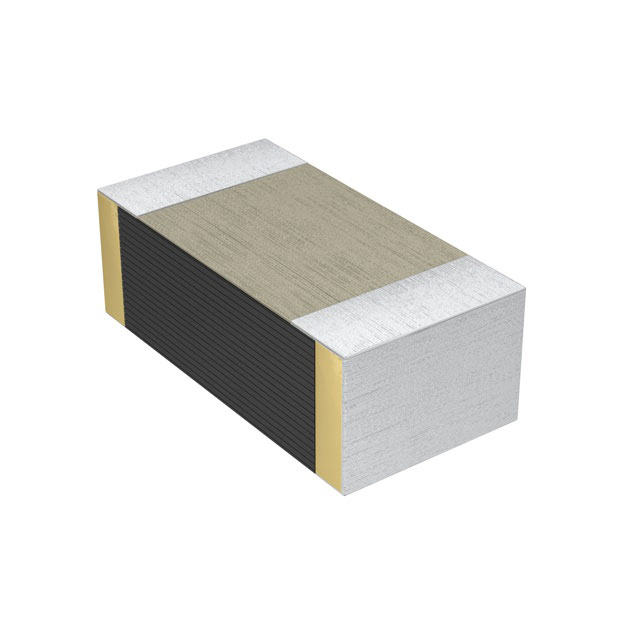

ECH-U1 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

Catalog

CAP FILM 330PF 5% 50VDC 0805

...

Part	Applications	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Termination	Dielectric Material	Mounting Type	Voltage Rating - AC	Tolerance	Voltage Rating - DC	Capacitance	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Package / Case
Panasonic Industrial Automation Sales ECH-U1H331JB5	General Purpose	2 mm	0.079 in	0.049 in	1.25 mm	Solder Pads	Polyphenylene Sulfide (PPS) Metallized - Stacked	Surface Mount	30 V	5 %	50 VDC	330 pF	0805	-55 °C	125 °C	0.039 "	1 mm
Panasonic Industrial Automation Sales ECH-U1H101GB5	General Purpose	2 mm	0.079 in	0.049 in	1.25 mm	Solder Pads	Polyphenylene Sulfide (PPS) Metallized - Stacked	Surface Mount	30 V	2 %	50 VDC	100 pF	0805	-55 °C	125 °C	0.039 "	1 mm
Panasonic Industrial Automation Sales ECH-U1H222GX5	General Purpose	2 mm	0.079 in	0.049 in	1.25 mm	Solder Pads	Polyphenylene Sulfide (PPS) Metallized - Stacked	Surface Mount	30 V	2 %	50 VDC	2200 pF	0805	-55 °C	125 °C			0.043 in	1.1 mm

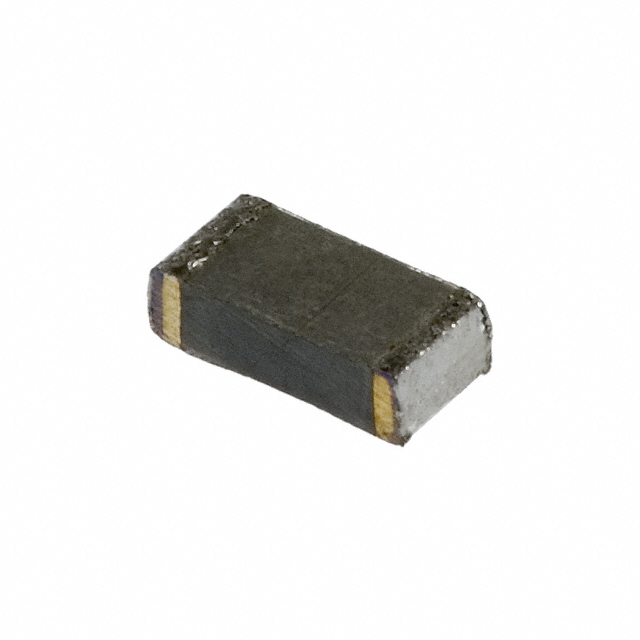

Panasonic Industrial Automation Sales ECH-U1C561JX5	General Purpose	1.6 mm	0.063 in	0.031 in	0.8 mm	Solder Pads	Polyphenylene Sulfide (PPS) Metallized - Stacked	Surface Mount	11 V	5 %	16 V	560 pF	0603 (1608 Metric)	-55 °C	125 °C			0.033 "	0.85 mm
Panasonic Industrial Automation Sales ECH-U1H822JX5	General Purpose	3.2 mm			1.6 mm	Solder Pads	Polyphenylene Sulfide (PPS) Metallized - Stacked	Surface Mount	30 V	5 %	50 VDC		1206 (3216 Metric)	-55 °C	125 °C			0.051 in	1.3 mm	0.063 in	0.126 "
Panasonic Industrial Automation Sales ECH-U1H151GX5	General Purpose	2 mm	0.079 in	0.049 in	1.25 mm	Solder Pads	Polyphenylene Sulfide (PPS) Metallized - Stacked	Surface Mount	30 V	2 %	50 VDC	150 pF	0805	-55 °C	125 °C			0.043 in	1.1 mm
Panasonic Industrial Automation Sales ECH-U1H124GX9	General Purpose	6 mm	0.236 in	0.161 in	4.1 mm	Solder Pads	Polyphenylene Sulfide (PPS) Metallized - Stacked	Surface Mount	30 V	2 %	50 VDC	0.12 µF		-55 °C	125 °C			0.083 "	2.1 mm
Panasonic Industrial Automation Sales ECH-U1H473JX9	General Purpose	4.8 mm	0.189 "	0.13 in	3.3 mm	Solder Pads	Polyphenylene Sulfide (PPS) Metallized - Stacked	Surface Mount	30 V	5 %	50 VDC		1913	-55 °C	125 °C	0.067 in	1.7 mm					4833 Metric
Panasonic Industrial Automation Sales ECH-U1H561JX5	General Purpose	2 mm	0.079 in	0.049 in	1.25 mm	Solder Pads	Polyphenylene Sulfide (PPS) Metallized - Stacked	Surface Mount	30 V	5 %	50 VDC	560 pF	0805	-55 °C	125 °C			0.043 in	1.1 mm
Panasonic Industrial Automation Sales ECH-U1H332JB5	General Purpose	3.2 mm			1.6 mm	Solder Pads	Polyphenylene Sulfide (PPS) Metallized - Stacked	Surface Mount	30 V	5 %	50 VDC	3300 pF	1206 (3216 Metric)	-55 °C	125 °C	0.039 "	1 mm			0.063 in	0.126 "
