86130101 Series

Catalog

CONN HEADER R/A 10POS 2.54MM

Part	Features	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Termination	Contact Length - Mating	Contact Length - Mating [x]	Contact Type	Material Flammability Rating	Connector Type	Contact Material	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Style	Insulation Color	Contact Finish - Mating	Contact Shape	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Insulation Material	Contact Finish - Post	Number of Rows	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post

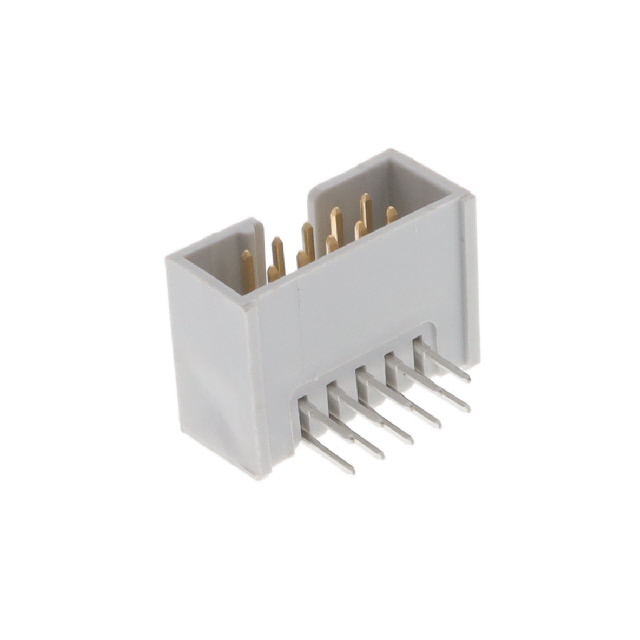

Amphenol ICC (FCI) 86130101013345E1LF	Keying Slot	Push-Pull	0.165 in	4.19 mm	Shrouded - 4 Wall	Solder	6.1 mm	0.24 in	Male Pin	UL94 V-0	Header	Copper Alloy	0.1 in	2.54 mm	All	2.54 mm	0.1 in	10	Board to Cable/Wire	Gray	Gold or Gold-Palladium	Square	250 VDC	-55 °C	125 °C	Through Hole Right Angle	Polybutylene Terephthalate (PBT)	Tin	2	8.75 mm	0.344 in

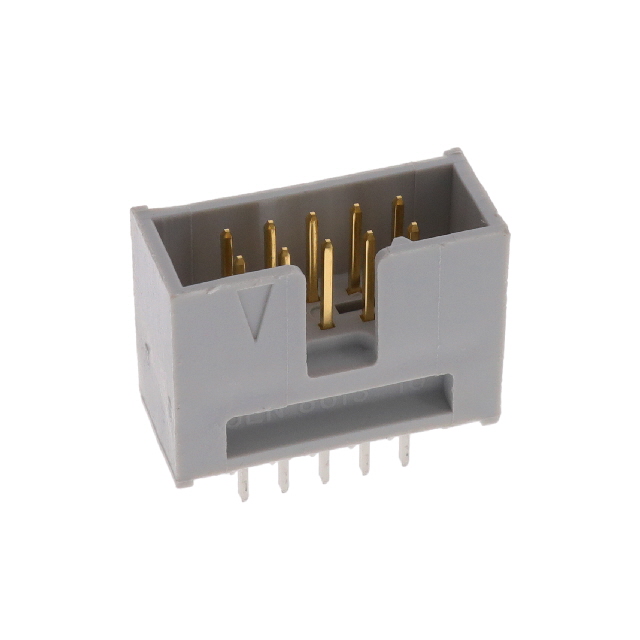

Amphenol ICC (FCI) 86130101014345E1LF	Keying Slot	Push-Pull			Shrouded - 4 Wall	Solder	6.1 mm	0.24 in	Male Pin	UL94 V-0	Header	Copper Alloy	0.1 in	2.54 mm	All	2.54 mm	0.1 in	10	Board to Cable/Wire	Gray	Gold or Gold-Palladium	Square	250 VDC	-55 °C	125 °C	Through Hole	Polybutylene Terephthalate (PBT)	Tin	2	14.15 mm	0.557 in	0.713 in	18.1 mm	4.35 mm	0.171 in
Amphenol ICC (FCI) 86130101014365E1LF	Keying Slot	Push-Pull			Shrouded - 4 Wall	Solder	6.1 mm	0.24 in	Male Pin	UL94 V-0	Header	Copper Alloy	0.1 in	2.54 mm	All	2.54 mm	0.1 in	10	Board to Cable/Wire	Gray	Gold or Gold-Palladium	Circular		-55 °C	125 °C	Through Hole	Polybutylene Terephthalate (PBT)	Tin	2	14.15 mm	0.557 in			4.35 mm	0.171 in
