Cartridge Fuses
Cartridge Fuses
| Part | Mounting Type | Package / Case [y] | Package / Case | Package / Case [x] | Melting I²t | Voltage Rating - AC | Fuse Type | Breaking Capacity @ Rated Voltage | Current Rating (Amps) | Approval Agency | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Response Time | DC Cold Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

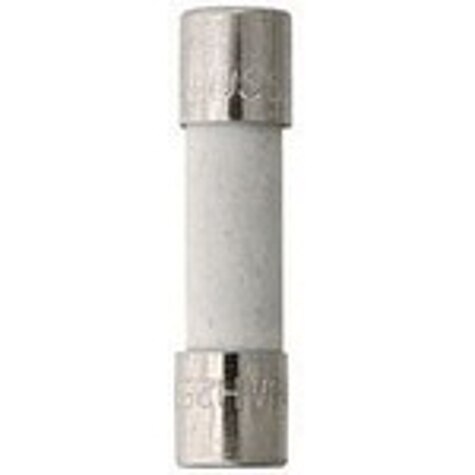

 Eaton - Electronics Division | Through Hole | 20 mm | Axial | 5 mm | 3.9 | 250 V | Cartridge Ceramic | 1.5 kA | 2.5 A | BSI CCC CSA cULus IMQ MITI/JET SEMKO VDE | 5.54 mm | 0.831 in | 21.1 mm | 0.218 in | Fast Blow | |
Eaton - Electronics Division | Requires Holder | 20 mm | 5 mm | 0.02 I²t | 250 V | Cartridge Ceramic | 1.5 kA | 0.2 A | BSI CCC CSA cULus IMQ SEMKO VDE | 5.2 mm | 0.787 " | 20 mm | 0.205 in | Fast Blow | 6 Ohms | |
 Eaton - Electronics Division | Requires Holder | 20 mm | 5 mm | 0.018 I²t | 250 V | Cartridge Ceramic | 1.5 kA | 400 mA | CSA cURus | 5.2 mm | 0.787 " | 20 mm | 0.205 in | Fast Blow | 2.2 Ohms |
