1437390 Series

Catalog

TERM BLK NEMA 2POS 22.1MM

Part	Height (Max) [z]	Height (Max) [z]	Length	Length	Material - Insulation	Operating Temperature	Current - UL	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Type	Number of Positions	Termination Style	Terminal - Width [y]	Mounting Type	Number of Levels

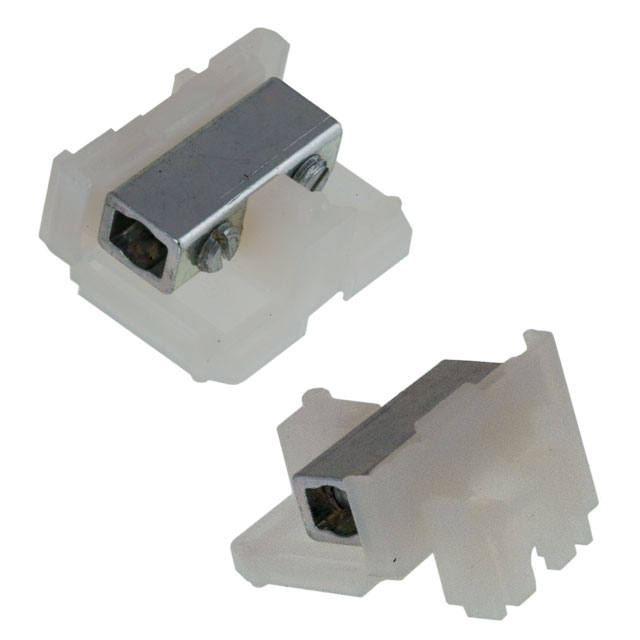

TE Connectivity AMP Connectors 4-1437390-0	1.27 in	32.26 mm	36.07 mm	1.42 in	Nylon Polyamide (PA)	150 °C	85 A	18 AWG	4 AWG	NEMA Open Construction	2	Tubular Screw	22.1 mm	Direct Mount	1
TE Connectivity AMP Connectors 4-1437390-2					Nylon Polyamide (PA)	150 °C	50 A	18 AWG	8 AWG	NEMA Open Construction	2	Screw with Captive Plate		Direct Mount	1
TE Connectivity AMP Connectors 1437390-1					Phenol Formaldehyde (Phenolic)	150 °C	35 A	22 AWG	10 AWG	NEMA Open Construction	2	Screw		Direct Mount	1

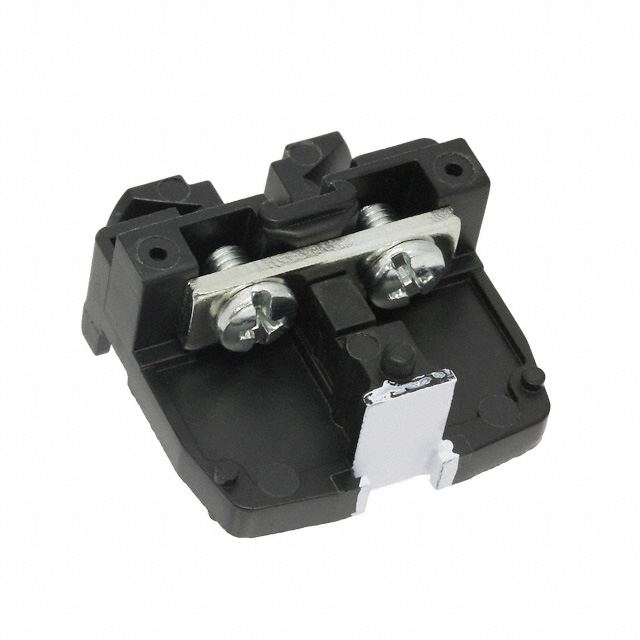

TE Connectivity AMP Connectors 1437390-8					Phenol Formaldehyde (Phenolic)	150 °C	35 A	22 AWG	10 AWG	NEMA Open Construction	2	Screw		Channel DIN Rail Mount	1

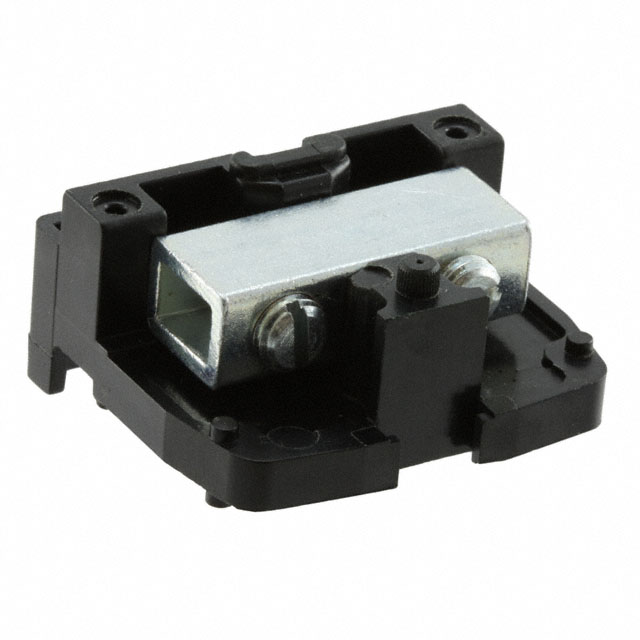

TE Connectivity AMP Connectors 2-1437390-9					Phenol Formaldehyde (Phenolic)	150 °C	65 A	18 AWG	6 AWG	NEMA Open Construction	2	Tubular Clamp		Direct Mount	1
