CPT-1762 Series

Catalog

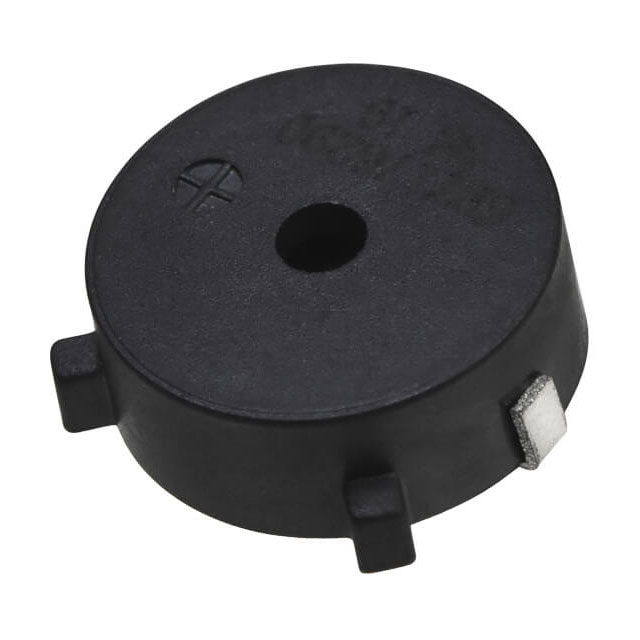

BUZZER PIEZO 12V 17.00MM SMD

Part	Voltage Range [Max]	Termination	Driver Circuitry	Frequency	Port Location	Sound Pressure Level (SPL)	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Mounting Type	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Technology	Current - Supply
Same Sky (Formerly CUI Devices) CPT-1762-90-SMT-TR	30 V	Solder Pads	Externally Driven Transducer	4 kHz	Top	90 dB	0.669 in	17 mm	85 °C	-40 C	Peak-Peak Signal	Surface Mount	12 VDC	0.264 in	6.7 mm	Piezo	12 mA
Same Sky (Formerly CUI Devices) CPT-1762-90-SMT-TR	30 V	Solder Pads	Externally Driven Transducer	4 kHz	Top	90 dB	0.669 in	17 mm	85 °C	-40 C	Peak-Peak Signal	Surface Mount	12 VDC	0.264 in	6.7 mm	Piezo	12 mA
