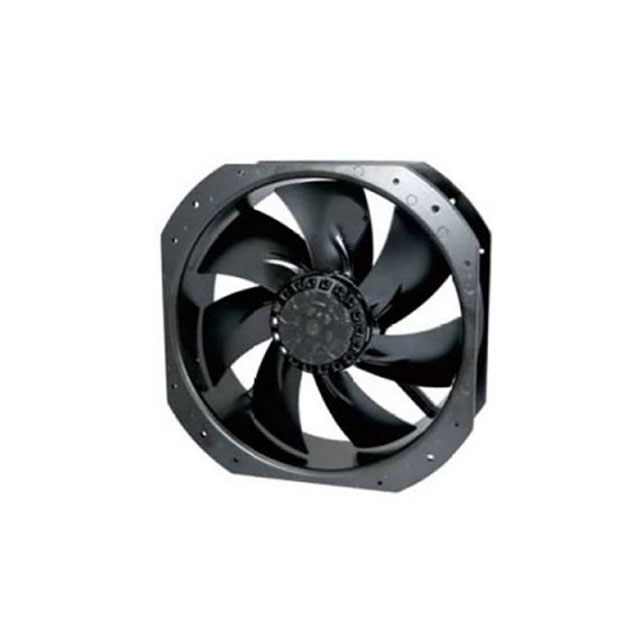

OA280AP Series

Catalog

AC AXIAL FAN, 115V, SQUARE, 280 MM, 89 MM, BALL BEARING, 1300 CFM

Part	Lifetime @ Temp.	Material - Frame	Material - Blade	Features	Width [y]	Bearing Type	Termination	Noise	Static Pressure	Static Pressure	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	RPM	Ingress Protection	Approval Agency	Voltage - Rated	Fan Type	Air Flow	Air Flow	Termination
ORION FANS OA280AP-11-1WB1868	50000 Hrs	Aluminum	Steel	Capacitor Thermal Overload Protector (TOP)	89 mm	Ball	2 Wire Leads	73 dB(A)	0.75 in H2O	186.8 Pa	210 W	280 mm	280 mm	7.4 lbs	3.4 kg	3200 RPM	IP68 - Dust Tight Waterproof	CE cURus TUV UR	115 VAC	Tubeaxial	36.4 m³/min	1300 CFM

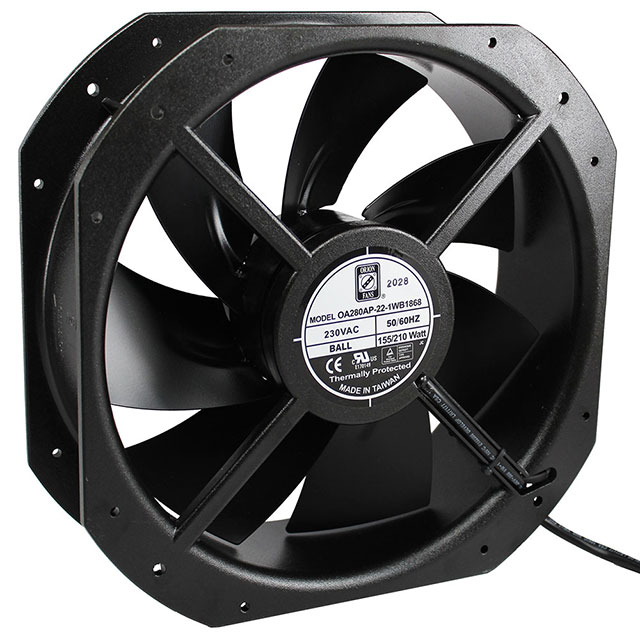

ORION FANS OA280AP-22-1WB1868	50000 Hrs	Aluminum	Steel	Capacitor Thermal Overload Protector (TOP)	89 mm	Ball	2 Wire Leads	73 dB(A)	0.75 in H2O	186.8 Pa	210 W	280 mm	280 mm	7.4 lbs	3.4 kg	3200 RPM	IP68 - Dust Tight Waterproof	CE cURus TUV UR	230 VAC	Tubeaxial	36.4 m³/min	1300 CFM
ORION FANS OA280AP-22-1TB1868	50000 Hrs	Aluminum	Steel	Capacitor Thermal Overload Protector (TOP)	89 mm	Ball		73 dB(A)	0.75 in H2O	186.8 Pa	210 W	280 mm	280 mm	7.4 lbs	3.4 kg	3200 RPM	IP68 - Dust Tight Waterproof	CE cURus TUV UR	230 VAC	Tubeaxial	36.4 m³/min	1300 CFM	2
ORION FANS OA280AP-11-1WB1869K	50000 Hrs	Aluminum	Steel	Capacitor Thermal Overload Protector (TOP)	89 mm	Ball	2 Wire Leads	73 dB(A)	0.75 in H2O	186.8 Pa	210 W	280 mm	280 mm	7.4 lbs	3.4 kg	3200 RPM	IP69K	CE cURus TUV UR	115 VAC	Tubeaxial	36.4 m³/min	1300 CFM
ORION FANS OA280AP-22-1WB1869K	50000 Hrs	Aluminum	Steel	Capacitor Thermal Overload Protector (TOP)	89 mm	Ball	2 Wire Leads	73 dB(A)	0.75 in H2O	186.8 Pa	210 W	280 mm	280 mm	7.4 lbs	3.4 kg	3200 RPM	IP69K	CE cURus TUV UR	230 VAC	Tubeaxial	36.4 m³/min	1300 CFM
ORION FANS OA280AP-22-1TB1869K	50000 Hrs	Aluminum	Steel	Capacitor Thermal Overload Protector (TOP)	89 mm	Ball		73 dB(A)	0.75 in H2O	186.8 Pa	210 W	280 mm	280 mm	7.4 lbs	3.4 kg	3200 RPM	IP69K	CE cURus TUV UR	230 VAC	Tubeaxial	36.4 m³/min	1300 CFM	2
ORION FANS OA280AP-11-1TB1869K	50000 Hrs	Aluminum	Steel	Capacitor Thermal Overload Protector (TOP)	89 mm	Ball		73 dB(A)	0.75 in H2O	186.8 Pa	210 W	280 mm	280 mm	7.4 lbs	3.4 kg	3200 RPM	IP69K	CE cURus TUV UR	115 VAC	Tubeaxial	36.4 m³/min	1300 CFM	2
ORION FANS OA280AP-11-1TB1868	50000 Hrs	Aluminum	Steel	Capacitor Thermal Overload Protector (TOP)	89 mm	Ball		73 dB(A)	0.75 in H2O	186.8 Pa	210 W	280 mm	280 mm	7.4 lbs	3.4 kg	3200 RPM	IP68 - Dust Tight Waterproof	CE cURus TUV UR	115 VAC	Tubeaxial	36.4 m³/min	1300 CFM	2
