1060455 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

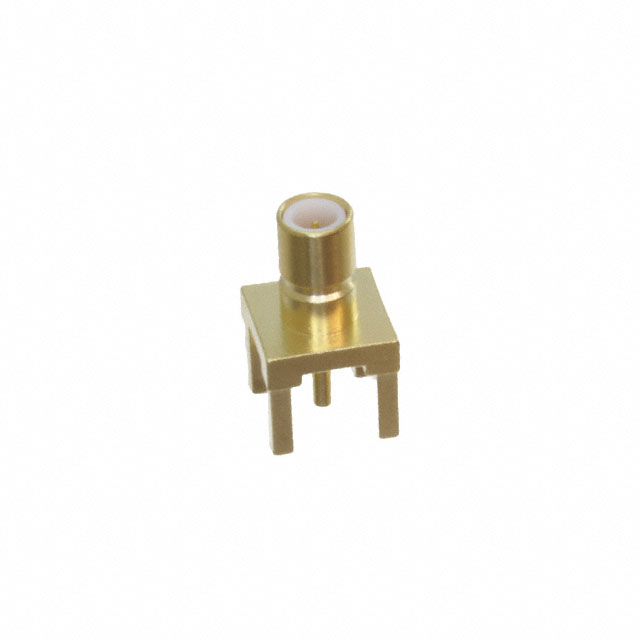

5162 5013 09,SMB PCB JACK RECP
| Part | Voltage Rating | Center Contact Plating | Body Material | Body Finish | Mating Cycles | Insertion Loss | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Fastening Type | Frequency - Max [Max] | Shield Termination | Housing Color | Center Contact Material | Number of Ports | Impedance | Contact Termination | Connector Type | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 335 V | Gold | Brass | Gold | 500 | 0.3 dB | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Through Hole | Snap-On | 4 GHz | Solder | Gold | Brass | 1 | 50 Ohms | Solder | Receptacle Male Pin | SMB |
