929700 Series

Catalog

CONN HEADER VERT 35POS 2.54MM

...

Part	Contact Length - Post [custom]	Contact Length - Post	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Mounting Type	Contact Shape	Insulation Color	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Shrouding	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Termination	Contact Material	Insulation Material	Contact Type	Number of Rows	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Fastening Type	Number of Positions	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Post	Overall Contact Length [x]	Overall Contact Length [x]
3M Electronic Specialty 929700-01-35	0.11 in	2.79 mm	Header Breakaway	-40 C	105 ░C	8.08 mm	0.318 in	Through Hole	Square	Black	0.528 in	13.42 mm	All	Unshrouded	UL94 V-0	0.1 "	2.54 mm	0.1 in	2.54 mm	Solder	Copper Alloy	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Male Pin	1	2.5 A	100 çin	2.54 çm	Tin-Lead	Push-Pull	35
3M Electronic Specialty 929700-08-01-RK			Header Breakaway	-40 C	105 ░C	8.08 mm	0.318 in	Through Hole	Square	Black	0.728 in	18.49 mm	All	Unshrouded	UL94 V-0			0.1 in	2.54 mm	Solder	Copper Alloy	Polycyclohexylenedimethylene Terephthalate (PCT)	Male Pin	1	2.5 A	200 µin	5.08 µm		Push-Pull	1	Tin	7.87 mm	0.31 in
3M Electronic Specialty 929700-08-25-RK			Header Breakaway	-40 C	105 ░C	8.08 mm	0.318 in	Through Hole	Square	Black	0.728 in	18.49 mm	All	Unshrouded	UL94 V-0	0.1 "	2.54 mm	0.1 in	2.54 mm	Solder	Copper Alloy	Polycyclohexylenedimethylene Terephthalate (PCT)	Male Pin	1	2.5 A	200 µin	5.08 µm		Push-Pull	26	Tin	7.87 mm	0.31 in
3M Electronic Specialty 929700-01-20-RK	0.11 in	2.79 mm	Header Breakaway	-40 C	105 ░C	8.08 mm	0.318 in	Through Hole	Square	Black	0.528 in	13.42 mm	All	Unshrouded	UL94 V-0	0.1 "	2.54 mm	0.1 in	2.54 mm	Solder	Copper Alloy	Polycyclohexylenedimethylene Terephthalate (PCT)	Male Pin	1	2.5 A	200 µin	5.08 µm		Push-Pull	20	Tin
3M Electronic Specialty 929700-11-23		3.18 mm	Header Breakaway	-40 C	105 ░C	8.08 mm	0.318 in	Through Hole	Square	Black			All	Unshrouded	UL94 V-0	0.1 "	2.54 mm	0.1 in	2.54 mm	Solder	Copper Alloy	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Male Pin	1	2.5 A	100 çin	2.54 çm	Tin-Lead	Push-Pull	23				0.125 in	13.8 mm	0.543 in
3M Electronic Specialty 929700-11-14		3.18 mm	Header Breakaway	-40 C	105 ░C	8.08 mm	0.318 in	Through Hole	Square	Black			All	Unshrouded	UL94 V-0	0.1 "	2.54 mm	0.1 in	2.54 mm	Solder	Copper Alloy	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Male Pin	1	2.5 A	100 çin	2.54 çm	Tin-Lead	Push-Pull	14				0.125 in	13.8 mm	0.543 in
3M Electronic Specialty 929700-06-17-RK		18.03 mm	Header Breakaway	-40 C	105 ░C	8.08 mm	0.318 in	Through Hole	Square	Black	1.128 in	28.65 mm	All	Unshrouded	UL94 V-0	0.1 "	2.54 mm	0.1 in	2.54 mm	Solder	Copper Alloy	Polycyclohexylenedimethylene Terephthalate (PCT)	Male Pin	1	2.5 A	200 µin	5.08 µm		Push-Pull		Tin			0.71 in
3M Electronic Specialty 929700-06-30-RK		18.03 mm	Header Breakaway	-40 C	105 ░C	8.08 mm	0.318 in	Through Hole	Square	Black	1.128 in	28.65 mm	All	Unshrouded	UL94 V-0	0.1 "	2.54 mm	0.1 in	2.54 mm	Solder	Copper Alloy	Polycyclohexylenedimethylene Terephthalate (PCT)	Male Pin	1	2.5 A	200 µin	5.08 µm		Push-Pull	30	Tin			0.71 in
3M Electronic Specialty 929700-01-03	0.11 in	2.79 mm	Header Breakaway	-40 C	105 ░C	8.08 mm	0.318 in	Through Hole	Square	Black	0.528 in	13.42 mm	All	Unshrouded	UL94 V-0	0.1 "	2.54 mm	0.1 in	2.54 mm	Solder	Copper Alloy	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Male Pin	1	2.5 A	100 çin	2.54 çm	Tin-Lead	Push-Pull

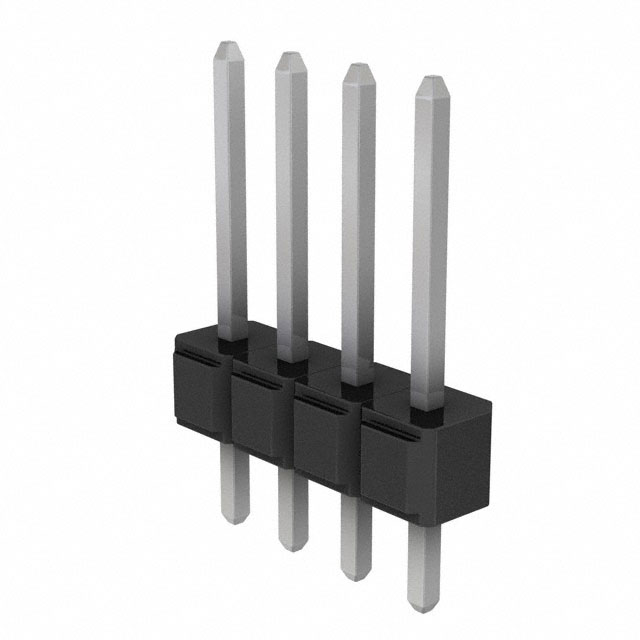

3M Electronic Specialty 929700-01-04	0.11 in	2.79 mm	Header Breakaway	-40 C	105 ░C	8.08 mm	0.318 in	Through Hole	Square	Black	0.528 in	13.42 mm	All	Unshrouded	UL94 V-0	0.1 "	2.54 mm	0.1 in	2.54 mm	Solder	Copper Alloy	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Male Pin	1	2.5 A	100 çin	2.54 çm	Tin-Lead	Push-Pull	4
