MNHU10 Series

Catalog

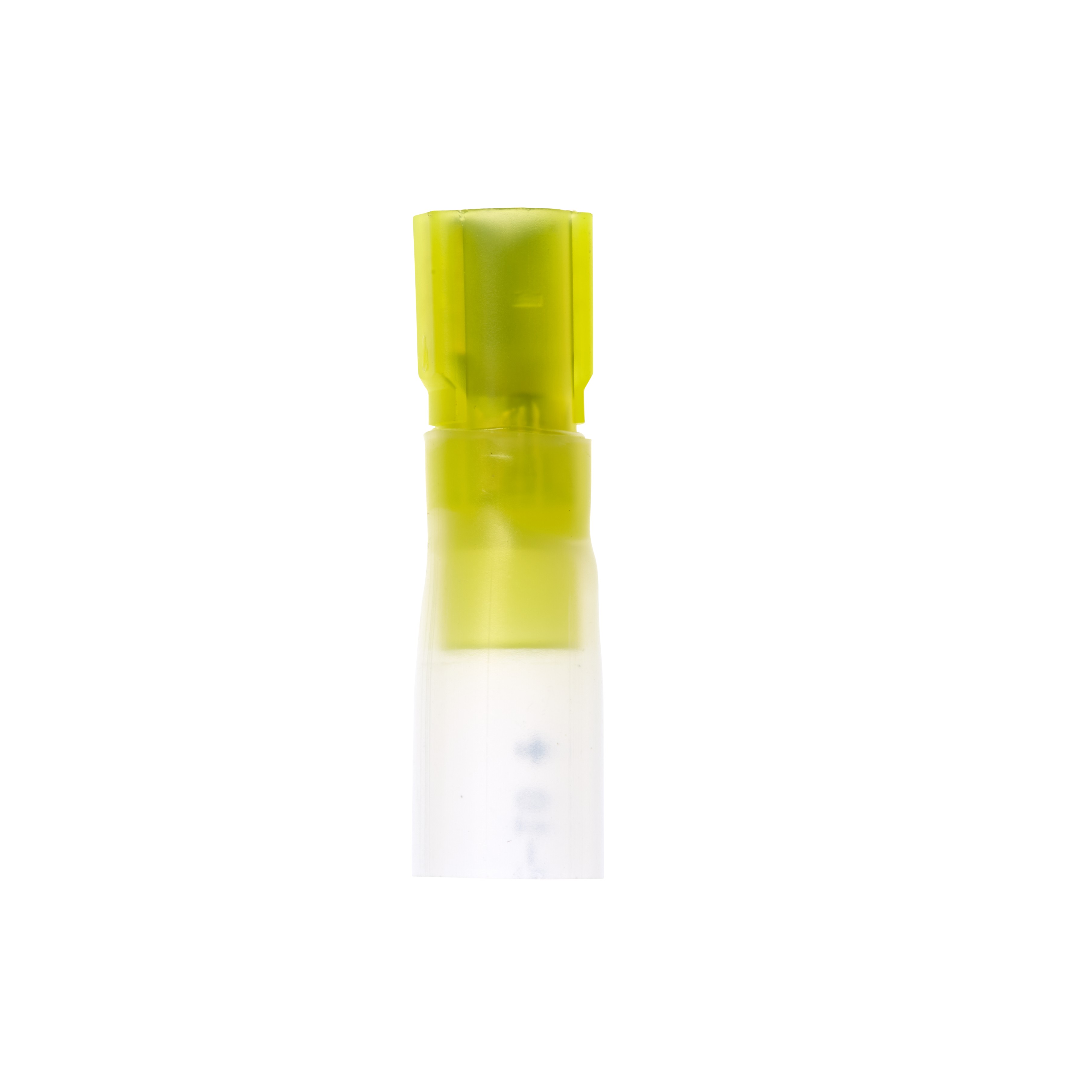

3M SCOTCHLOK FEMALE DISCONNECT, HEAT SHRINK FULLY NYLON INSULATED BUTTED SEAM MNHU10-250DFIK, 12-10 AWG

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Color	Features	Terminal Type	Contact Material	Termination	Tab Thickness	Tab Thickness	Insulation	Contact Finish	Length - Overall	Length - Overall	Tab Width [x]	Tab Width [x]	Gender
3M Electronic Specialty MNHU10-250DFIK	4.19 mm	0.165 in	Free Hanging (In-Line)	10 AWG	12 AWG	Yellow	Butted Seam	Standard	Brass	Crimp	0.81 mm	0.032 in	Fully Insulated Heat Shrink	Tin	1.2 in	30.48 mm	6.35 mm	0.25 in	Female
3M Electronic Specialty MNHU10-250DMIK			Free Hanging (In-Line)	10 AWG	12 AWG	Yellow	Butted Seam	Standard	Copper	Crimp	0.81 mm	0.032 in	Fully Insulated Heat Shrink	Tin	1.2 in	30.48 mm	6.35 mm	0.25 in	Male
3M Electronic Specialty MNHU10-250DFIX-BOTTLE			Free Hanging (In-Line)	10 AWG	12 AWG	Yellow	Butted Seam	Standard	Brass	Crimp	0.81 mm	0.032 in	Fully Insulated Heat Shrink	Tin	1.2 in	30.48 mm	6.35 mm	0.25 in	Female
