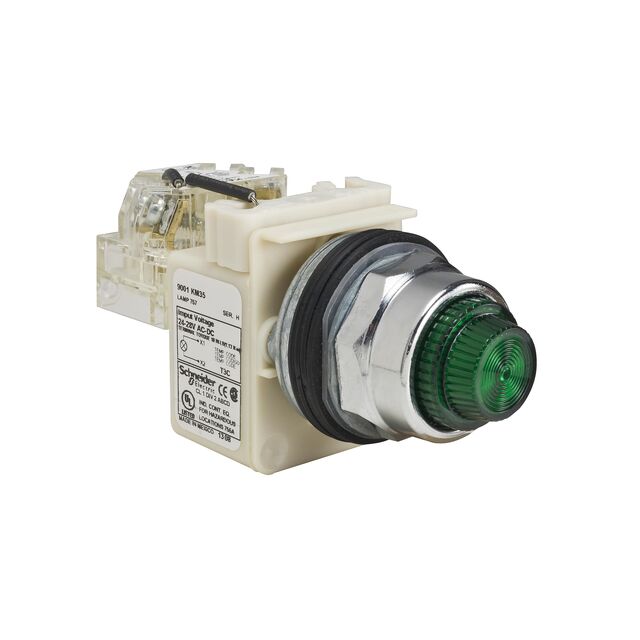

9001KT Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K
INDUSTRIAL PANEL MOUNT INDICATORS / SWITCH INDICATORS PILOTLIGHT 120VAC 30MM TYPE K
| Part | Panel Cutout Dimensions [diameter] | Panel Cutout Dimensions [diameter] | Ingress Protection | Panel Cutout Shape | Lens Transparency | Lens Style | Lens Size [diameter] | Lens Color | Ratings | Type | Voltage [Max] | Voltage [Min] | Voltage | Lamp Color | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | 30 mm | 1.18 in | NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 6 | Round | Fresnel | Round with Flat Top | 30 mm | Green | AC | Incandescent | 120 V | 110 V | |||
 SCHNEIDER ELECTRIC | 30 mm | 1.18 in | NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 6 | Round | Fresnel | Round with Flat Top | 30 mm | Green | Incandescent | 28 V | 24 V | ||||
 SCHNEIDER ELECTRIC | 30 mm | 1.18 in | NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 6 | Round | Incandescent | 120 V | |||||||||
 SCHNEIDER ELECTRIC | 30 mm | 1.18 in | NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 6 | Round | LED | 120 V | Yellow | ||||||||
 SCHNEIDER ELECTRIC | 30 mm | 1.18 in | NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 6 | Round | Round with Flat Top | 30 mm | Green | LED | 120 V | Green | |||||
 SCHNEIDER ELECTRIC | 30 mm | 1.18 in | 1 12 13 2 3 4 6 IP66 NEMA 3R | Round | Fresnel | Round with Flat Top | 30 mm | Green | AC | LED | 120 V | 110 V | Green | Screw Terminal |
