EPL.01 Series
Manufacturer: LEMO
Beta
⌘K

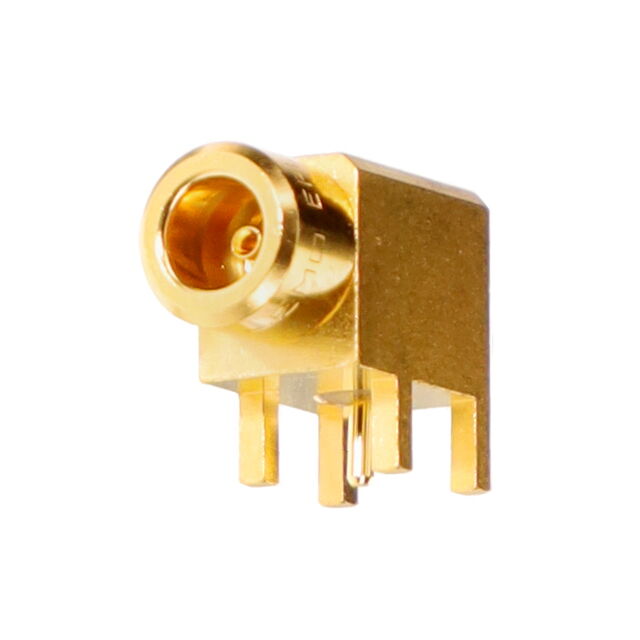

CONN MINI COAX RCP R/A 50OHM PCB
| Part | Body Finish | Body Material | Voltage Rating | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Center Contact Plating | Fastening Type | Shield Termination | Connector Type | Impedance | Center Contact Material | Mounting Type | Connector Style | Housing Color | Ingress Protection | Contact Termination | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | Gold | Brass | 300 VDC | 1000 | -55 C | 230 °C | Polyetheretherketone (PEEK) | Gold | Push-Pull | Solder | Receptacle Female Socket | 50 Ohms | Bronze | Right Angle Through Hole | Miniature Coaxial | Gold | IP50 - Dust Protected | Solder | 1 |
