PMC-05 Series
Manufacturer: Delta Electronics
Beta
⌘K
AC/DC CONVERTER 5V 50W
| Part | Approval Agency | Type | Applications | Voltage - Output 1 | Features | Current - Output 1 | Mounting Type | Standard Number | Number of Outputs | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Voltage - Isolation | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

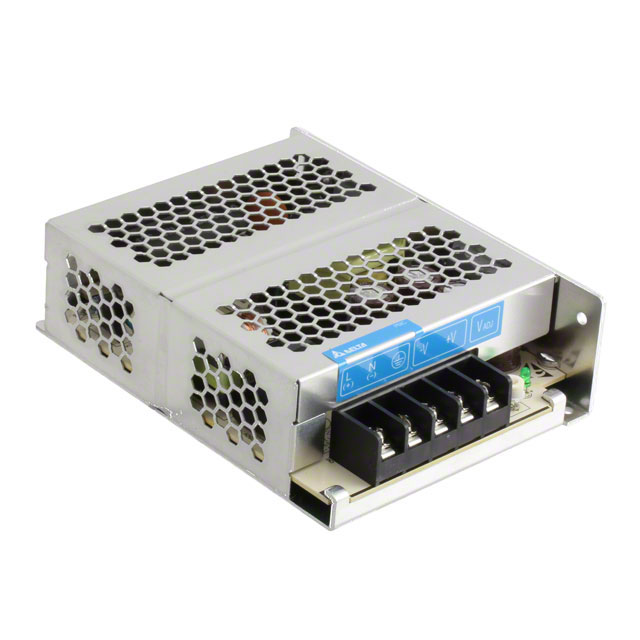

 Delta Electronics | CB Scheme CE EAC EN SIQ UL | Enclosed | ITE (Commercial) | 5 V | Adjustable Output DC Input Capable Universal Input | 10 A | Chassis Mount | 50581 55024 55032 60950-1 61000-3-2 61000-3-3 | 1 | 128 mm | 97 mm | 3.82 in | 5.04 " | 38 mm | 1.5 in | 70 °C | -20 °C | 50 W | 3000 V | 79 % |
 Delta Electronics | CB CCC CE cURus SIQ | Enclosed | ITE (Commercial) | 5 V | Adjustable Output DC Input Capable Universal Input | 7 A | Chassis Mount | 1 | 98 mm | 97 mm | 3.82 in | 3.86 " | 38 mm | 1.5 in | 70 °C | -20 °C | 35 W | 3000 V | 79 % | |

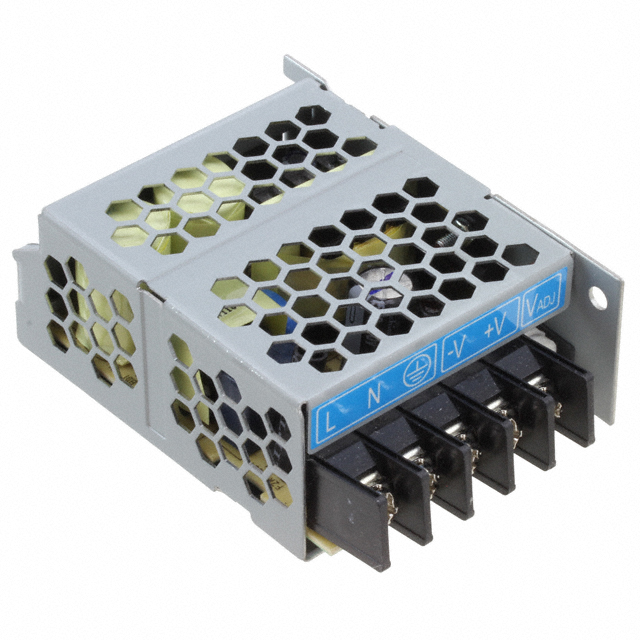

 Delta Electronics | CB Scheme CE EAC EN SIQ UL | Enclosed | ITE (Commercial) | 5 V | Adjustable Output DC Input Capable Universal Input | 3 A | Chassis Mount | 50581 55024 55032 60950-1 61000-3-2 61000-3-3 | 1 | 77 mm | 51 mm | 2.01 " | 3.03 in | 28 mm | 1.1 in | 70 °C | -20 °C | 15 W | 3000 V | 80 % |
