160063 Series
Manufacturer: Molex
Beta
⌘K

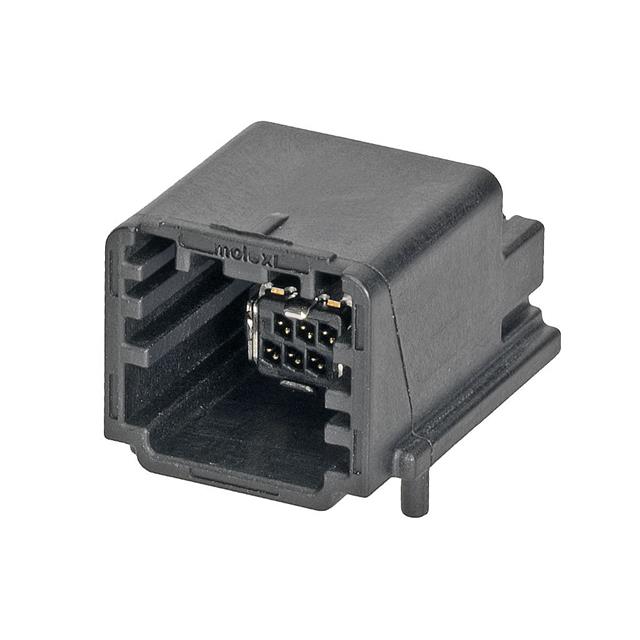

HSAUTOLINK II UNSEALED HEADER, RIGHT-ANGLE, 6 CIRCUITS, KEY A, BLACK
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Rows [custom] | Contact Finish - Post | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Style | Number of Positions Loaded | Current Rating (Amps) | Contact Shape | Voltage Rating | Shrouding | Features | Insulation Material | Connector Type | Contact Material | Termination | Contact Type | Number of Positions | Contact Finish - Mating | Insulation Height [z] | Insulation Height [z] | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 2.5 µm | 98.4 µin | 2 | Tin | Black | -40 C | 105 ░C | Board to Cable/Wire | All | 1.5 A | Rectangular | 36 VDC | Shrouded - 4 Wall | Board Guide Solder Retention | Glass Filled Syndiotactic Polystyrene (SPS) | Header | Copper Alloy | Solder | Male Pin | 6 | Gold | 12.6 mm | 0.496 in | UL94 HB | 16 Áin | 0.41 Ám | 1.27 mm | 0.05 in | Right Angle Through Hole |
 Molex | |||||||||||||||||||||||||||||
Molex | |||||||||||||||||||||||||||||
Molex | |||||||||||||||||||||||||||||
Molex |
