KBPC Series

Catalog

BRIDGE RECTIFIERS BRIDGE, SINGLE PHASE, KBPC, 1600V, 35A, 150C

Part	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Package / Case	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Diode Type	Voltage - Peak Reverse (Max)	Supplier Device Package	Mounting Type	Current - Reverse Leakage @ Vr	Voltage - Peak Reverse (Max) [Max]	Voltage - Forward (Vf) (Max) @ If [Max]
Diotec Semiconductor KBPC3516WP	35 A	1.1 V	4-Square KBPC WP	Standard	-50 °C	150 °C	Single Phase	1.6 kV	KBPC WP	Through Hole	10 µA

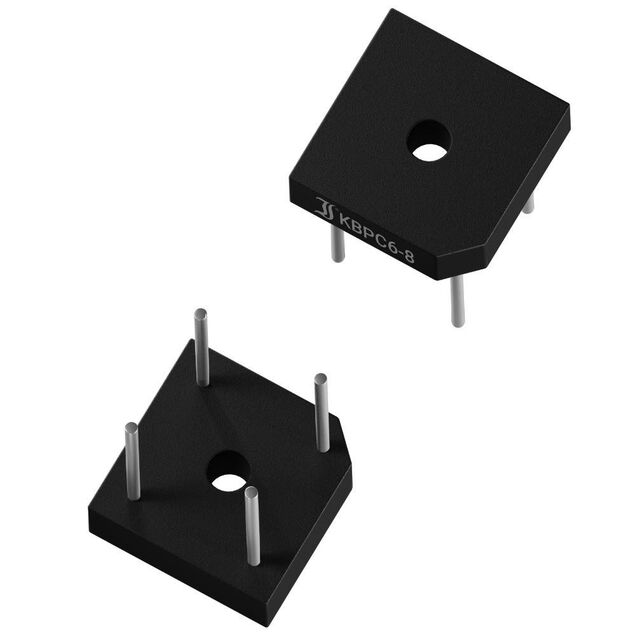

Diotec Semiconductor KBPC810	5 A		4-Square KBPC-8	Standard	-50 °C	150 °C	Single Phase		KBPC8	Through Hole	5 µA	1 kV	1.2 V

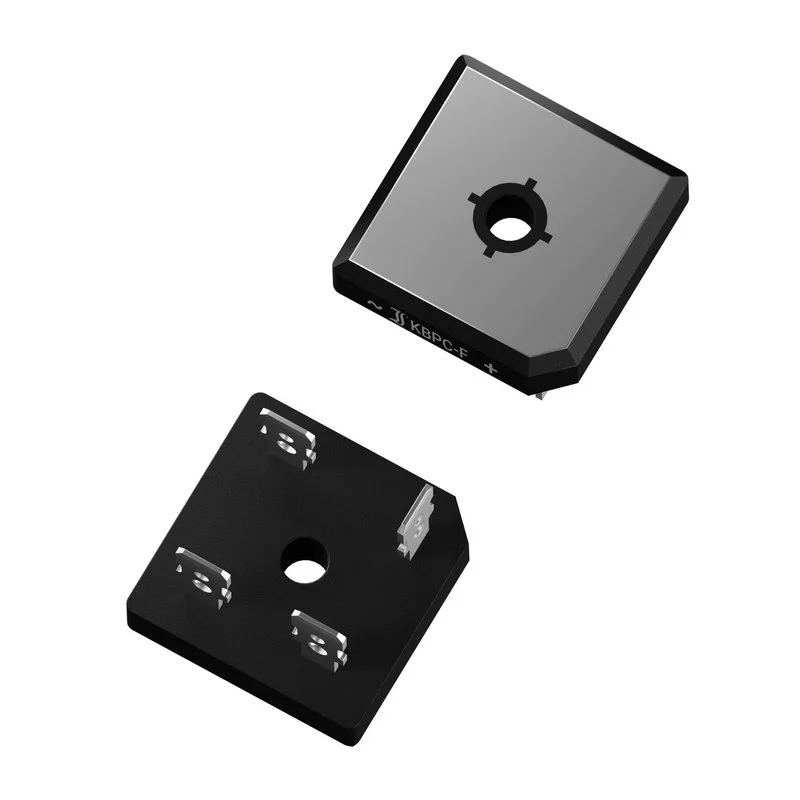

Diotec Semiconductor KBPC10/15/2506FP	25 A	1.2 V	4-Square KBPC FP	Standard	-50 °C	150 °C	Single Phase		KBPC FP	Chassis Mount	10 µA	600 V
Diotec Semiconductor KBPC600	3.8 A	1.2 V	4-Square KBPC-6	Standard	-50 °C	150 °C	Single Phase		KBPC6	Through Hole	5 µA	50 V
Diotec Semiconductor KBPC5002FP	50 A	1.1 V	4-Square KBPC35	Standard	-50 °C	150 °C	Single Phase	200 V	KBPC35	Chassis Mount	10 ÁA
Diotec Semiconductor KBPC3504FP	35 A	1.1 V	4-Square KBPC35	Standard	-50 °C	150 °C	Single Phase		KBPC35	Chassis Mount	10 µA	400 V
Diotec Semiconductor KBPC10/15/2508WP	25 A	1.2 V	4-Square KBPC WP	Standard	-50 °C	150 °C	Single Phase	800 V	KBPC WP	Through Hole	10 µA
